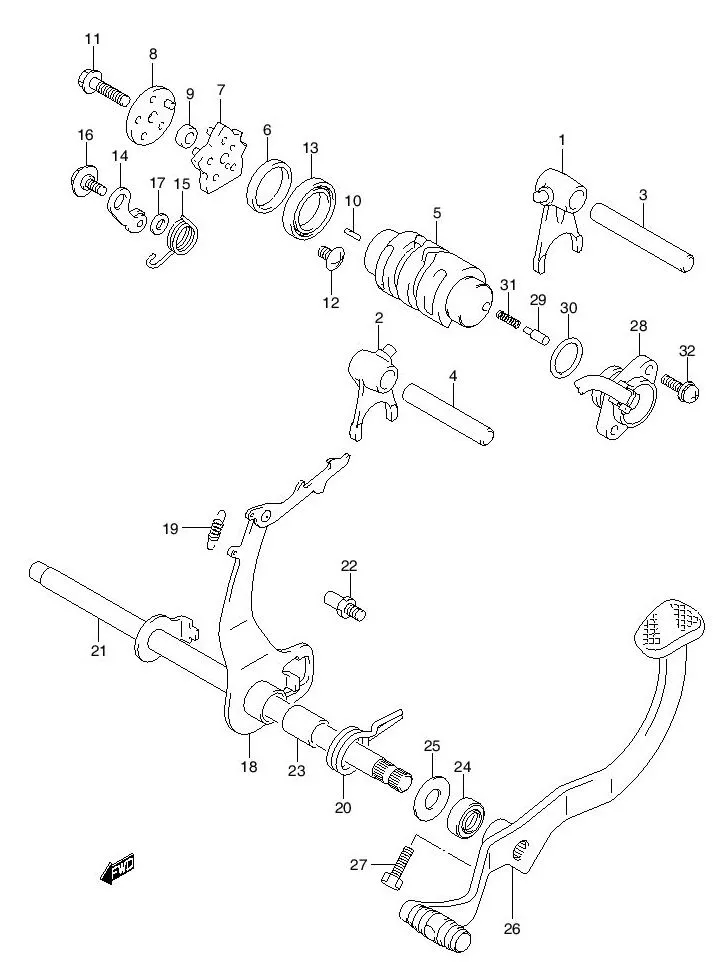

FIG.16A GEAR SHIFTING FD125XRM

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 25211B23F10N000	FORK, GEAR SHIFT NO.1	1	-
2	DISCONTINUE SUB: 25221B23F10N000	FORK, GEAR SHIFT NO.2	1	-
3	DISCONTINUE SUB: 25411B13A10N000	SHAFT, SHIFT FORK NO.1	1	-
4	DISCONTINUE SUB: 25421B35420N000	SHAFT, SHIFT FORK NO.2	1	-
5	25311-20G21-000 SUB: 25311-20G10-000	CAM, GEAR SHIFT	1	Rp203.000
6	DISCONTINUE SUB: 25312-20G00-000	SPACER, GEAR SHIFT CAM	1	-
7	DISCONTINUE SUB: 25380-20G10-000	PLATE, GEAR SHIFT	1	-
8	25390-20G00-000	STOPPER, SHIFT CAM PIN	1	Rp77.500	6.5X28X1.6
9	09180-06339-000 SUB: 09180B06339N000	SPACER, PIN STOPPER	1	Rp3.500	6.5X12X5
10	09261-03002-000 SUB: 09261B03002N000	PIN, CAM STOPPER (3X9.8)	2	Rp2.500
11	01547-0625A-000 SUB: 01547B06253N000	BOLT, SHIFT CAM PIN	1	Rp6.500
12	02142-0610A-000 SUB: 02142-06103-000	SCREW, GEAR SHIFT CAM	1	Rp3.500
13	08110-68050-000 SUB: 08110B68050N000	BEARING, GEAR SHIFT CAM	1	Rp176.000
14	25350-20G00-000	STOPPER, SHIFT CAM	1	Rp70.500
15	DISCONTINUE SUB: 25355B20G00N000	SPRING. SHIFT CAM	1	-
16	09111-06041-000 SUB: 09111B06041N000	BOLT, SHIFT CAM (6X14.3)	1	Rp4.000
17	08211-06121-000 SUB: 08211B06121N000	WASHER, SHIFT CAM	1	Rp7.500
18	25520-20G01-000 SUB: 25520-20G00-000	ARM, GEAR SHIFT	1	Rp79.500
19	25527-20G00-000	SPRING, SHIFT PAWL	1	Rp6.500
20	09444-26027-000	SPRING, SHIFT ARM RETURN	1	Rp10.500
21	25510-20G20-000 SUB: 25510B20G20N000	SHAFT, GEAR SHIFT	1	Rp148.000
22	25671-36A00-000	STOPPER, SHIFT ARM	1	Rp24.000
23	09180-12036-000	SPACER, SHIFT ARM (12X16X20)	1	Rp64.000
24	09283-12010-000 SUB: 09285-12002L000	SEAL, SHIFT SHAFT OIL	1	Rp10.000	12X22X9
25	08211-12261-000	WASHER, SHIFT SHAFT	1	Rp12.000
26	25600-20G00-Z00 SUB: 25600B20G00NZ00	LEVER ASSY, GEAR SHIFT	1	Rp99.000
27	01500-0620B-000 SUB: 01500-06203-000	BOLT, SHIFT LEVER	1	Rp3.000
28	37720-20G10-000 SUB: 37720B20G10N000	BASE ASSY, GEAR SHIFT	1	Rp42.500
29	09209-05011-000 SUB: 09209B05011N000	CONTACT, GEAR POSITION	1	Rp5.500
30	09280-21008-000 SUB: 09280-21008L000	O RING, GEAR SHIFT	1	Rp2.500	(D:2.5,ID:21.0)
31	09440-04010-000 SUB: 09440B04010N000	SPRING, GEAR SHIFT	1	Rp3.000
32	02112-7516A-000 SUB: 02112B75163N000	SCREW, GEAR SHIFT	2	Rp7.000
