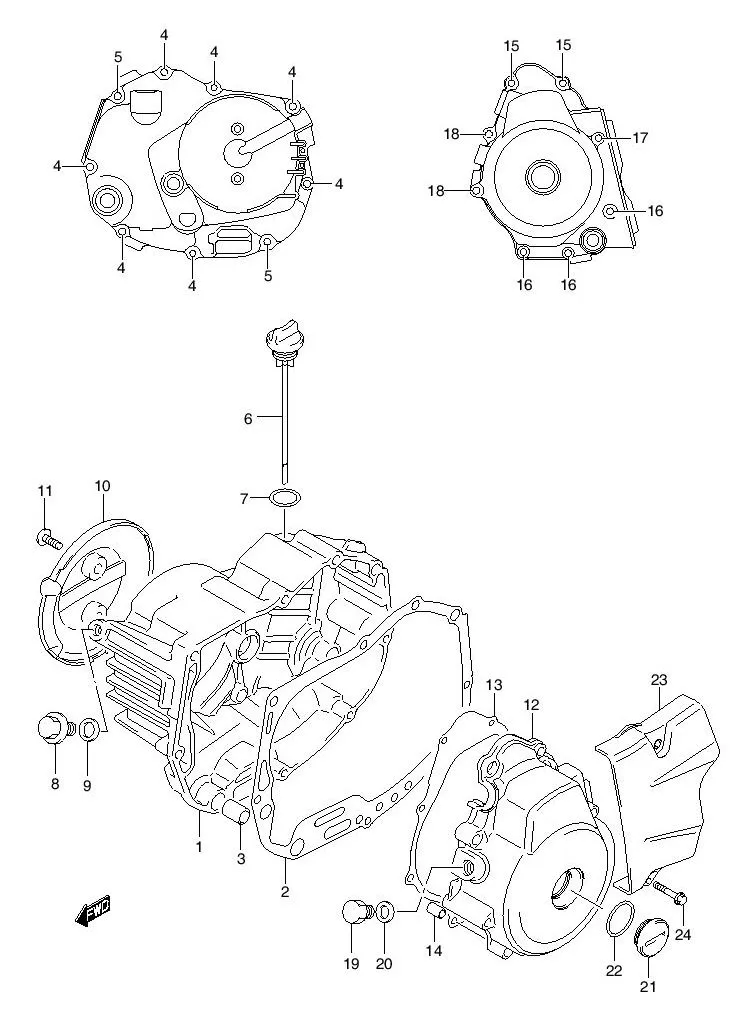

FIG.5 CRANKCASE COVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 11341B20GA0N000	COVER, CLUTCH	1	-	FD125XRM
1-1	DISCONTINUE SUB: 11341B20G00N000	COVER, CLUTCH	1	-	FD125XRD ; FD125XSD
2	11482-20G00-001 SUB: 11482B20G00N000	GASKET, CLUTCH COVER	1	Rp18.500
3	04211-09149-000 SUB: 04211B09149N000	PIN	2	Rp3.000
4	01547-0630A-000 SUB: 01547B06303N000	SCREW	7	Rp6.500
5	01547-0640B-000 SUB: 01547B06403N000	SCREW	2	Rp7.000
6	11971-09403-000 SUB: 11971B09403N000	GAUGE, OIL LEVEL	1	Rp46.000
7	09280-17003-000 SUB: 09280-17003L000	O RING	1	Rp2.000
8	01550-0812A-000 SUB: 01550B08123N000	PLUG, OIL CHECK	1	Rp3.500
9	09168-08015-000 SUB: 09168B08015N000	GASKET	1	Rp2.000
10-1	DISCONTINUE SUB: 11383B20G00N000	CAP, CLUTCH COVER	1	-	FD125XRD ; FD125XSD
10-2	DISCONTINUE SUB: 11383B20GA0N000	CAP, CLUTCH COVER	1	-	FD125XRM
11	02142-0508A-000 SUB: 02142-05083-000	SCREW, CAP	2	Rp3.500	FD125XRD ; FD125XSD
12-2	DISCONTINUE SUB: 11351B20G30N000	COVER, MAGNETO	1	-	FD125XRM
12-1	DISCONTINUE SUB: 11351B20G00N000	COVER, MAGNETO	1	-	FD125XRD ; FD125XSD
13	11483-20G00-001 SUB: 11483B20G00N000	GASKET, MAGNETO COVER	1	Rp13.000
14	04211-09149-000 SUB: 04211B09149N000	PIN	2	Rp3.000
15	01547-0620B-000 SUB: 01547-06203L000	SCREW	2	Rp6.500
16	01547-0630A-000 SUB: 01547B06303N000	SCREW	3	Rp6.500
17	01547-0640B-000 SUB: 01547B06403N000	SCREW	1	Rp7.000
18	01547-0660A-000 SUB: 01547B06603N000	SCREW	2	Rp7.500
19	09247-12104-000	PLUG, TOP (12X10)	1	Rp17.500
20	09168-12002-000 SUB: 09168B12002N000	GASKET (12.1X16.2X1.2)	1	Rp10.000
21-1	DISCONTINUE SUB: 09259B26014N000	PLUG, HOLE	1	-	FD125XRD ; FD125XSD
21-2	09259-26015-000	PLUG, HOLE	1	Rp11.000	FD125XRM
22	09280-22008-000 SUB: 09280-22008L000	O RING	1	Rp3.500
23-1	DISCONTINUE SUB: 11361B23F01N000	COVER, ENGINE SPROCKET	1	-	FD125XRD ; FD125XSD
23-2	DISCONTINUE SUB: 11361B23FA0N000	COVER, ENGINE SPROCKET	1	-	FD125XRM
24	01547-0630A-000 SUB: 01547B06303N000	SCREW	2	Rp6.500
