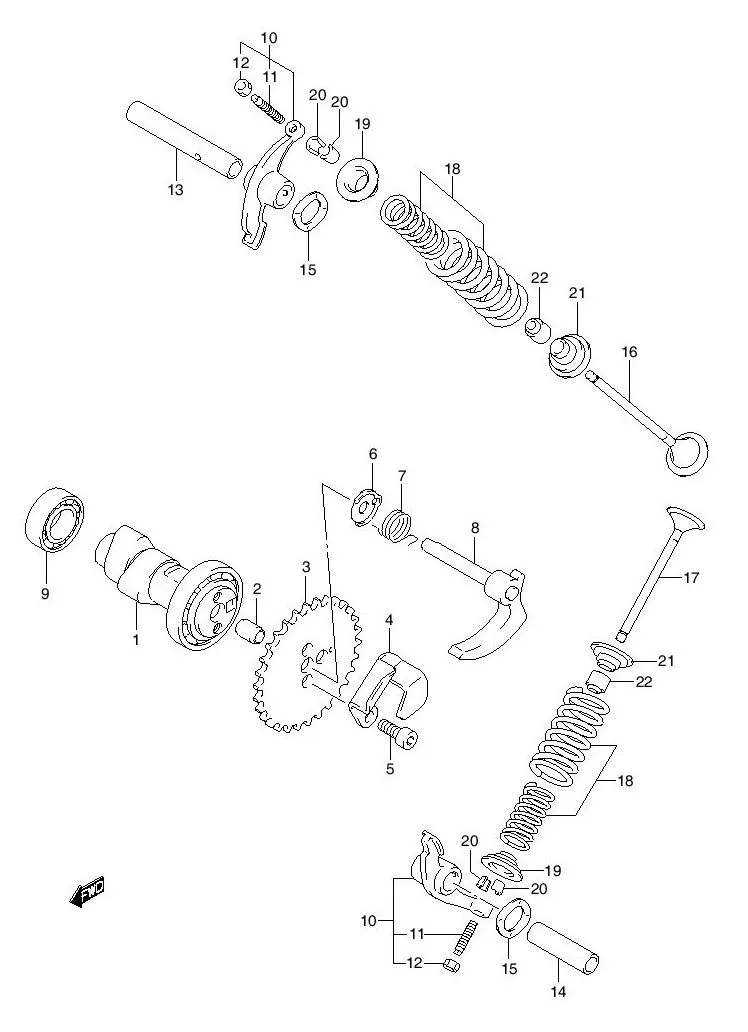

FIG.8 CAMSHAFT/VALVE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	12710-20G30-000 SUB: 12710B20G30N000	CAMSHAFT	1	Rp672.500	FD125XRM
1-1	DISCONTINUE SUB: 12710B20G00N000	CAMSHAFT	1	-	FD125XRD ; FD125XSD
2	09206-08008-000 SUB: 09206B08008N000	•PIN	1	Rp4.000
3	DISCONTINUE SUB: 12741B20G00N000	•SPROCKET, CAMSHAFT	1	-
4	12954-09G10-000 SUB: 12954B09G10N000	•WASHER, SPROCKET	1	Rp25.000
5	09106-05028-000 SUB: 09106B05028N000	•BOLT	2	Rp6.500
6	12955-20G00-000	•WASHER, DECOMP CAMSHAFT	1	Rp8.000
7	12725-20G00-000 SUB: 12725B20G00N000	•SPRING, DECOMP CAM	1	Rp3.000
8	DISCONTINUE SUB: 12951B20G00N000	•CAM, DECOMPRESSION	1	-
9	DISCONTINUE SUB: 09262B15026N000	BEARING	1	-
10	12840-20G20-000 SUB: 12840-20G00-000	ARM, VALVE ROCKER	2	Rp127.500
11	12842-49201-000 SUB: 12842-09G00-000	•SCREW, ADJUSTING	2	Rp30.500
12	12843-27A00-000 SUB: 12843-09G00-000	•NUT, ADJUSTING	2	Rp19.000
13	12861-09D00-000 SUB: 12861B09D00N000	SHAFT, ROCKER ARM INTAKE	1	Rp16.500
14	12871-30A00-000 SUB: 12871B30A00N000	SHAFT, ROCKER ARM EXHAUST	1	Rp14.500
15	09164-10017-000 SUB: 09164B10012N000	WASHER	2	Rp10.500
16	12911-09G20-000 SUB: 12911B09G20N000	VALVE, INTAKE	1	Rp45.000
17	12912-09G20-000 SUB: 12912B20G20N000	VALVE, EXHAUST	1	Rp66.500
18-1	12921-09G00-000 SUB: 12921B09G00N000	SPRING SET, VALVE	2	Rp12.000	FD125XRD ; FD125XSD
18-2	12921-20G00-000	SPRING SET, VALVE	1	Rp21.000	FD125XRM
19	12931-09G00-000 SUB: 12931B09G00N000	RETAINER, VALVE SPRING	2	Rp13.000
20	12932-09G00-000	COTTER, VALVE	4	Rp4.500
21	12933-09G00-000 SUB: 12933B09G00N000	SEAT, SPRING	2	Rp9.000
22-1	09289-05008-000 SUB: 09289-05008L000	OIL SEAL	2	Rp6.500	FD125XRD ; FD125XSD
22-2	09289-05011-000	OIL SEAL	2	Rp40.500	FD125XRM
