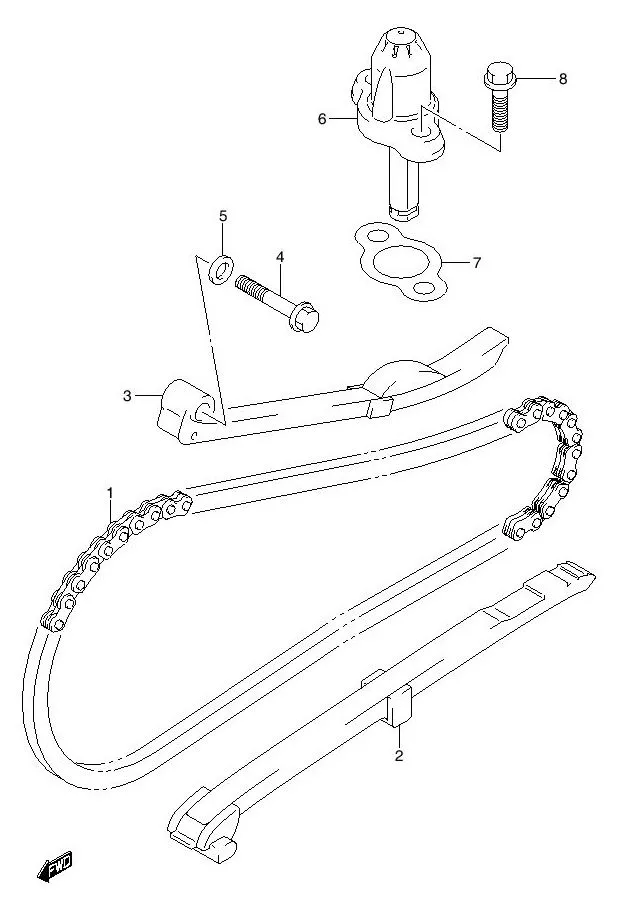

FIG.9 CAM CHAIN

FIG.9 CAM CHAIN

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12760-20G11-000 SUB: 12760B20G10N000	CHAIN, CAMSHAFT DRIVE	1	Rp100.000
2	12771-20G00-000 SUB: 12771B20G00N000	GUIDE, CAM CHAIN	1	Rp41.500
3	12811-09G00-000 SUB: 12811B09G00N000	TENSIONER, CAM CHAIN	1	Rp41.500
4	09103-06247-000 SUB: 09103B06247N000	BOLT, CAM CHAIN TENSIONER	1	Rp4.000
5	09168-06004-000 SUB: 09168B06004N000	GASKET	1	Rp2.500
6	12830-09G00-000 SUB: 12830B09G00N000	ADJUSTER ASSY, TENSIONER	1	Rp253.000
7	12837-20G00-001 SUB: 12837B20G00N000	GASKET, TENSIONER ADJUSTER	1	Rp3.000
8	01547-0620B-000 SUB: 01547-06203L000	BOLT (6X20)	2	Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
