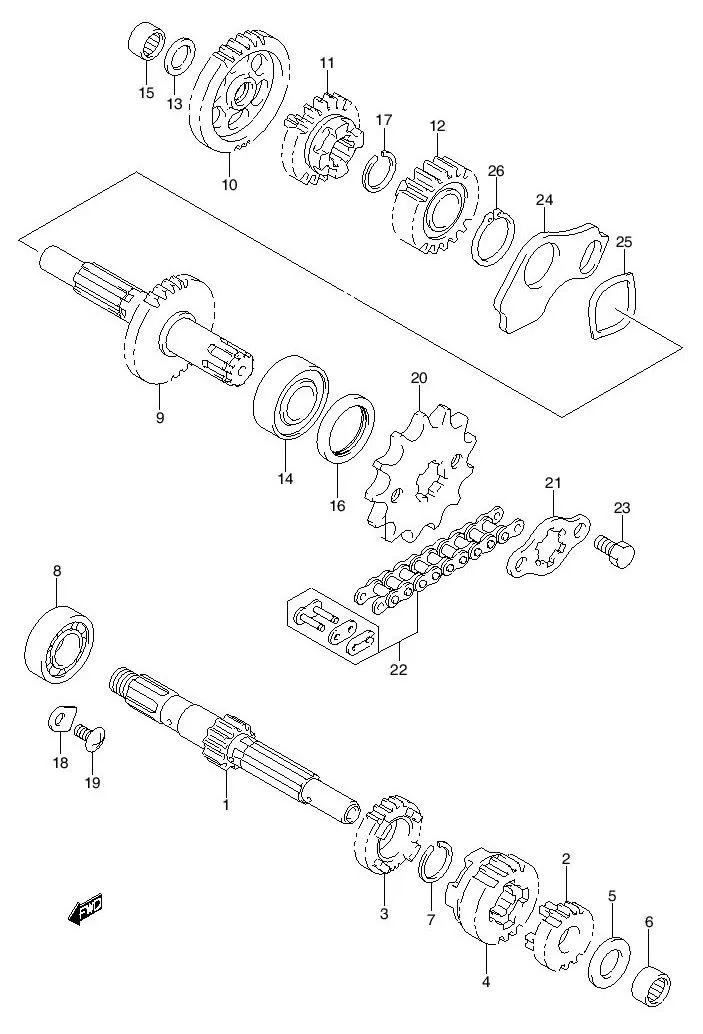

FIG.15 TRANSMISSION

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 24120B20G00N000	SHAFT, COUNTER (NT:11)	1	-
2	24221-20G00-000 SUB: 24221B20G00N000	GEAR, 2ND DRIVE (NT:14)	1	Rp52.000
3	24231-20G00-000 SUB: 24231B20G00N000	GEAR, 3RD DRIVE (NT:17)	1	Rp52.000
4	24241-20G00-000 SUB: 24241B20G00N000	GEAR, 4TH DRIVE (NT:19)	1	Rp78.500
5	DISCONTINUE SUB: 09160B13006N000	WASHER, 2ND DRIVE	1	-	13X24X1
6	09263-13003-000 SUB: 09263B13003N000	BEARING, COUNTER LH	1	Rp27.000	13X19X14
7	09380-17007-000 SUB: 09380B17007N000	CIRCLIP, 3RD DRIVE	1	Rp11.000
8	08110-62030-000 SUB: 08110-62030L000	BEARING, COUNTER RH	1	Rp33.500
9-1	DISCONTINUE SUB: 24130B20G00N000	SHAFT, DRIVE (NT:25)	1	-	FD125XSD
9-2	DISCONTINUE SUB: 24130B20G10N000	SHAFT, DRIVE (NT:25)	1	-	FD125XRM
10	24311-20G00-000 SUB: 24311B20G00N000	GEAR, 1ST DRIVEN (NT:25)	1	Rp63.000
11	24331-20G00-000 SUB: 24331B20G00N000	GEAR, 3RD DRIVEN (NT:22)	1	Rp81.000
12	DISCONTINUE SUB: 24341B20G00N000	GEAR, 4TH DRIVEN (NT:20)	1	-
13	DISCONTINUE SUB: 09160B13006N000	WASHER, 1ST DRIVEN	1	-	13X24X1
14	08110-62030-000 SUB: 08110-62030L000	BEARING, DRIVE SHAFT LH	1	Rp33.500
15	09263-13003-000 SUB: 09263B13003N000	BEARING, DRIVE SHAFT RH	1	Rp27.000	13X19X14
16	09283-17025-000 SUB: 09283-17025L000	SEAL, DRIVE SHAFT	1	Rp7.000	17X30X7
17	09380-17007-000 SUB: 09380B17007N000	CIRCLIP, 4TH DRIVEN	1	Rp11.000
18	24741-20A10-000 SUB: 24741B20A10N000	RETAINER, COUNTERSHAFT BRG	1	Rp3.500
19	02112-0612A-000 SUB: 02112B06123N000	SCREW, COUNTER SHAFT	1	Rp3.500
20	27511-09G10-000 SUB: 27511B09G00N000	SPROCKET, ENGINE (NT:14)	1	Rp53.500
21	27512-09G00-000 SUB: 27512B09G00N000	PLATE, ENGINE SPROCKET	1	Rp8.500
22	27600-20940-100 SUB: 27600B20940N100	CHAIN ASSY, DRIVE (D.I.D 428)	1	Rp82.000
23	01500-0610A-000 SUB: 01500-06103-000	BOLT, ENGINE SPROCKET	2	Rp6.500
24	DISCONTINUE SUB: 25361B23F00N000	PLATE, ROTARY STOP	1	-	FD125XRD ; FD125XSD
25	DISCONTINUE SUB: 09164B25002N000	WASHER, ROTARY WAVE	1	-	FD125XRD ; FD125XSD
26	DISCONTINUE SUB: 08331B31256N000	CIRCLIP	1	-	FD125XRD ; FD125XSD
