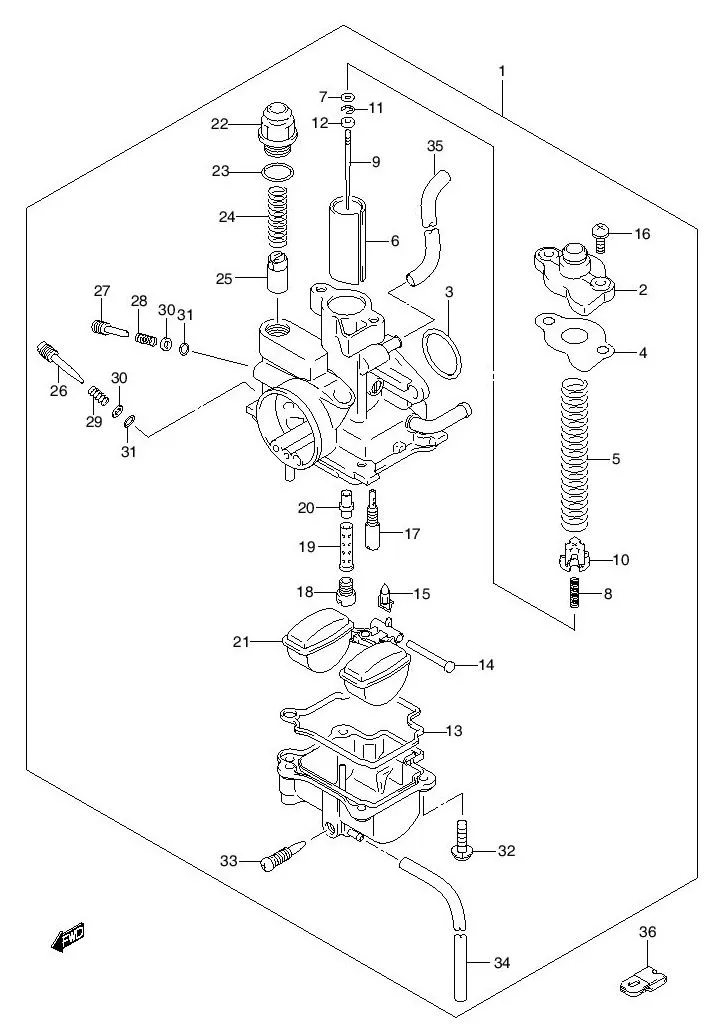

FIG.10 CARBURETOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	13200-20GA0-000 SUB: 13200B20GA0N000	CARBURETOR	1	Rp537.000	FD125XRM
1-1	13200-20G20-000 SUB: 13200B20G20N000	CARBURETOR	1	Rp623.000	FD125XRD ; FD125XSD
2	DISCONTINUE SUB: 13261B09G20N000	•CAP ASSY, TOP	1	-
3	DISCONTINUE SUB: 13278B29C50N000	•O RING	1	-
4	13249-30A10-000 SUB: 13249B30A10N000	•GASKET	1	Rp9.000
5	DISCONTINUE SUB: 13573B20G20N000	•SPRING	1	-
6	13551-20G20-000 SUB: 13551B20G20N000	•PISTON VALVE	1	Rp65.000
7	13382-23F00-000 SUB: 13382B23F00N000	•WASHER	1	Rp8.500
8	13481-23F00-000 SUB: 13481B23F00N000	•SPRING	1	Rp8.500
9	13383-20G20-000 SUB: 13383B20G20N000	•NEEDLE, JET (4PA11-2)	1	Rp27.000
10	13418-12F40-000 SUB: 13418B12F40N000	•HOLDER	1	Rp12.500
11	13533-98410-000 SUB: 13533B98410N000	•E RING	1	Rp6.000
12	13387-23F00-000 SUB: 13387B23F00N000	•RING	1	Rp8.500
13	13258-30A00-000 SUB: 13258B30A00N000	•PACKING	1	Rp9.000
14	13254-20010-000 SUB: 13254B20010N000	•PIN	1	Rp7.500
15	13372-09G10-000 SUB: 13372B09G10N000	•NEEDLE ASSY	1	Rp30.000
16	DISCONTINUE SUB: 02112B34123N000	•SCREW	2	-
17	09492-12003-000 SUB: 09492B12003N000	•JET, PILOT (#12.5)	1	Rp19.000
18	09491-97009-000 SUB: 09491B97009N000	•JET, MAIN (#92.5)	1	Rp11.500
19	13385-09G20-000 SUB: 13385B09G10N000	•PIPE	1	Rp37.000
20	13341-20G00-000 SUB: 13341B20G00N000	•JET, NEEDLE (E-0M)	1	Rp34.500
21	13250-30D00-000 SUB: 13250B30D00N000	•FLOAT ASSY	1	Rp32.500
22	13247-09G10-000 SUB: 13247B09G10N000	•SCREW, DRAIN	1	Rp21.000
23	13418-43410-000 SUB: 13418B43410N000	•HOLDER, GUIDE	1	Rp7.500
24	13417-01010-000 SUB: 13417B01010N000	•SPRING	1	Rp6.500
25	13411-01010-000 SUB: 13411B01010N000	•PLUNGER ASSY	1	Rp13.000
26	DISCONTINUE SUB: 13267B09G20N000	•ADJUSTER	1	-
27	13267-20G20-000 SUB: 13267B20G00N000	•ADJUSTER	1	Rp9.500
28	13268-35010-000 SUB: 13268B35010N000	•SPRING	1	Rp5.500
29	DISCONTINUE SUB: 13268B09G20N000	•SPRING	1	-
30	13291-29900-000 SUB: 13291B29900N000	•WASHER	2	Rp6.500
31	13295-29900-000 SUB: 13295B29900N000	•O RING	2	Rp8.000
32	13601-04148-000 SUB: 13601B04148N000	•SCREW	4	Rp8.000
33	09355-25001-600 SUB: 09355-25705-600	•HOSE	1	Rp51.000	L:600!225
34	09352-40703-230 SUB: 09352B40703N600	•HOSE	1	Rp11.000	L:600!350
35-1	DISCONTINUE SUB: 09403-06404-000	CLAMP, OVER FLOW HOSE	1	-
35-2	DISCONTINUE SUB: 13827B09G00N000	CLAMP, OVER FLOW HOSE	1	-
