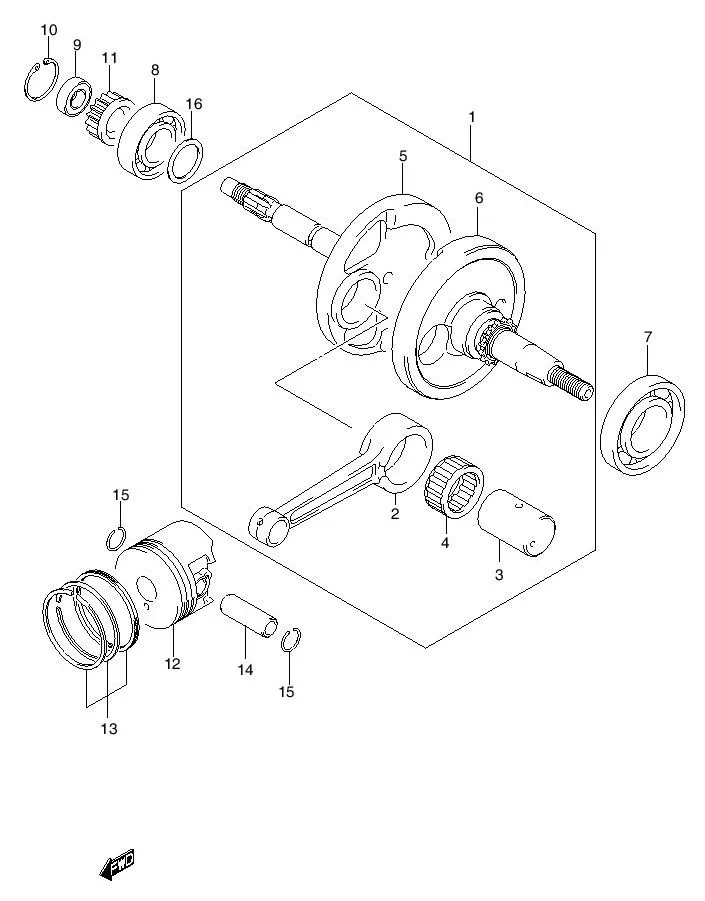

FIG.6 CRANKSHAFT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 12200B20G50N000	CRANKSHAFT ASSY	1	-	FD125XRM
1-1	DISCONTINUE SUB: 12200B20G10N000	CRANKSHAFT ASSY	1	-	FD125XRD ; FD125XSD
2	12161-46G50-001 SUB: 12161B20G00N0C0	•ROD, CONNECTING	1	Rp87.000
3	12211-20G00-0A0 SUB: 12211-20G00-000	•PIN, CRANK	1	Rp56.500
4	09263-28040-0B0 SUB: 09263-28029-0B0	•BEARING	1	Rp50.500
5-1	12221-20G00-000 SUB: 12221B20G00N000	•CRANKSHAFT, RH	1	Rp214.500	FD125XRD ; FD125XSD
5-2	12221-20G10-000	•CRANKSHAFT, RH	1	Rp326.000	FD125XRM
6-1	DISCONTINUE SUB: 12261B20G10N000	•CRANKSHAFT, LH	1	-	FD125XRD ; FD125XSD
6-2	12261-20G00-000	•CRANKSHAFT, LH	1	Rp320.500	FD125XRM
7	09262-35063-000 SUB: 09262B35063N000	BEARING, LH	1	Rp69.000
8	09262-25122-000 SUB: 09262B25122N000	BEARING, MIDDLE	1	Rp56.500
9	09262-12004-000 SUB: 09262B12004N000	BEARING, RH	1	Rp39.000
10	08331-41289-000 SUB: 08331-41286-000	CIRCLIP	1	Rp4.000
11	16321-23F01-000 SUB: 16321-23F00-000	GEAR, OIL PUMP DRIVE	1	Rp24.000
12-1	12111-20G30-0F0 SUB: 12111B20G20N0F0	PISTON (STD)	1	Rp83.500	FD125XRD ; FD125XSD
12-2	12111-20G30-050 SUB: 12111B20G20N050	PISTON OS 0.50	1	Rp83.500	FD125XRD ; FD125XSD
12-3	12111-20G30-100 SUB: 12111B20G20N100	PISTON OS 1.00	1	Rp83.500	FD125XRD ; FD125XSD
12-4	12111-20G30-0F0 SUB: 12111B20G30N0F0	PISTON (STD)	1	Rp83.500	FD125XRM
12-5	12111-20G30-050 SUB: 12111B20G30N050	PISTON OS 0.50	1	Rp83.500	FD125XRM
12-6	12111-20G30-100 SUB: 12111B20G30N100	PISTON O.S 1.00	1	Rp83.500	FD125XRM
13-1	12140-23F10-000 SUB: 12140B23F10N000	RING SET PISTON	1	Rp58.000	FD125XRD ; FD125XSD ; FD125XRM
13-3	12140-23F10-100 SUB: 12140B23F00N100	RING SET PISTON OS 100	0	Rp58.000	FD125XRD ; FD125XSD ; FD125XRM
13-2	12140-23F10-050 SUB: 12140B23F10N050	RING SET PISTON OS 0.5	1	Rp58.000	FD125XRD ; FD125XSD ; FD125XRM
14	12151-20G00-000 SUB: 12151B20G00N000	PIN, PISTON	1	Rp18.000
15	09381-14001-000 SUB: 09381B14001N000	CIRCLIP	2	Rp2.500
16-15	DISCONTINUE SUB: 09181-25181-000	SHIM (T:1.30)	1	-
16-14	09181-25179-000	SHIM (T:1.25)	1	Rp24.500
16-13	DISCONTINUE SUB: 09181-25063-000	SHIM (T:1.20)	1	-
16-12	09181-25062-000	SHIM (T:1.15)	1	Rp19.500
16-11	09181-25061-000	SHIM (T:1.10)	1	Rp19.000
16-10	09181-25060-000	SHIM (T:1.05)	1	Rp18.500
16-9	09181-25167-000 SUB: 09181-25059-000	SHIM (T:1.00)	1	Rp18.000
16-8	09181-25058-000	SHIM (T:0.95)	1	Rp18.000
16-7	09181-25164-000 SUB: 09181-25057-000	SHIM (T:0.90)	1	Rp19.500
16-6	09181-25056-000	SHIM (T:0.85)	1	Rp18.500
16-5	09181-25162-000 SUB: 09181-25055-000	SHIM (T:0.80)	1	Rp17.000
16-4	09181-25054-000	SHIM (T:0.75)	1	Rp18.000
16-3	09181-25160-000 SUB: 09181-25053-000	SHIM (T:0.70)	1	Rp19.500
16-2	09181-25052-000	SHIM (T:0.65)	1	Rp18.000
16-1	09181-25051-000	SHIM (T:0.60)	1	Rp17.000
