SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.2 CYLINDER HEAD FIG.3 CYLINDER FIG.4 CRANKCASE FIG.5 CRANKCASE COVER FIG.6 CRANKSHAFT FIG.7 STARTER CLUTCH FD125XSD FIG.8 CAMSHAFT/VALVE FIG.9 CAM CHAIN FIG.10 CARBURETOR FIG.11 AIR CLEANER ASSY FIG.12 MUFFLER FD125XRM FIG.13 OIL PUMP FIG.14 CLUCTH FD125XSD FIG.14A CLUCTH FD125XRM FIG.15 TRANSMISSION FIG.16 GEAR SHIFTING FD125XSD FIG.16A GEAR SHIFTING FD125XRM

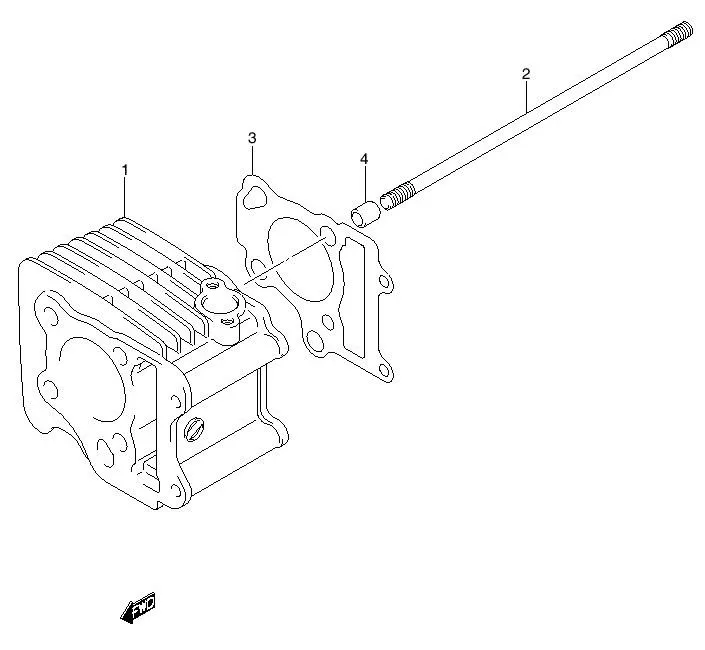

FIG.3 CYLINDER

FIG.3 CYLINDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	11210-20G00-000 SUB: 11210B20G00N000	CYLINDER	1	Rp519.000	FD125XRD ; FD125XSD
1-2	11210-20G10-0F0 SUB: 11210B20G10N0F0	CYLINDER	1	Rp567.500	FD125XRM
2	09108-08265-000	STUD BOLT (8X192)	4	Rp27.500
3	11241-20G00-001 SUB: 11241B20G00N000	GASKET, CYLINDER	1	Rp6.500
4	04211-11129-000 SUB: 04211B11129N000	PIN	2	Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
