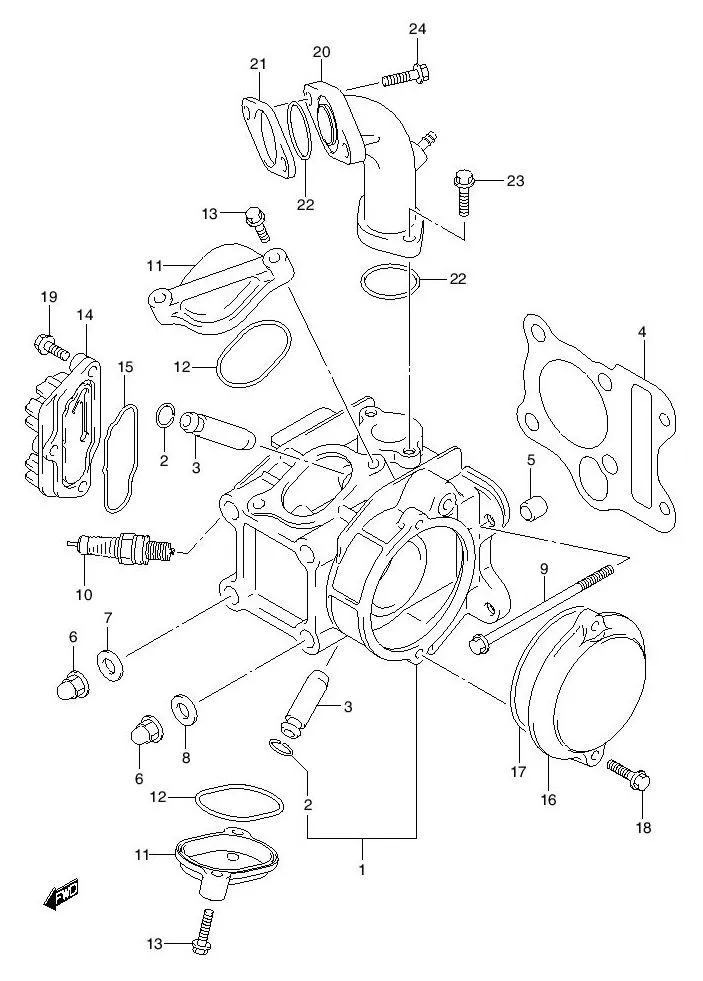

FIG.2 CYLINDER HEAD

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 11110B20G70N000	HEAD, CYLINDER	1	-	FD125XRM
1-1	DISCONTINUE SUB: 11110B20G00N000	HEAD, CYLINDER	1	-	FD125XRD ; FD125XSD
2	09381-10004-000 SUB: 09381B10004N000	•RING	2	Rp3.000
3	11115-09G10-000	GUIDE, VALVE (OS:0.3)	2	Rp18.000	OPT
4	11141-20G00-000 SUB: 11141B20G00N000	GASKET, CYLINDER HEAD	1	Rp30.500
5	04211-11129-000 SUB: 04211B11129N000	PIN	2	Rp2.000
6	09159-08137-000 SUB: 09159-08049-000	NUT	4	Rp11.000
7	09168-08021-000 SUB: 09168B08021N000	GASKET	2	Rp5.000
8	09160-08121-000 SUB: 09160B08121N000	WASHER	2	Rp6.500
9	09103-06501-000 SUB: 09103B06501N000	BOLT, CYLINDER HEAD	2	Rp9.000
10-1	09482-00406-000 SUB: 09482B00406N000	SPARK PLUG (NGK,C6HSA)	1	Rp25.500
10-2	09482-00810-000 SUB: 09482-00810L000	SPARK PLUG (ND,U20FS-U)	1	Rp18.500
11	11175-09400-000 SUB: 11175-09400L000	CAP, INSPECTION	2	Rp14.000
12	09280-50007-000 SUB: 09280B50007N000	O RING, INSPECTION CAP	2	Rp4.000
13	01547-0620B-000 SUB: 01547-06203L000	BOLT	4	Rp6.500
14	DISCONTINUE SUB: 11134B09G00N000	COVER, CYLINDER HEAD RH	1	-
15	11144-09G00-000 SUB: 11144B09G00N000	O RING, HEAD COVER	1	Rp6.500
16	DISCONTINUE SUB: 11121B23F01N000	COVER, CYLINDER HEAD LH	1	-
17	09280-84002-000 SUB: 09280B84002N000	O RING	1	Rp4.500
18	01547-0620B-000 SUB: 01547-06203L000	BOLT	2	Rp6.500
19	01547-0625A-000 SUB: 01547B06253N000	BOLT, CYLINDER HEAD COVER	3	Rp6.500
20	13110-20G10-000 SUB: 13110B20G10N000	PIPE, INTAKE	1	Rp135.500
21	13129-20G00-000 SUB: 13129B20G00N000	INSULATOR, CARBURETOR	1	Rp13.500
22	09280-26009-000 SUB: 09280B26009N000	O RING	2	Rp3.000
23	01547-0625A-000 SUB: 01547B06253N000	BOLT, INTAKE HEAD	2	Rp6.500
24	01547-0625A-000 SUB: 01547B06253N000	BOLT, INTAKE CARBURETOR	2	Rp6.500
