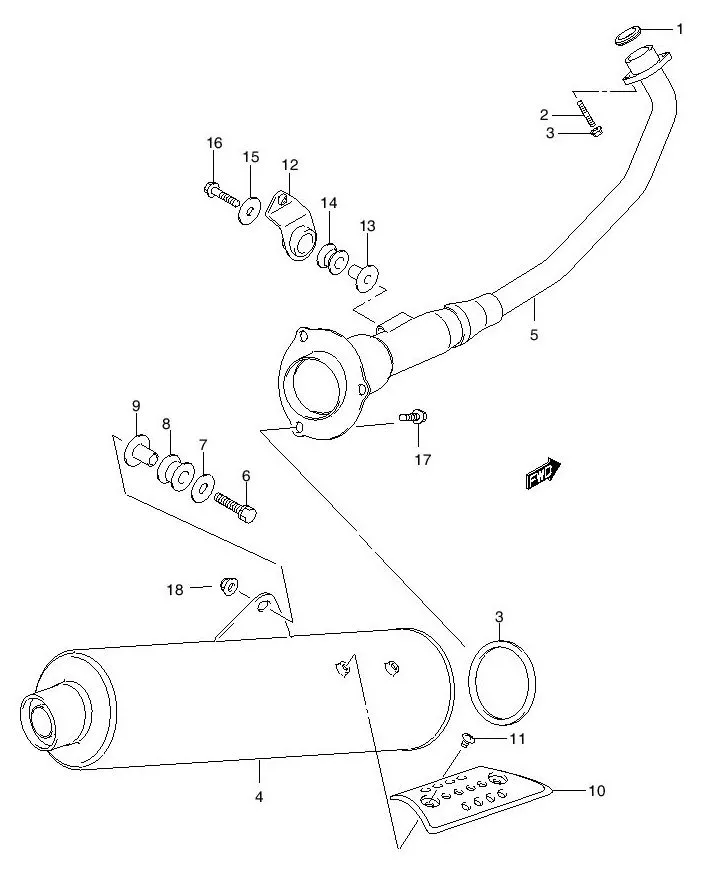

FIG.12 MUFFLER FD125XRM

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	14181-09D00-000 SUB: 14181B09D00N000	GASKET, EXHAUST PIPE	1	Rp4.500
2	09108-08280-000 SUB: 09108B08280N000	BOLT, STUD	2	Rp8.000
3	08316-1008A-000 SUB: 08316B10083N000	NUT	2	Rp3.500
4-1	14305-20G00-000 SUB: 14305B20G00N000	MUFFLER ASSY	1	Rp2.182.500	FD125XRD ; FD125XSD
4-2	14301-20G30-000 SUB: 14301B20G30N000	MUFFLER ASSY	1	Rp1.835.500	FD125XRM
5	14150-20G30-000	PIPE COMP EXHAUST	0	Rp469.000
6	01550-0835B-000 SUB: 01550B08353N000	BOLT	1	Rp4.500
7	09160-08032-000 SUB: 09160B08032N000	WASHER	1	Rp6.500
8	09180-08151-000 SUB: 09180B08151N000	SPACER, MUF SPRT	1	Rp22.000
9	09320-12032-000 SUB: 09320B12032N000	CUSHION MUFFLER SUP	1	Rp5.000
10-1	14780-23FA0-000	COVER, MUFFLER	0	Rp62.000	FD125XRD ; FD125XSD
10-2	14791-20G10-000 SUB: 14791B20G10N000	COVER, MUFFLER	1	Rp20.000	FD125XRM
11	14783-23FA0-000 SUB: 14783B23FA0N000	SCREW	2	Rp5.000
12	14770-20G00-000 SUB: 14770B20G00N000	DAMPER COMP, MUFFLER SPRT	1	Rp50.000
13	DISCONTINUE SUB: 09180B08212N000	SPACER, MUF SPRT	1	-
14	09320-12078-000 SUB: 09320-12048-000	CUSHION	1	Rp18.000
15	09160-08149-000 SUB: 09160B08149N000	WASHER	1	Rp6.500
16	01550-0840B-000 SUB: 01550-08403-000	BOLT	1	Rp5.500
17	01550-0620B-000 SUB: 01550B0620BN000	BOLT. MUFFLER JOINT	1	Rp3.500
18	08316-1008A-000 SUB: 08316B10083N000	NUT	1	Rp3.500
