SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.2 CYLINDER HEAD FIG.3 CYLINDER FIG.4 CRANKCASE FIG.5 CRANKCASE COVER FIG.6 CRANKSHAFT FIG.7 STARTER CLUTCH FD125XSD FIG.8 CAMSHAFT/VALVE FIG.9 CAM CHAIN FIG.10 CARBURETOR FIG.11 AIR CLEANER ASSY FIG.12 MUFFLER FD125XRM FIG.13 OIL PUMP FIG.14 CLUCTH FD125XSD FIG.14A CLUCTH FD125XRM FIG.15 TRANSMISSION FIG.16 GEAR SHIFTING FD125XSD FIG.16A GEAR SHIFTING FD125XRM

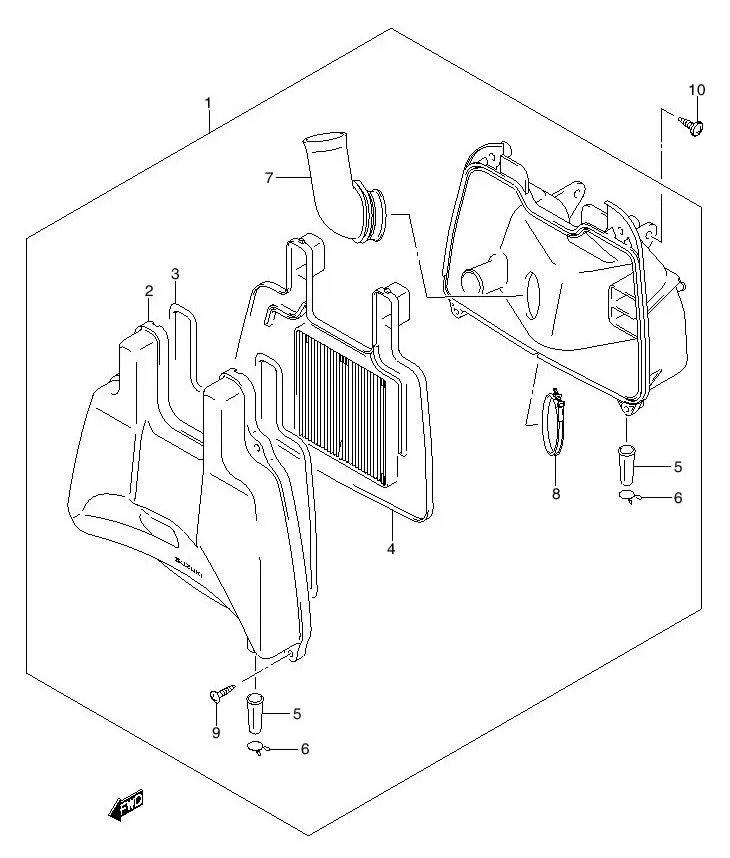

FIG.11 AIR CLEANER ASSY

FIG.11 AIR CLEANER ASSY

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	13700-20G00-000 SUB: 13700B20G00N000	CLEANER ASSY, AIR	1	Rp146.500	FD125XRD ; FD125XSD
1-2	13700-20G30-000 SUB: 13700B20G30N000	CLEANER ASSY, AIR	1	Rp149.000	FD125XRM
2	DISCONTINUE SUB: 13740B20G00N000	•CAP, AIR CLEANER	1	-
3	DISCONTINUE SUB: 13746B09G00N000	••GASKET, AIR CLEANER CAP	1	-
4	13780-09G00-000 SUB: 13780B09G00N000	•FILTER, AIR CLEANER	1	Rp46.000
5	13871-09G00-000 SUB: 13871B09G00N000	•PLUG, DRAIN	2	Rp4.000
6	13824-18910-000 SUB: 13824B18910N000	•CLIP	2	Rp3.500
7-1	13881-09G00-000 SUB: 13881B09G00N000	•TUBE, OUTLET	1	Rp18.000	FD125XRD ; FD125XSD
7-2	13881-09G30-000 SUB: 13881B09G30N000	•TUBE, OUTLET	1	Rp18.000	FD125XRM
8	09402-40208-000 SUB: 09402B40208N000	•CLAMP	1	Rp9.000
9	03541-0520A-000 SUB: 03541B05203N000	•SCREW	4	Rp3.500
10	09136-06062-000 SUB: 09136B06017N000	SCREW, AIR CLEANER	2	Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
