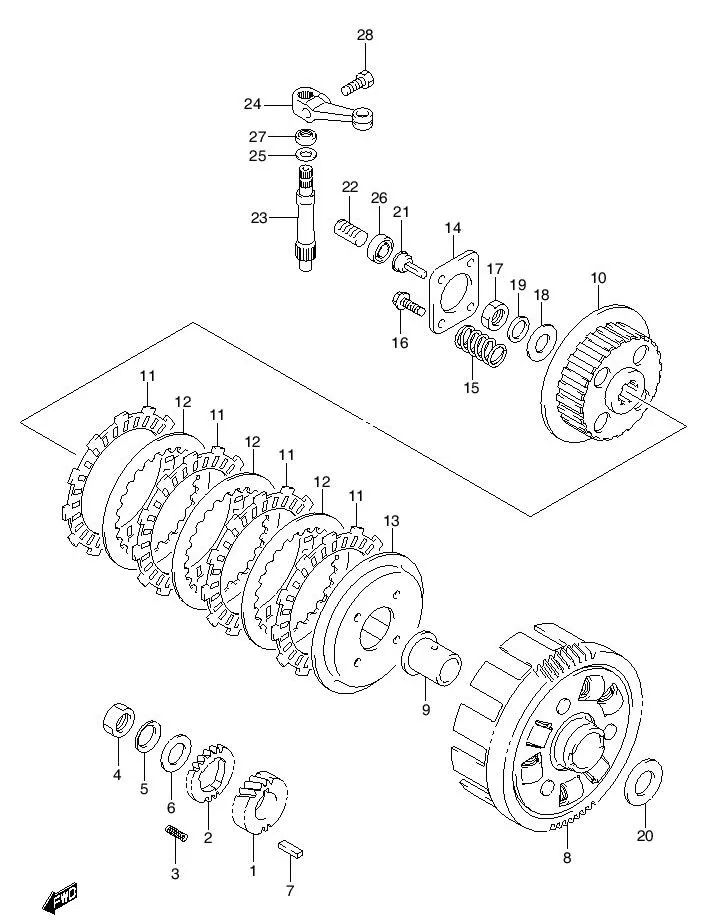

FIG.14A CLUCTH FD125XRM

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 21111B20G40N0B0	GEAR PRIMARY DRIVE (BLUE)	1	-
1-1	DISCONTINUE SUB: 21111B20G40N0A0	GEAR PRIMARY DRIVE (YELLOW)	1	-
2	21112-20G70-000 SUB: 21112B20G10N000	GEAR, PRIMARY DRIVE SCISSORS	1	Rp47.000
3	21114-23F61-000	SPRING	3	Rp4.000
4	09140-14022-000 SUB: 09140B14022N000	NUT, PRIMARY DRIVE GEAR	1	Rp9.000
5	09164-14011-000 SUB: 09164B14011N000	WASHER, PRI DRIVE	1	Rp4.000
6	09181-14002-000	WASHER, PRI DRIVE	1	Rp8.500
7	09421-04004-000 SUB: 09421B04004N000	KEY, PRIMARY DRIVE	1	Rp6.500
8	21200-20G00-000 SUB: 21200B20G00N000	GEAR ASSY, PRIMARY DRIVEN	1	Rp450.000
9	21251-23F20-000 SUB: 21251B23F20N000	SPACER, PRI DRIVEN GEAR	1	Rp25.000
10	21411-20G00-000 SUB: 21411B20G00N000	HUB, CLUTCH SLEEVE	1	Rp60.000
11	DISCONTINUE SUB: 21441B23F00N000	PLATE, CLUTCH DRIVE	4	-
12	21451-21D40-000 SUB: 21451B21D40N000	PLATE, CLUTCH DRIVEN	3	Rp21.500
13	21461-09G00-000 SUB: 21461B09G00N000	DISK, CLUTCH PRESSURE	1	Rp35.000
14	21465-09G00-000 SUB: 21465B09G00N000	PLATE, RELEASE	1	Rp3.000
15	09440-18035-000 SUB: 09440B18031N000	SPRING, CLUTCH	4	Rp6.000
16	21482-09G00-000 SUB: 21482B09G00N000	BOLT, CLUTCH SPRING	4	Rp3.000
17	09140-14022-000 SUB: 09140B14022N000	NUT, CLUTCH SLEEVE HUB	1	Rp9.000
18	09160-14005-000 SUB: 09160B14005N000	WASHER, CLUTCH SLEEVE HUB	1	Rp4.500	14X29X1.5
19	09164-14011-000 SUB: 09164B14011N000	WASHER, CLUTCH SLEEVE WAVE	1	Rp4.000
20	09181-17018-000 SUB: 09181B17018N000	WASHER, PRI DRIVEN GEAR	1	Rp8.000	17X32X2
21	23121-09G01-000 SUB: 23121B09G00N000	PIECE, CLUTCH PUSH	1	Rp11.500
22	23165-28F01-000	RACK, CLUTCH RELEASE	1	Rp146.500
23	23261-20G00-000	PINION, CLUTCH RELEASE	1	Rp117.500
24	23271-28F00-000	ARM, CLUTCH RELEASE	1	Rp129.000
25	09160-12086-000 SUB: 09160B12086N000	WASHER, PINION (12.5X17X1.0)	1	Rp7.000
26	09262-15032-000 SUB: 09262B15032N000	BEARING, PUSH PIECE	1	Rp40.500
27	09285-10008-000 SUB: 09285B10004N000	SEAL, CL RELEASE (10X17X5)	1	Rp9.500
28	01500-0616A-000 SUB: 01500-06163-000	BOLT, CL RELEASE	1	Rp6.500
