SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCH FD125XSDFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 CARBURETORFIG.11 AIR CLEANER ASSYFIG.12 MUFFLER FD125XRMFIG.13 OIL PUMPFIG.14 CLUCTH FD125XSDFIG.14A CLUCTH FD125XRMFIG.15 TRANSMISSIONFIG.16 GEAR SHIFTING FD125XSDFIG.16A GEAR SHIFTING FD125XRM

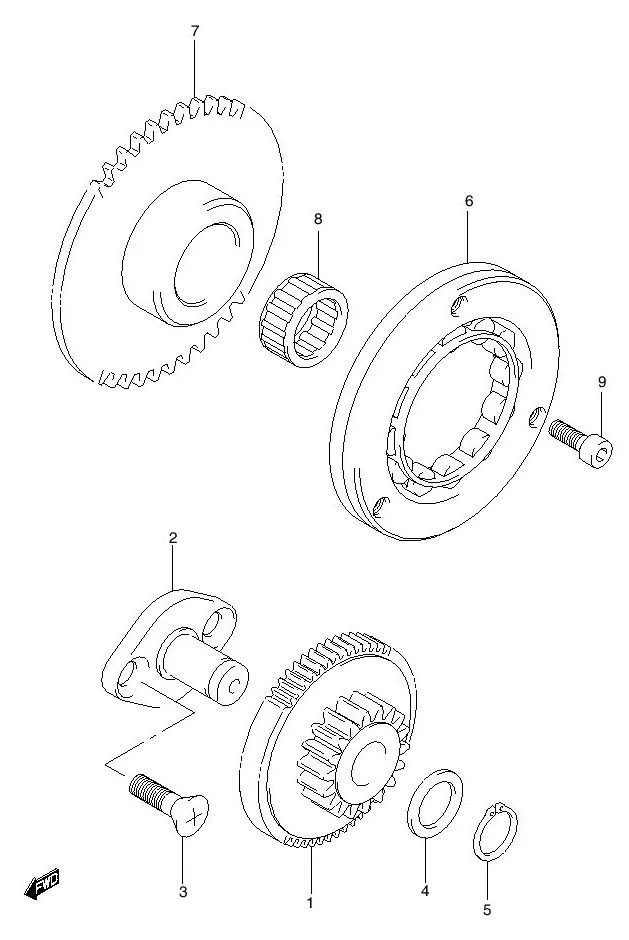

FIG.7 STARTER CLUTCH FD125XSD

FIG.7 STARTER CLUTCH FD125XSD
No No. Part Description Qty Price Per Pcs Remarks
1 12611-20G00-000 GEAR, STARTER IDLE (NT:68/14) 1 Rp148.500
2 DISCONTINUE
SUB: 12612-23F00-000		 SHAFT, STARTER IDLE GEAR 1 -
3 02122-0616A-000
SUB: 02122B06163N000		 SCREW 2 Rp3.500
4 09160-13010-000 WASHER 1 Rp12.500
5 08331-3113A-000
SUB: 08331-31136-000		 CIRCLIP 1 Rp13.000
6 12600-20850-000 CLUTCH SET, STARTER 1 -
7 12614-25G00-000
SUB: 12614B05F10N000		 •CLUTCH, STARTER ONE WAY 1 Rp476.500
8 12620-20G00-000
SUB: 12620B20G00N000		 •GEAR COMP, STARTER CLUTCH 1 Rp182.500
9 09263-20061-000 ••BEARING 1 Rp208.000
10 07130-0612A-000
SUB: 07130-06123-000		 BOLT (6X10) 3 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
