Preview Engine Transmission Electrical Suspension Body

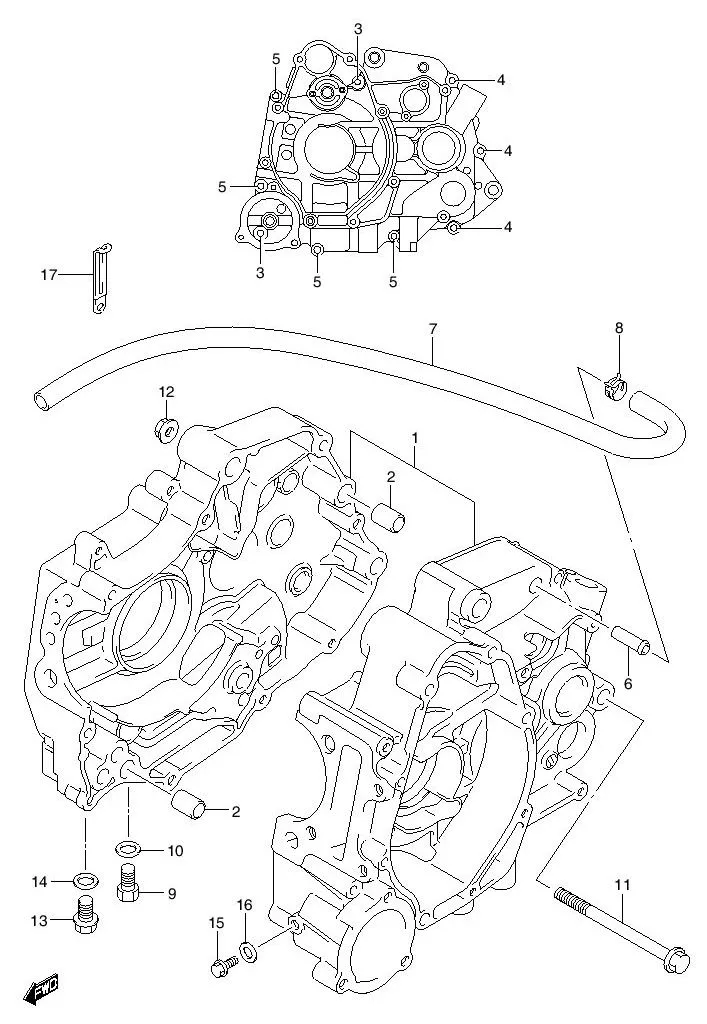

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 11300B20G01N000	CRANKCASE ASSY	1	-	FD125XRM
1-1	DISCONTINUE SUB: 11300B20G11N000	CRANKCASE ASSY	1	-	FD125XRD ; FD125XSD
2	04211M13189-000	•PIN	2	Rp9.000
3	01547-0640B-000 SUB: 01547B06403N000	•SCREW	2	Rp7.000
4	01547-0650A-000 SUB: 01547B06503N000	•SCREW	3	Rp7.000
5	01547-0675A-000 SUB: 01547B06753N000	•SCREW	4	Rp7.500
6	09364-08003-000	UNION, BREATHER HOSE	1	Rp20.500
7	DISCONTINUE SUB: 11332B20G00N000	HOSE, BREATHER	1	-
8	09401-10409-000 SUB: 09401B10409N000	CLIP	2	Rp7.500
9	01500-1016A-000 SUB: 01500-10163-000	PLUG, OIL DRAIN	1	Rp7.500
10	09168-10L02-000 SUB: 09168B10002N000	GASKET	1	Rp2.500
11	09103-10110-000 SUB: 09103B10110N000	BOLT (L:100)	2	Rp11.500
12	08319-3110A-000 SUB: 08319-31103-000	NUT	2	Rp4.500
13	09247-10008-000	PLUG, OIL GALLERY (10X12)	1	Rp11.500
14	09168-10L02-000 SUB: 09168B10002N000	GASKET (9.9X14X0.3)	1	Rp2.500
15	01547-0610A-000 SUB: 01547B06123N000	PLUG, OIL GALLERY	1	Rp3.000
16	09168-06004-000 SUB: 09168B06004N000	GASKET (6.2X11X1.2)	1	Rp2.500
17	09404-06431-000	CLAMP	1	Rp14.000
