  5. FIG. 14 TRANSMISSION

Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 23 CYLINDER HEADFIG.3 CRANKCASEFIG. 8 CAM CHAINFIG. 10 AIR CLEANERFIG. 12 OIL PUMPFIG. 15 GEAR SHIFTINGFIG. 6 STARTER CLUTCH FIG. 4 CRANKCASE COVERFIG. 5 CRANKSHAFTFIG. 7 CAM SHAFT / VALVEFIG. 9 CARBURETORFIG. 11 MUFFLERFIG. 13 CLUTCHFIG. 1 CYLINDER HEAD FIG. 2 CYLINDERFIG. 14 TRANSMISSION

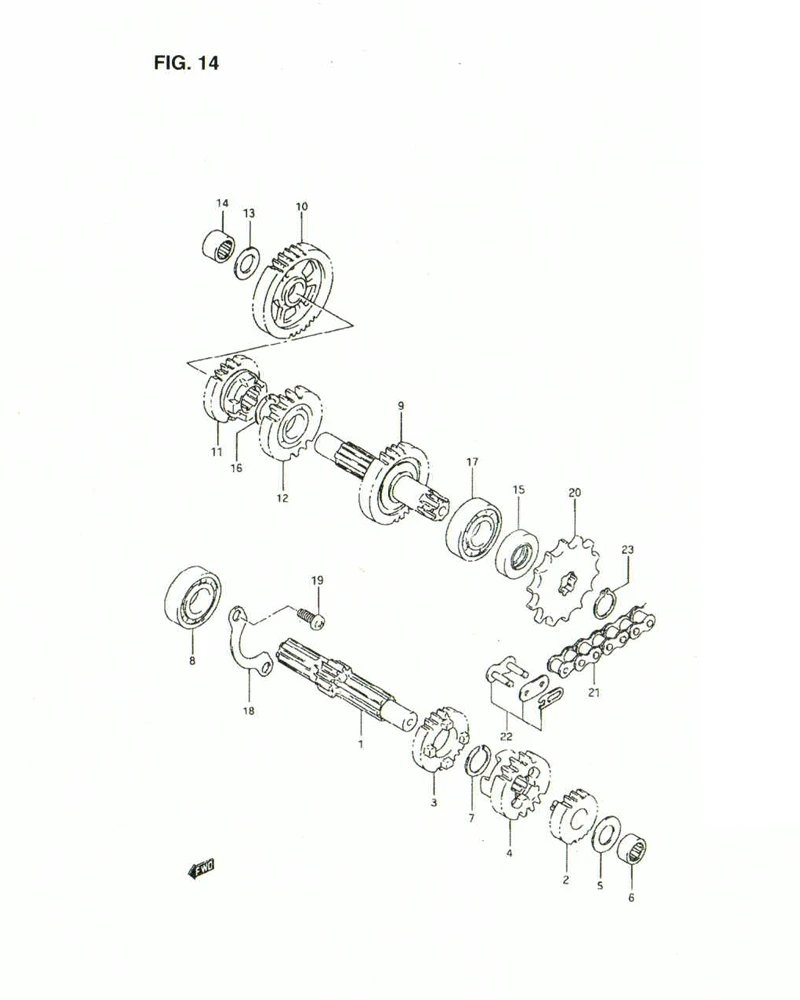

FIG. 14 TRANSMISSION

FIG. 14 TRANSMISSION
No No. Part Description Qty Price Per Pcs Remarks
1 24121-35511-000 SHAFT, counter 1 Rp1.108.500
2 DISCONTINUE
SUB: 24221-35422-000		 GEAR, 2ND drive (NT: 16) 1 -
3 DISCONTINUE
SUB: 24231-30A10-000		 GEAR, 3RD drive (NT: 19) 1 -
4 24241-30A10-000 GEAR, 4TH drive (NT: 19) 1 Rp634.000
5 DISCONTINUE
SUB: 09160-13006-000		 WASHER, 2ND drive thrust 1 -
6 09263-13002-000
SUB: 09263-13001-000		 BEARING, counter shaft LH 1 Rp28.500
7 09380-17007-000 CIRCLIP, 3RD drive gear 1 Rp11.000
8 08110-62030-000 BEARING, counter shaft RH 1 Rp33.500
9 24130-30A20-000 SHAFT, drive 1 Rp1.437.000
10 24310-30A10-000 GEAR, 1ST driven (NT:33) 1 Rp513.000
11 DISCONTINUE
SUB: 24331-30A10-000		 GEAR, 3RD driven (NT:26) 1 -
12 24341-35420-000 GEAR, 4TH driven (NT:20) 1 Rp408.500
13 DISCONTINUE
SUB: 09160-13006-000		 WASHER, 1ST driven gear 1 -
14 09263-13002-000
SUB: 09263-13001-000		 BEARING, drive shaft RH 1 Rp28.500
15 09283-17025-000 SEAL, drive shaft oil 1 Rp7.000
16 09380-17007-000 CIRCLIP, 4TH driven gear 1 Rp11.000
17 08110-62030-000 BEARING, drive shaft LH 1 Rp33.500
18 DISCONTINUE
SUB: 24741-09401-000		 RETAINER, counter shaft 1 -
19 02112-0610B-000
SUB: 02112-06103-000		 SCREW 2 Rp5.500
20 DISCONTINUE
SUB: 27511-26400-000		 SPROCKET, engine (NT:14) 1 -
21 27600-20940-098
SUB: 27600-20910L098		 CHAIN ASSY, driven 98l 1 Rp120.000
22 DISCONTINUE
SUB: 27620-20910-000		 .JOINT, drive 1 -
23 08331-31169-000
SUB: 08331-31166-000		 CIRCLIP, engine sprocket 1 Rp11.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
