Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 23 CYLINDER HEADFIG.3 CRANKCASEFIG. 8 CAM CHAINFIG. 10 AIR CLEANERFIG. 12 OIL PUMPFIG. 15 GEAR SHIFTINGFIG. 6 STARTER CLUTCH FIG. 4 CRANKCASE COVERFIG. 5 CRANKSHAFTFIG. 7 CAM SHAFT / VALVEFIG. 9 CARBURETORFIG. 11 MUFFLERFIG. 13 CLUTCHFIG. 1 CYLINDER HEAD FIG. 2 CYLINDERFIG. 14 TRANSMISSION

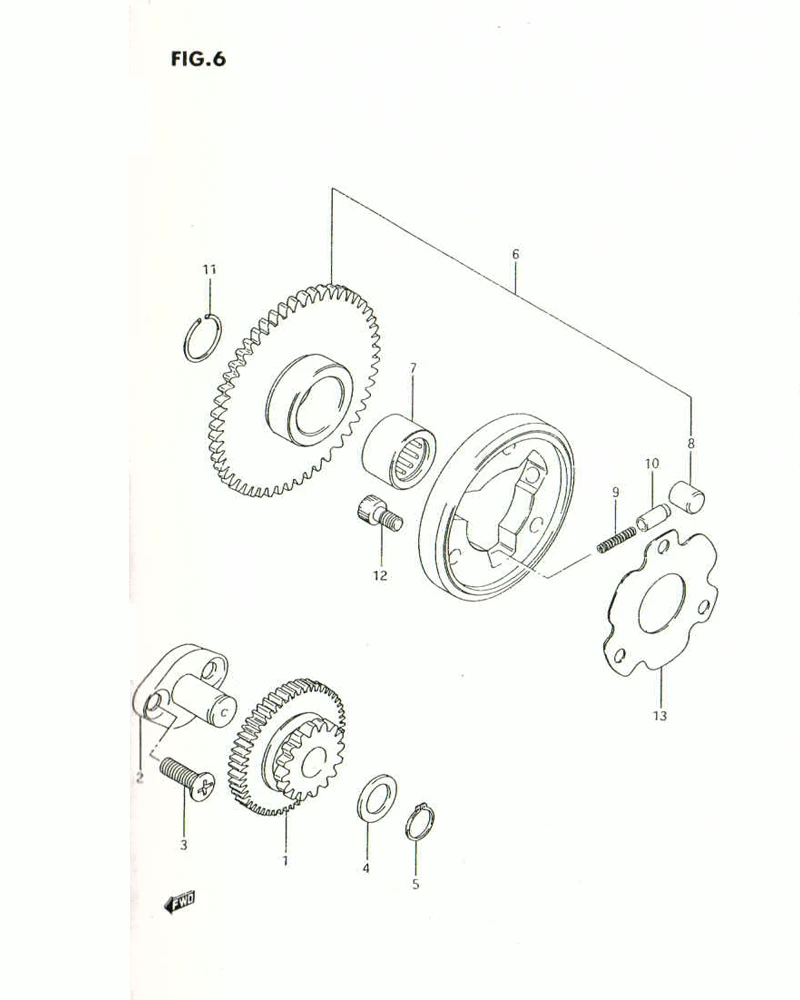

FIG. 6 STARTER CLUTCH

FIG. 6 STARTER CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1 12611-30A00-000 GEAR, starter idle (NT:68/14) 1 Rp487.000
2 DISCONTINUE
SUB: 12612-09410-000		 SHAFT, starter idle gear 1 -
3 12122-06163-000 SCREW 2 -
4 09160-13010-000 WASHER 1 Rp12.500
5 08331-3113A-000
SUB: 08331-31136-000		 CIRCLIP 1 Rp13.000
6 12600-30862-000
SUB: 12600-30851-000		 CLUTCH SET, starter 1 Rp966.500
7 09263-25040-000 .BEARING 1 Rp119.000
8 09261-10003-000 .ROLLER 3 Rp17.000
9 DISCONTINUE
SUB: 09440-03004-000		 .SPRING 3 -
10 12633-05300-000 .PIECE, push 3 Rp49.500
11 DISCONTINUE
SUB: 09380-25010-000		 CIRCLIP, starter clutch brg 1 -
12 07130-0612A-000
SUB: 07130-06123-000		 BOLT (6X10) 3 Rp3.500
13 12649-30D00-000 SHIM, clutch hub 1 Rp41.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
