Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 23 CYLINDER HEADFIG.3 CRANKCASEFIG. 8 CAM CHAINFIG. 10 AIR CLEANERFIG. 12 OIL PUMPFIG. 15 GEAR SHIFTINGFIG. 6 STARTER CLUTCH FIG. 4 CRANKCASE COVERFIG. 5 CRANKSHAFTFIG. 7 CAM SHAFT / VALVEFIG. 9 CARBURETORFIG. 11 MUFFLERFIG. 13 CLUTCHFIG. 1 CYLINDER HEAD FIG. 2 CYLINDERFIG. 14 TRANSMISSION

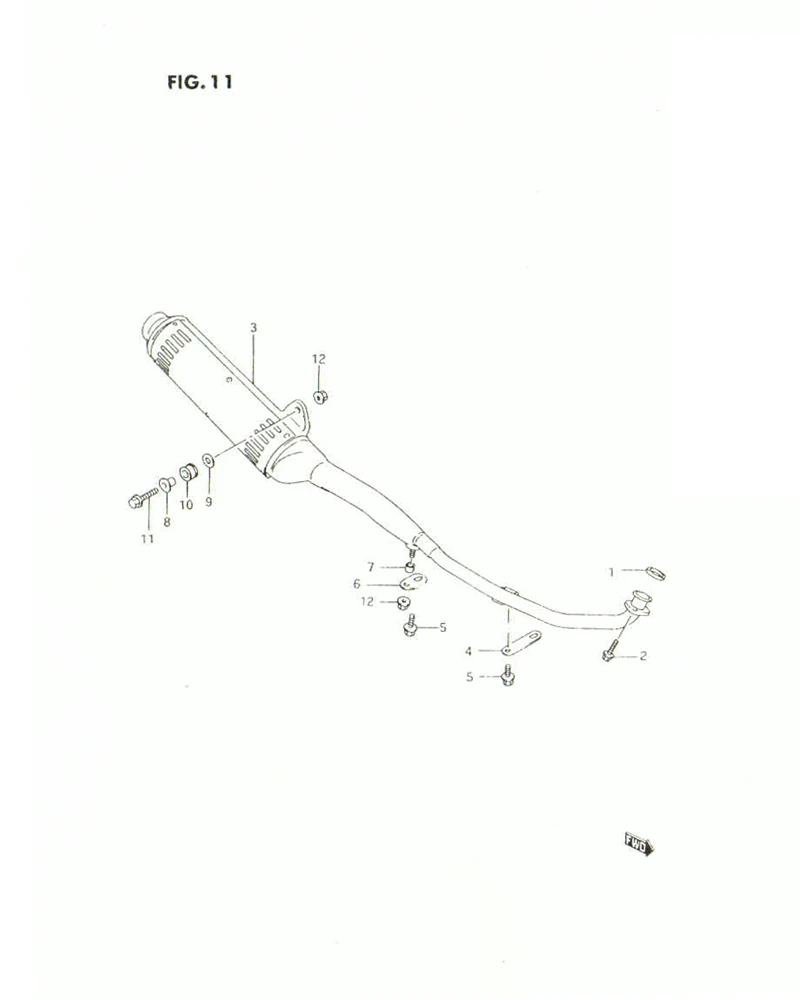

FIG. 11 MUFFLER

FIG. 11 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14181-30A10-000 GASKET, exhaust pipe 1 Rp54.500
2 01570-0620A-000
SUB: 01570-06203-000		 BOLT 2 Rp12.500
3 DISCONTINUE
SUB: 14305-30D00L000		 MUFFLER ASSY 1 -
4 DISCONTINUE
SUB: 14411-30D00L000		 BRACKET, exh sprt 1 -
5 01550-0812A-000
SUB: 01550-08123-000		 BOLT 2 Rp3.500
6 DISCONTINUE
SUB: 14415-30D00L000		 BRACKET, exh sprt rear 1 -
7 DISCONTINUE
SUB: 09180-08198-000		 SPACER 1 -
8 14773-41D01-000
SUB: 14773-41D00-000		 SPACER, muf sprt 1 Rp34.000
9 09160-08032-000 WASHER 1 Rp6.500
10 DISCONTINUE
SUB: 09320-12058-000		 CUSHION 1 -
11 01550-0835B-000
SUB: 01550-08353-000		 BOLT 1 Rp4.500
12 08319-3108A-000
SUB: 08319-31083-000		 NUT 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
