Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 23 CYLINDER HEADFIG.3 CRANKCASEFIG. 8 CAM CHAINFIG. 10 AIR CLEANERFIG. 12 OIL PUMPFIG. 15 GEAR SHIFTINGFIG. 6 STARTER CLUTCH FIG. 4 CRANKCASE COVERFIG. 5 CRANKSHAFTFIG. 7 CAM SHAFT / VALVEFIG. 9 CARBURETORFIG. 11 MUFFLERFIG. 13 CLUTCHFIG. 1 CYLINDER HEAD FIG. 2 CYLINDERFIG. 14 TRANSMISSION

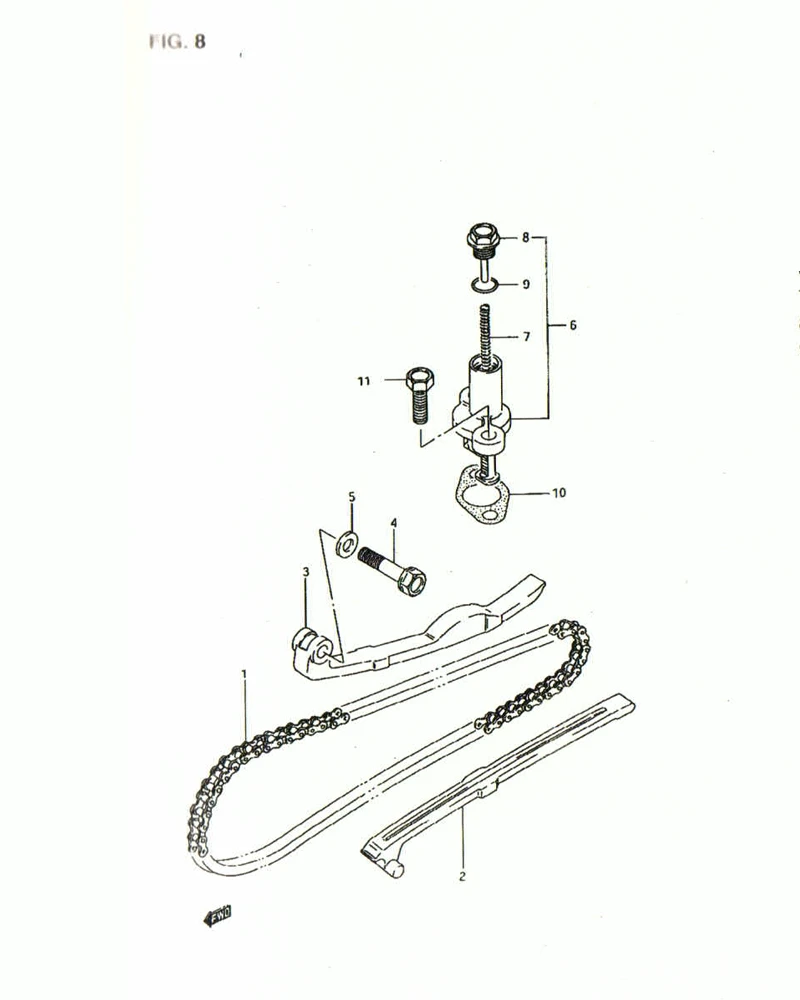

FIG. 8 CAM CHAIN

FIG. 8 CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 12760-30A10-000		 CHAIN, cam shaft drive 1 -
2 12771-30A04-000 GUIDE, cam chain 1 Rp264.000
3 12811-30A02-000 TENSIONER, cam chain 1 Rp247.000
4 09103-06247-000
SUB: 12812-30A00-000		 BOLT, cam chain tensioner 1 Rp4.000
5 09168-06004-000 GASKER 1 Rp2.500
6 12830-09G00-000
SUB: 12830-30A01-000		 ADJUSTER ASSY, tensioner 1 Rp253.000
7 12833-30A01-000 .SPRING 1 Rp17.000
8 DISCONTINUE
SUB: 12834-02A00-000		 .PLUG, adjuster 1 -
9 12832-12A00-000 .O RING 1 -
10 12837-19B10-001
SUB: 12837-19B10L000		 GASKET, tensioner adjuster 1 Rp3.000
11 17120-06203-000 BOLT (6X20) 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
