Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 23 CYLINDER HEADFIG.3 CRANKCASEFIG. 8 CAM CHAINFIG. 10 AIR CLEANERFIG. 12 OIL PUMPFIG. 15 GEAR SHIFTINGFIG. 6 STARTER CLUTCH FIG. 4 CRANKCASE COVERFIG. 5 CRANKSHAFTFIG. 7 CAM SHAFT / VALVEFIG. 9 CARBURETORFIG. 11 MUFFLERFIG. 13 CLUTCHFIG. 1 CYLINDER HEAD FIG. 2 CYLINDERFIG. 14 TRANSMISSION

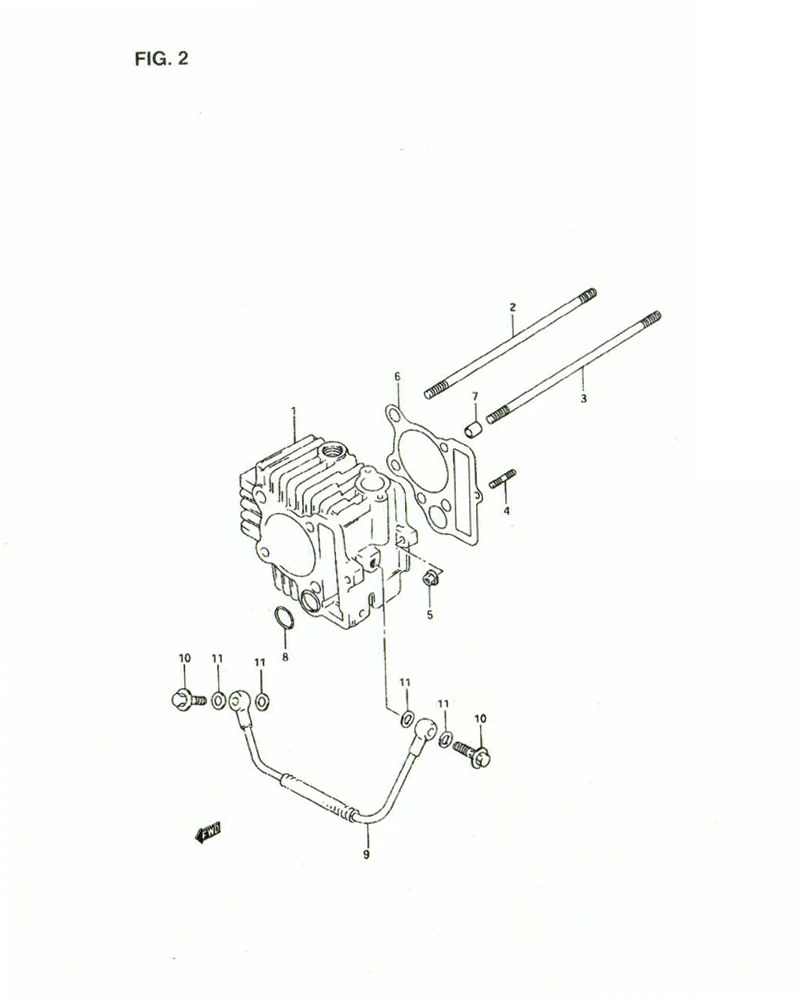

FIG. 2 CYLINDER

FIG. 2 CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1-1 11211-30D30-0F0
SUB: 11211-30D01-0F0		 CYLINDER 1 Rp390.000
1-2 11211-30D30-0F0
SUB: 11211-30D10-0F0		 CYLINDER 1 Rp390.000
2 09108-08171-000 STUD BOLT (8X192) 2 Rp52.500
3 091-08172 STUD BOLT (8X197) 2 -
4 01421-0620A-000
SUB: 01421-06208-000		 STUD BOLT 1 Rp3.500
5 08316-1006A-000
SUB: 08316-10063-000		 NUT 1 Rp2.000
6 11241-30D00-001
SUB: 11241-30D00L000		 GASKET, cylinder 1 Rp5.500
7 04211-111129000 PIN 2 -
8 09280-15014-000 O RING (D:2.4, ID:15. 8) 1 Rp7.000
9 DISCONTINUE
SUB: 11280-30D00-000		 PIPE, cylinder oil 1 -
10 09360-08012-000 BOLT, union 2 Rp51.000
11 09168-08016-000 GASKER, oil pipe 4 Rp25.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
