Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 23 CYLINDER HEADFIG.3 CRANKCASEFIG. 8 CAM CHAINFIG. 10 AIR CLEANERFIG. 12 OIL PUMPFIG. 15 GEAR SHIFTINGFIG. 6 STARTER CLUTCH FIG. 4 CRANKCASE COVERFIG. 5 CRANKSHAFTFIG. 7 CAM SHAFT / VALVEFIG. 9 CARBURETORFIG. 11 MUFFLERFIG. 13 CLUTCHFIG. 1 CYLINDER HEAD FIG. 2 CYLINDERFIG. 14 TRANSMISSION

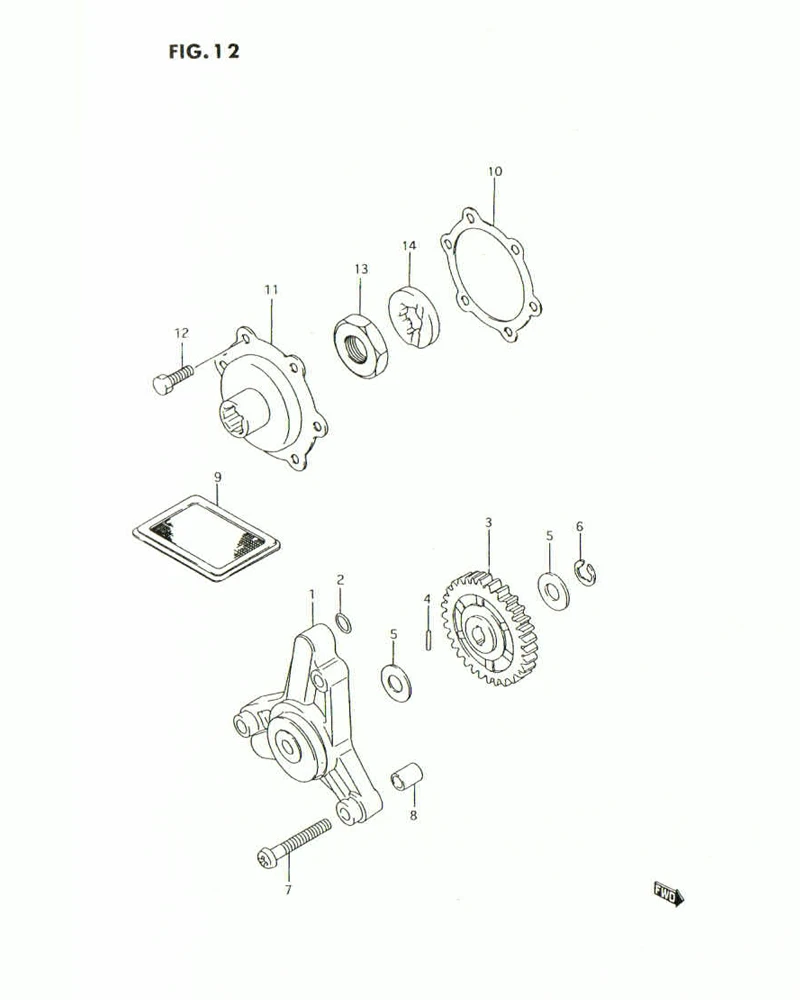

FIG. 12 OIL PUMP

FIG. 12 OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16400-09410-000 PUMP ASSY, engine oil 1 Rp975.500
2 09280-10016-000
SUB: 09280-10015-000		 O RING (D:1.9, ID:9.8) 2 Rp19.500
3 16331-09420-000 GEAR, oil pump driver (NT:31) 1 Rp32.000
4 09261-02008-000 ROLLER 1 Rp10.500
5 08211-08141-000 WASHER 2 -
6 08332-1106A-000
SUB: 08332-11063-000		 E RING 1 Rp8.500
7 02112-0635B-000
SUB: 02112-06353-000		 SCREW 3 Rp14.000
8 04211-09129-000 PIN 2 Rp10.500
9 16520-45H01-000
SUB: 16520-30A00-000		 STRAINER, eingine oil 1 Rp14.500
10 16543-30D00-000 GASKER 1 Rp76.000
11 16540-30D00-000 COVER, engine oil filter 1 Rp241.500
12 09100-05019-000 BOLT (5X10) 3 Rp12.500
13 09140-16025-000 NUT 1 Rp31.000
14 16544-30D00-000 WASHER, oil filter cover 1 Rp28.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
