Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 23 CYLINDER HEAD FIG.3 CRANKCASE FIG. 8 CAM CHAIN FIG. 10 AIR CLEANER FIG. 12 OIL PUMP FIG. 15 GEAR SHIFTING FIG. 6 STARTER CLUTCH FIG. 4 CRANKCASE COVER FIG. 5 CRANKSHAFT FIG. 7 CAM SHAFT / VALVE FIG. 9 CARBURETOR FIG. 11 MUFFLER FIG. 13 CLUTCH FIG. 1 CYLINDER HEAD FIG. 2 CYLINDER FIG. 14 TRANSMISSION

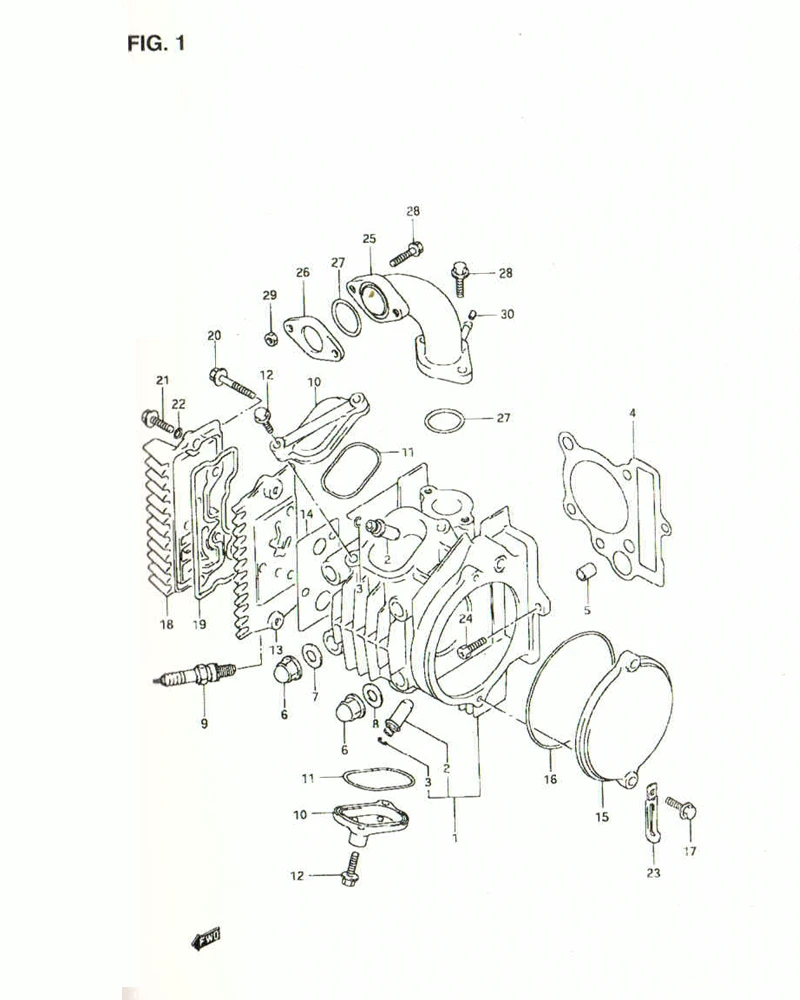

FIG. 1 CYLINDER HEAD

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 11110-30D01-000	HEAD, cylinder	1	-
2	11115-30D70-000	.GUIDE, valve	2	Rp169.500
3	09381-10004-000	.RING	2	Rp3.000
4-1	DISCONTINUE SUB: 11141-30D00-000	GASKET, cylinder head	1	-
4-2	11141-30D00L000	GASKET, cylinder head	1	-
5	04211-11129-000	PIN	2	Rp2.000
6	09159-08137-000 SUB: 09159-08074-000	NUT	4	Rp11.000
7	09168-08021-000	GASKET	1	Rp5.000
8	09160-08039-000	WASHER	3	Rp14.000
9-1	09482-00340L000	SPARK PLUG (NGK, CR6HS)	1	-
9-2	09482-00407L000	SPARK PLUG (NGK, U20FSR-U)	1	-
10	11175-09400-000 SUB: 11175-09400L000	CAP, inspection	2	Rp14.000
11	09280-50007-000	O RING (D:2. 4, ID:16)	2	Rp4.000
12	01550-0625B-000 SUB: 01550-06253-000	BOLT	4	Rp15.000
13	111149-09D01L	COVER, cylinder head (RH)	1	-
14	11134-09D00-000	GASKER, head cover	1	-
15	DISCONTINUE SUB: 11121-30a01L000	COVER, cylinder head (LH)	1	-
16	09280-84002-000	O RING (D:2. 4, ID:84. 6)	1	Rp4.500
17	01550-0620B-000 SUB: 01550-06203-000	BOLT	2	Rp3.500
18	DISCONTINUE SUB: 11149-09D01L000	COVER, cyl head cover No.2	1	-
19	11144-09D00-000	O RING, cyl head cover No.2	1	Rp54.000
20	DISCONTINUE SUB: 09103-06143-000	BOLT, cyl head cover No.2	2	-
21	DISCONTINUE SUB: 09103-06144-000	BOLT, cyl head cover No.2	3	-
22	09168-06004-000	WASHER, cyl head cover No.2	1	Rp2.500
23	09404-06429-000	CLAMP (L:45)	1	Rp15.000
24	09128-06049-000	BOLT (6X16)	1	Rp14.500
25-1	13110-30D10-000 SUB: 13110-30D00-000	PIPE. Intake	1	Rp340.000
25-2	13110-30D10-000	PIPE, intake	1	Rp340.000
26	13129-30A00-000	INSULATOR, carburetor	1	Rp64.500
27	09280-24005-000	O RING (D:2.4, ID:23. 7)	2	Rp3.000
28	01547-0625A-000 SUB: 01547-06253-000	BOLT	4	Rp6.500
29	09140-06023-000	NUT	2	Rp11.500
30	DISCONTINUE SUB: 13131-30D00-000	JET, boost hose	1	-
