Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 23 CYLINDER HEADFIG.3 CRANKCASEFIG. 8 CAM CHAINFIG. 10 AIR CLEANERFIG. 12 OIL PUMPFIG. 15 GEAR SHIFTINGFIG. 6 STARTER CLUTCH FIG. 4 CRANKCASE COVERFIG. 5 CRANKSHAFTFIG. 7 CAM SHAFT / VALVEFIG. 9 CARBURETORFIG. 11 MUFFLERFIG. 13 CLUTCHFIG. 1 CYLINDER HEAD FIG. 2 CYLINDERFIG. 14 TRANSMISSION

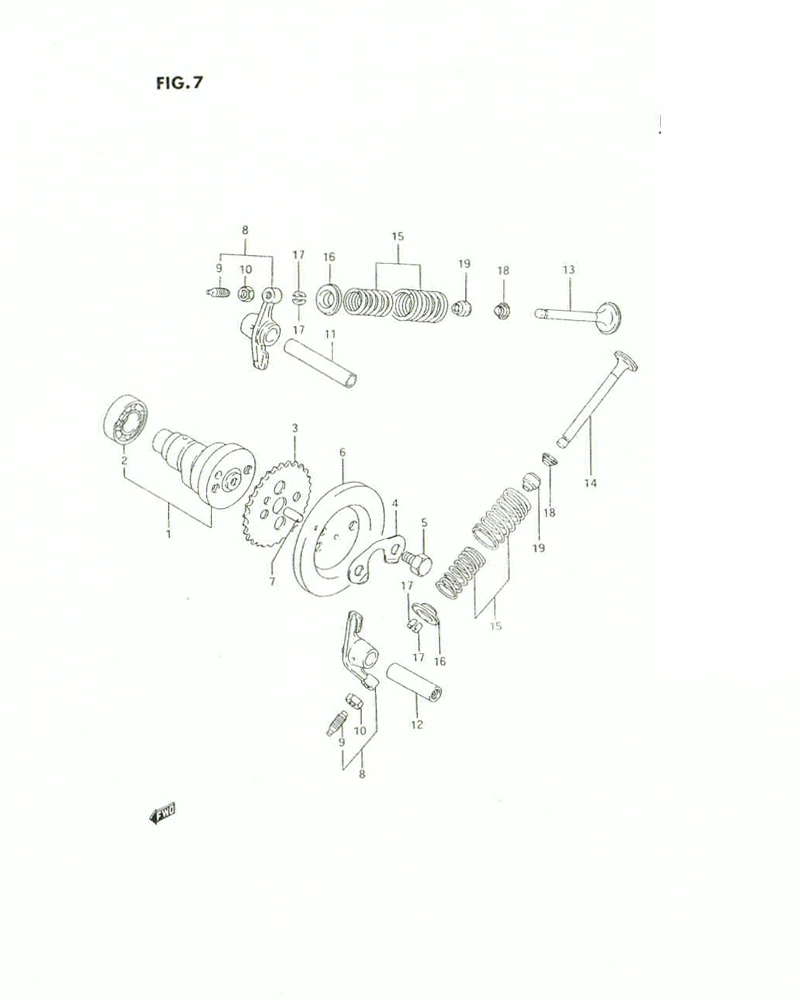

FIG. 7 CAM SHAFT / VALVE

FIG. 7 CAM SHAFT / VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 12710-30D00-000		 CAM SHAFT 1 -
2 DISCONTINUE
SUB: 09262-15026-000		 .BEARING 1 -
3 DISCONTINUE
SUB: 12741-30A10-000		 SPROCKET, cam shaft 1 -
4 12747-30D00-000 WASHER, sprocket 1 Rp54.500
5 09111-06053-000 BOLT (6X16) 2 Rp24.500
6 DISCONTINUE
SUB: 12755-30A00-000		 FLYWHEEL, cam shaft 1 -
7 09261-05009-000 PIN, sprocket 1 Rp11.000
8 12840-09D01-000 ARM, valve locker 1 Rp262.500
9 12842-49201-000 .SCREW, adjusting 2 Rp30.500
10 12843-27A00-000 .NUT, adjusting 2 Rp19.000
11 12861-09D00-000 SHAFT, locker arm IN 1 Rp16.500
12 12871-30A00-000 SHAFT, locker arm EX 1 Rp14.500
13 12911-30D00-000 VALVE, intake 1 Rp45.500
14 12912-30D00-000 VALVE, exhaust 1 Rp71.000
15 12920-30A01-000 SPRING SET, valve 2 Rp18.500
16 DISCONTINUE
SUB: 12931-09400-000		 RETAINER, valve spring 2 -
17 12932-36H00-000
SUB: 12932-27A00-000		 COTTER, valve 4 Rp10.500
18 12933-39E00-000 SEAT, spring 2 Rp40.500
19 09289-05008-000 OIL SEAL 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
