Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 23 CYLINDER HEAD FIG.3 CRANKCASE FIG. 8 CAM CHAIN FIG. 10 AIR CLEANER FIG. 12 OIL PUMP FIG. 15 GEAR SHIFTING FIG. 6 STARTER CLUTCH FIG. 4 CRANKCASE COVER FIG. 5 CRANKSHAFT FIG. 7 CAM SHAFT / VALVE FIG. 9 CARBURETOR FIG. 11 MUFFLER FIG. 13 CLUTCH FIG. 1 CYLINDER HEAD FIG. 2 CYLINDER FIG. 14 TRANSMISSION

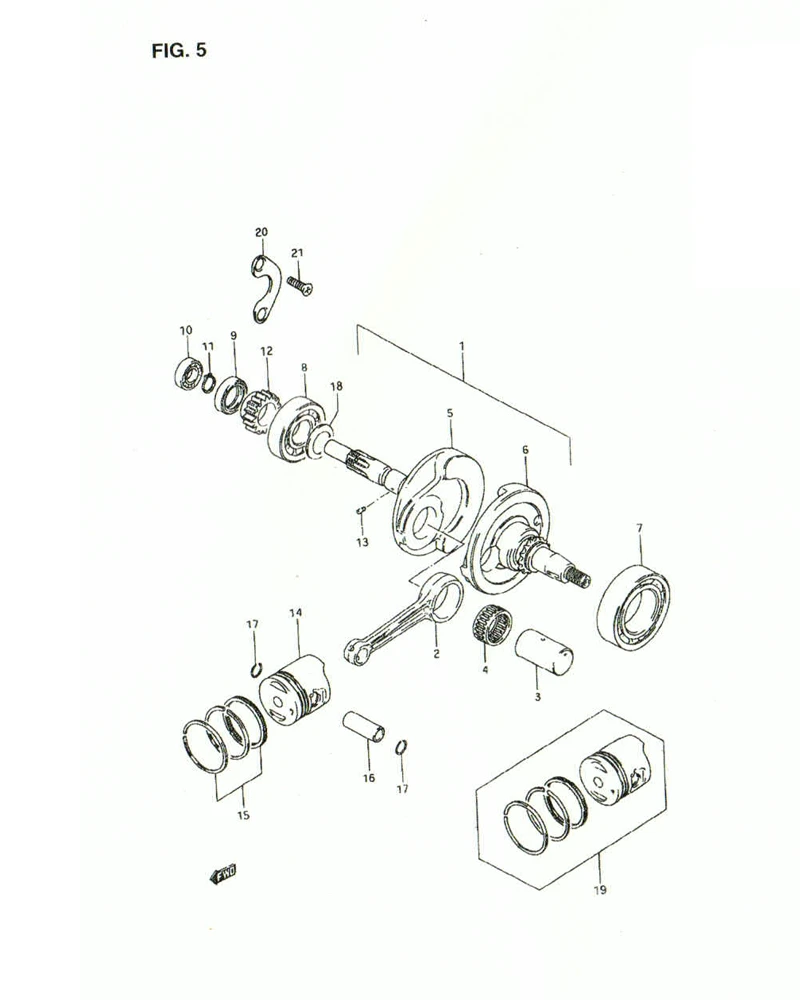

FIG. 5 CRANKSHAFT

No	No. Part	Description	Qty	Price Per Pcs
1-2	DISCONTINUE SUB: 12200-30D04-000	CRANKSHAFT ASSY	1	-
1-1	DISCONTINUE SUB: 12200-30D03-000	CRANKSHAFT ASSY	1	-
2	1261-30D01-0C0	.ROD, connecting	1	-
3	12211-20G00-0A0 SUB: 12211-09D11-0A0	.PIN,crank	1	Rp56.500
4	09263-28040-0B0 SUB: 09263-28029-0B0	.BEARING	1	Rp50.500
5	12220-30D10-000 SUB: 12220-30D02-000	.CRANKSHAFT, RH	1	Rp877.500
6-1	DISCONTINUE SUB: 12260-30D03-000	.CRANKSHAFT, LH	1	-
6-2	12260-30D04-000	.CRANKSHAFT, LH	1	-
7	09262-35021-0A0	BEARING	1	Rp246.000
8	09262-25124-000 SUB: 09262-25117-000	BEARING	1	Rp66.000
9	09282-20005-000	OIL SEAL	1	Rp49.000
10	08113-60010-000 SUB: 09262-12001-000	BEARING	1	Rp34.000
11	08331-41289-000 SUB: 08331-41286-000	CIRCLIP, crank brg, R	1	Rp4.000
12	16321-30A21-000 SUB: 16321-30A02-000	GEAR, oil pump drive	1	Rp319.500
13	04211-03059-000	PIN	1	-
14	DISCONTINUE SUB: 12111-30D03-0F0	PISTON	1	-
15	12140-30D10-000	RING SET, piston	1	Rp65.500
16	12151-30D01-000	PIN, pinston	1	Rp90.500
17	09381-14001-000	CIRCLIP	2	Rp2.500
18-1	09181-25051-000	SHIM (T:0.60)	1	Rp17.000
18-15	DISCONTINUE SUB: 09181-25065-000	SHIM (T:1.30)	1	-
18-14	09181-25179-000 SUB: 09181-25064-000	SHIM (T:1.25)	1	Rp24.500
18-13	DISCONTINUE SUB: 09181-25063-000	SHIM (T:1.20)	1	-
18-12	09181-25062-000	SHIM (T:1.15)	1	Rp19.500
18-11	09181-25061-000	SHIM (T:1.10)	1	Rp19.000
18-10	09181-25060-000	SHIM (T:1.05)	1	Rp18.500
18-9	09181-25167-000 SUB: 09181-25059-000	SHIM (T:1.00)	1	Rp18.000
18-8	09181-25058-000	SHIM (T:0.95)	1	Rp18.000
18-7	09181-25164-000 SUB: 09181-25057-000	SHIM (T:0.90)	1	Rp19.500
18-6	09181-25056-000	SHIM (T:0.85)	1	Rp18.500
18-5	09181-25162-000 SUB: 09181-25055-000	SHIM (T:0.80)	1	Rp17.000
18-4	09181-25054-000	SHIM (T:0.75)	1	Rp18.000
18-3	09181-25160-000 SUB: 09181-25053-000	SHIM (T:0.70)	1	Rp19.500
18-2	09181-25052-000	SHIM (T:0.65)	1	Rp18.000
19-1	DISCONTINUE SUB: 12100-30D00-050	PISTON SET (OS:0.5)	1	-
19-2	12100-30D01-100 SUB: 12100-30D00-100	PISTON SET (OS:1.0)	1	Rp596.000
20	12548-09D00-000	RETAINER, shaft oil seal)	1	Rp25.000
21	02122M0512A-000 SUB: 02122-05123-000	SCREW	2	Rp3.500
