Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 23 CYLINDER HEADFIG.3 CRANKCASEFIG. 8 CAM CHAINFIG. 10 AIR CLEANERFIG. 12 OIL PUMPFIG. 15 GEAR SHIFTINGFIG. 6 STARTER CLUTCH FIG. 4 CRANKCASE COVERFIG. 5 CRANKSHAFTFIG. 7 CAM SHAFT / VALVEFIG. 9 CARBURETORFIG. 11 MUFFLERFIG. 13 CLUTCHFIG. 1 CYLINDER HEAD FIG. 2 CYLINDERFIG. 14 TRANSMISSION

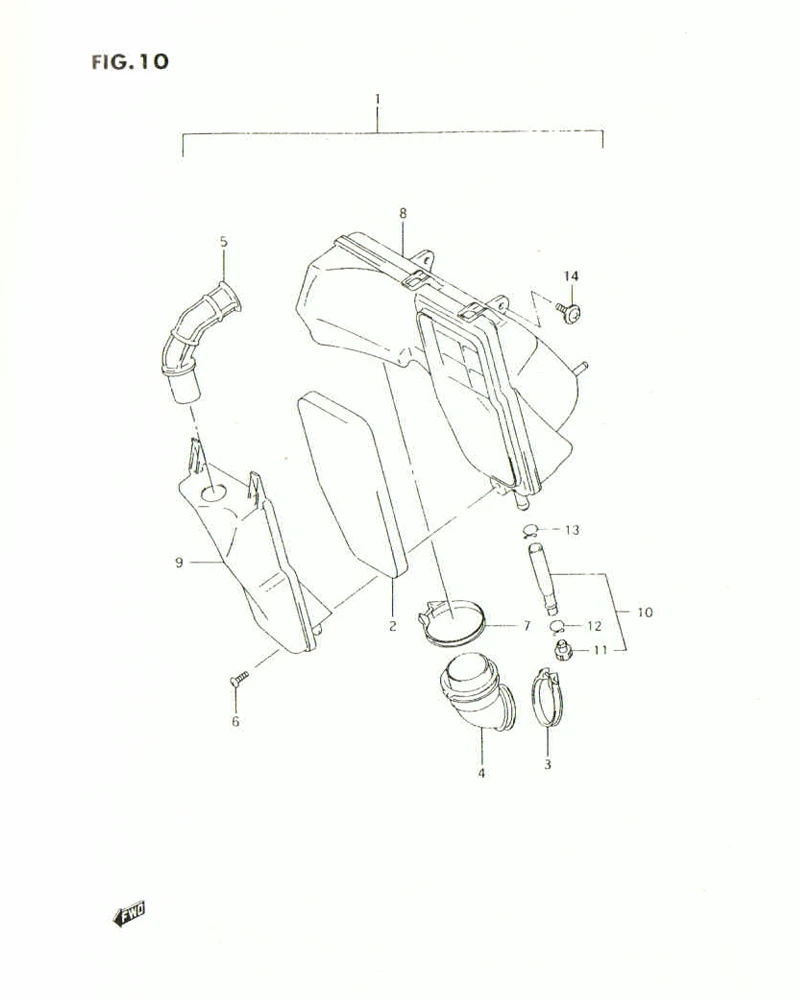

FIG. 10 AIR CLEANER

FIG. 10 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 13700-30D00L000		 CLEANSER ASSY, air 1 -
2 DISCONTINUE
SUB: 13781-30D00L000		 .FILTER 1 -
3 09402-40303-000
SUB: 09402-40306-000		 .CLAMP 1 Rp43.000
4 13881-30D00-000
SUB: 13881-30D00L000		 .TUBE, outlet 1 Rp32.500
5 13891-30D00-000
SUB: 13891-30D00L000		 .Ttube, inlet 1 Rp26.000
6 02142-0516A-000
SUB: 02142-05163-000		 .SCREW 1 Rp3.500
7 09402-52208-000 .CALMP 1 Rp31.500
8 DISCONTINUE
SUB: 13720-30D00L000		 .CASE, air cleaner 1 -
9 DISCONTINUE
SUB: 13740-30D00L000		 .CAP, air cleaner 1 -
10 13859-41B10-000
SUB: 13870-11078-000		 .TUBE, drain 1 Rp44.500
11 DISCONTINUE
SUB: 13877-38A00-000		 ..STOPPER 1 -
12 09401-11101-000 ..CLIP 1 Rp14.000
13 09401-13409-000 .CLIP 1 Rp8.500
14 09136-06062-000
SUB: 09136-06017-000		 SCREW (6X16) 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
