  5. FIG.3 CRANKCASE

Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 23 CYLINDER HEADFIG.3 CRANKCASEFIG. 8 CAM CHAINFIG. 10 AIR CLEANERFIG. 12 OIL PUMPFIG. 15 GEAR SHIFTINGFIG. 6 STARTER CLUTCH FIG. 4 CRANKCASE COVERFIG. 5 CRANKSHAFTFIG. 7 CAM SHAFT / VALVEFIG. 9 CARBURETORFIG. 11 MUFFLERFIG. 13 CLUTCHFIG. 1 CYLINDER HEAD FIG. 2 CYLINDERFIG. 14 TRANSMISSION

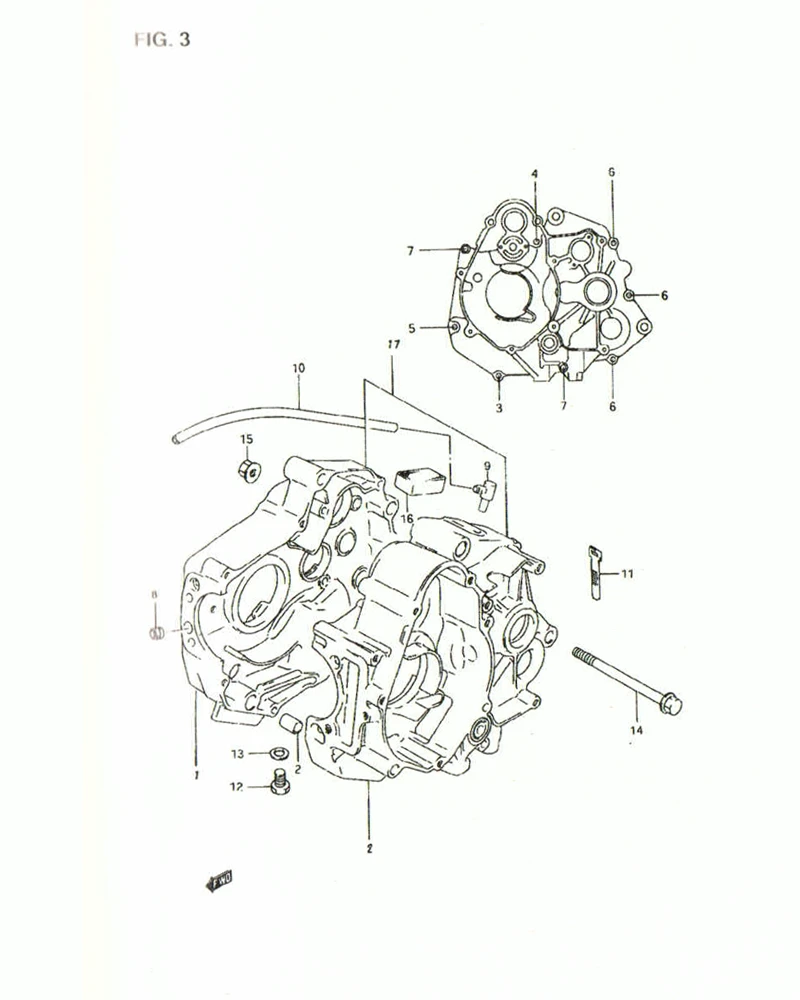

FIG.3 CRANKCASE

FIG.3 CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1-2 11320-30D00L000 CRANKCASE, comp LH 1 -
1-1 11310-30D00L000 CRANKCASE, comp RH 1 -
2 04211M13189-000
SUB: 04211-13189-000		 .PIN 2 Rp9.000
3 02112-0630B-000
SUB: 02112-06303-000		 .SCREW 1 Rp13.500
4 02112-0635B-000
SUB: 02112-06353-000		 .SCREW 1 Rp14.000
5 02112-0640A-000
SUB: 02112-06403-000		 .SCREW 1 Rp12.000
6 02112-0650B-000
SUB: 02112-06503-000		 .SCREW 3 Rp13.500
7 02112-0675B-000
SUB: 02112-06753-000		 .SCREW 2 Rp15.500
8 11329-30D00-000 .PLATE, oil jet 1 Rp19.000
9 DISCONTINUE
SUB: 16910-30D00-000		 .UNION, breather hose 1 -
10 09359-50824-600
SUB: 09359-50823-600		 HOSE 1 Rp69.000
11 DISCONTINUE
SUB: 09407-08401-000		 CLAMP 1 -
12 01500-1016A-000
SUB: 01500-10163-000		 PLUG, oil drain 1 Rp7.500
13 09169-10002-000 GASKET 1 -
14 09103-10087-000 BOLT (L:105) 2 Rp42.000
15 08319-3110A-000
SUB: 08319-31105-000		 NUT 2 Rp4.500
16 DISCONTINUE
SUB: 11186-30D00-000		 SEPARATOR, oil breather 2 -
17 DISCONTINUE
SUB: 11300-30D00L000		 CRANKCASE 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
