Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 23 CYLINDER HEADFIG.3 CRANKCASEFIG. 8 CAM CHAINFIG. 10 AIR CLEANERFIG. 12 OIL PUMPFIG. 15 GEAR SHIFTINGFIG. 6 STARTER CLUTCH FIG. 4 CRANKCASE COVERFIG. 5 CRANKSHAFTFIG. 7 CAM SHAFT / VALVEFIG. 9 CARBURETORFIG. 11 MUFFLERFIG. 13 CLUTCHFIG. 1 CYLINDER HEAD FIG. 2 CYLINDERFIG. 14 TRANSMISSION

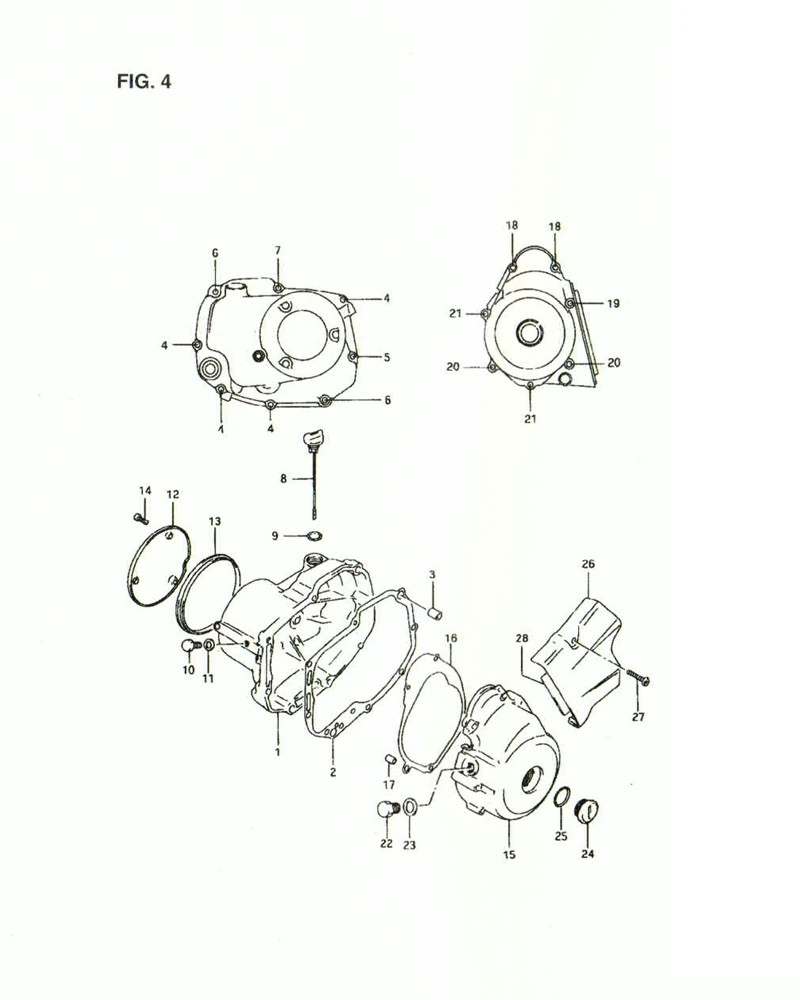

FIG. 4 CRANKCASE COVER

FIG. 4 CRANKCASE COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11340-30D10-000
SUB: 11340-30D10L000		 COVER, clutch 1 Rp279.500
2 11482-30A10-001
SUB: 11482-30A10L000		 GASKET, clutch cover 1 Rp12.000
3 04211M13189-000
SUB: 04211-13189-000		 PIN 2 Rp9.000
4 02112-0625A-000
SUB: 02112-06253-000		 SCREW 4 Rp4.000
5 02112-0635B-000
SUB: 02112-06353-000		 SCREW 1 Rp14.000
6 02112-0650B-000
SUB: 02112-06503-000		 SCREW 2 Rp13.500
7 02112-0655B-000
SUB: 02112-06553-000		 SCREW 1 Rp18.500
8 11971-09403-000
SUB: 11971-09402-000		 GAUGE, oil level 1 Rp46.000
9 09280-17003-000 O RING (D:3. 1, ID:16. 8) 1 Rp2.000
10 DISCONTINUE
SUB: 01500-08127-000		 PLUG, oil check 1 -
11 09168-08015-000 GASKET 1 Rp2.000
12 DISCONTINUE
SUB: 11383-30D10L000		 CAP, clutch cover 1 -
13 11389-09D00-000 CUSHION, cap 1 Rp167.000
14 02112-0516A-000
SUB: 02112-05163-000		 SCREW, cap 3 Rp5.500
15 DISCONTINUE
SUB: 11351-30D10L000		 COVER, magneto 1 -
16 11483-30A10-001
SUB: 11483-30A10L000		 GASKET, magneto cover 1 Rp10.000
17 04211-09129-000 PIN 2 Rp10.500
18 02112-06853-000 SCREW 2 -
19 02112-0630B-000
SUB: 02112-06303-000		 SCREW 1 Rp13.500
20 02112-0640A-000
SUB: 02112-06403-000		 SCREW 2 Rp12.000
21 02112-0650B-000
SUB: 02112-06503-000		 SCREW 2 Rp13.500
22 09247-12104-000 PLUG, top 1 Rp17.500
23 09168-12002-000 GASKET 1 Rp10.000
24 09259-26011-000 PLUG, hole 1 Rp55.500
25 09280-22008-000 O RING (D:3. 1, ID:22. 8) 1 Rp3.500
26 DISCONTINUE
SUB: 11361-30D10L000		 COVER, engine sprocket 1 -
27 02112-0630B-000
SUB: 02112-06303-000		 SCREW 2 Rp13.500
28 DISCONTINUE
SUB: 11362-30D00L000		 DAMPER, engine sprkt cover 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
