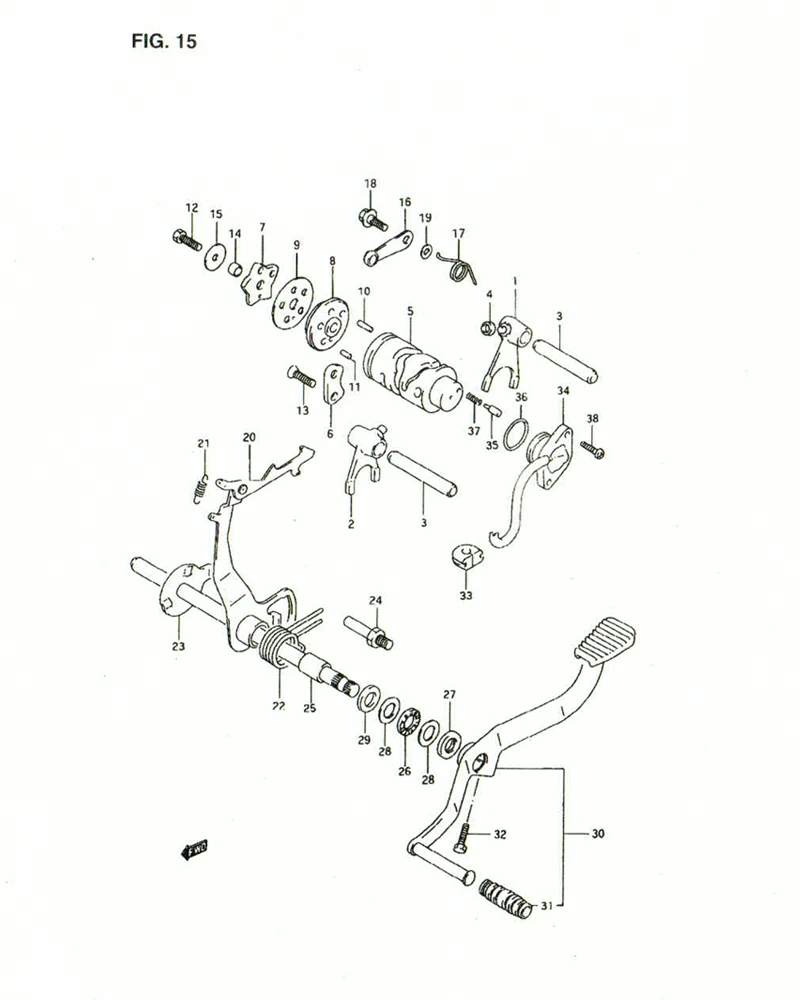

FIG. 15 GEAR SHIFTING

No	No. Part	Description	Qty	Price Per Pcs
1	25210-30A10-000	FORK, gear shift No. 1	1	Rp225.500
2	25220-30A10-000	FORK, gear shift No. 2	1	Rp344.500
3	DISCONTINUE SUB: 25421-35403-000	SHAFT, shift fork	2	-
4	09180-06086-000	SPACER, shift fork No. 1	1	Rp14.000
5	25310-30A40-000	CAM, gear shift	1	Rp757.500
6	DISCONTINUE SUB: 25341-09400-000	RETAINER, shift cam	1	-
7	DISCONTINUE SUB: 25381-30A20-000	PLATE, shift cam stoper	1	-
8	DISCONTINUE SUB: 25382-30A30-000	PLATE, shift cam No. 2	1	-
9	DISCONTINUE SUB: 25382-09D00-000	GUIDE, gr shf cam	1	-
10	09261-04002-000	PIN, shift cam	2	Rp8.000
11	09261-14012-000	PIN, shift cam	2	-
12	01500-0630A-000 SUB: 01500-06303-000	BOLT, shift cam pin	1	Rp4.000
13	02122-0616A-000 SUB: 02122-06163-000	SCREW, shift cam retainer	2	Rp3.500
14	04211M09109-000 SUB: 04211-09109-000	PIN, stopper plate	1	Rp5.500
15	08211-06221-000	STOPPER, shift cam pin	1	Rp10.500
16	25350-09D00-000	STOPPER, shift cam	1	Rp290.000
17	25355-09400-000	SPRING, shift cam	1	Rp105.000
18	09111-06041-000	BOLT, shift cam pin	1	Rp4.000
19	08211-06121-000	WASHER, shift cam	1	Rp7.500
20	25520-09D20-000 SUB: 25520-09D03-000	ARM, Gear shift	1	Rp401.000
21	09443-05019-000	SPRING, shift pawl	1	Rp6.500
22	09444-25002-000	SPRING, shift arm return	1	Rp39.000
23	25510-30D00-000	SHAFT,gear shift	1	Rp371.000
24	DISCONTINUE SUB: 25671-31C00-000	STOPPER, shift arm	1	-
25	09180-12036-000	SPACER, shift arm	1	Rp64.000
26	09263-12019-000	BEARING, gear shift arm	1	Rp60.500
27	09283-12010-000 SUB: 09285-12002-000	SEAL, shift shaft oil	1	Rp10.000
28	08211-12261-000	WASHER, shift shaft	1	Rp12.000
29	DISCONTINUE SUB: 08211-20264-000	WASHER, shift shaft	1	-
30	25610-30D00-200 SUB: 25610-30D00L000	LEVER ASSY, gear shift	1	Rp100.000
31-1	25652-16H11-000 SUB: 25652-16500-000	.RUBBER, gear pedal	1	Rp3.500
31-2	25652-16H11-000 SUB: 25652-16500L000	.RUBBER, gear pedal	1	Rp3.500
32	01500-0620B-000 SUB: 01500-06203-000	BOLT, shift lever	1	Rp3.000
33	31481-47000L000	GROMMET, position SW	1	-
34	37720-20G10-000 SUB: 37720-30D00-000	BASE ASSY, gear shift	1	Rp42.500
35	09209-05011-000	CONTACT, gear position	1	Rp5.500
36	09280-21008-000	O RING, gear shift	1	Rp2.500
37	09440-04010-000	SPRING, gear shift	1	Rp3.000
38	02112-0616A-000 SUB: 02112-06163-000	SCREW, gear shift	1	Rp3.500
