Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 23 CYLINDER HEAD FIG.3 CRANKCASE FIG. 8 CAM CHAIN FIG. 10 AIR CLEANER FIG. 12 OIL PUMP FIG. 15 GEAR SHIFTING FIG. 6 STARTER CLUTCH FIG. 4 CRANKCASE COVER FIG. 5 CRANKSHAFT FIG. 7 CAM SHAFT / VALVE FIG. 9 CARBURETOR FIG. 11 MUFFLER FIG. 13 CLUTCH FIG. 1 CYLINDER HEAD FIG. 2 CYLINDER FIG. 14 TRANSMISSION

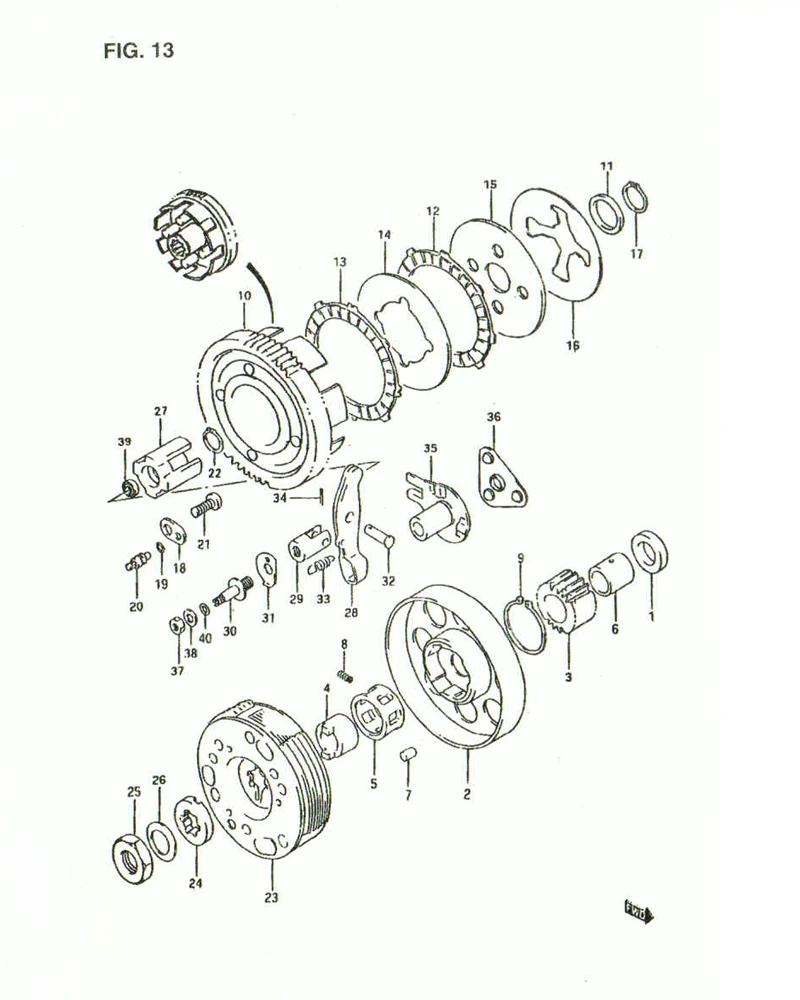

FIG. 13 CLUTCH

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 16325-30D00-000	SPACER, oil pump drive gear	1	-
2	21102-30A10-000	HOUSING, clutch	1	Rp1.065.000
3	21111-09D00-000	GEAR, primary dirve	1	Rp355.500
4	21631-02A04-000 SUB: 21631-02A03-000	RACE, one way clutch inr	1	Rp182.500
5	21652-30D01-000	RETAINER, one way clutch	1	Rp331.000
6	09180-16045-000	SPACER, primary drive gear	1	Rp91.500
7	09261-07006-000	ROLLER, one way clutch	3	Rp4.000
8	09440-02003-000	SPRING, one way clutch	1	Rp90.500
9	08331-3134A-000 SUB: 08331-31346-000	CIRCLIP, primary drive	1	Rp18.000
10	21200-30D02-000 SUB: 21200-30D01-000	GEAR ASSY, primary driven	1	Rp5.057.500
11	21412-10C00-000 SUB: 21412-30D00-000	SPACER, clutch spring	1	Rp54.500
12	21442-21D20-000 SUB: 21441-21D20-000	PLATE, clutch drive	3	Rp219.000
13	21442-21D20-000	PLATE, clutch driven No. 2	1	Rp219.000
14	21451-30D00-000 SUB: 21451-21D20-000	PLATE, clutch driven	3	Rp73.500
15	21461-30D00-000	PLATE, clutch pressure	1	Rp206.500
16	21481-21D20-000	SPRING, clutch	1	Rp129.500
17	08331-31219-000 SUB: 08331-31216-000	CIRCLIP, clutch spring	1	Rp16.500
18	DISCONTINUE SUB: 21499-30D00-000	RETAINER, clutch oil	1	-
19	DISCONTINUE SUB: 09280-40004-000	O RING, clutch oil	1	-
20	DISCONTINUE SUB: 09493-26007-000	JET, clutch oil	1	-
21	02112-0616A-000 SUB: 02112-06163-000	SCREW, clutch oil	1	Rp3.500
22	09380-17010-000	CIRCLIP, gear shift cluch	1	Rp24.500
23	21501-30D01-000 SUB: 21501-30D00-000	CLUTCH ASSY, shoe	1	Rp1.819.000
24	21541-30D00-000	SPACER, clutch assy shoe	1	Rp143.500
25	09140-16025-000	NUT, clutch assy shoe	1	Rp31.000
26	09164-16004-000	WASHER, clutch assy	1	Rp18.000
27	DISCONTINUE SUB: 23121-21D10-000	DIECE, clutch push	1	-
28	23221-09D01-000	ARM, clutch release	1	Rp187.000
29	23222-09D01-000	BOSS, clutch release	1	Rp154.000
30	23223-09D03-000 SUB: 23223-09D00-000	BOLT, clutch release	1	Rp100.000
31	DISCONTINUE SUB: 09169-08046-000	WASHER, cl release bolt	1	-
32	09200-07005-000	PIN, clutch release arm	1	Rp17.000
33	09443-06053-000	SPRING, clutch release	1	Rp12.000
34	DISCONTINUE SUB: 04111-16208-000	PIN, clutch release	1	-
35	DISCONTINUE SUB: 23230-30D01-000	GUIDE, release ball outer	1	-
36	DISCONTINUE SUB: 23250-35401-000	BALL, clutch release	1	-
37	09140-08019-000	NUT, clutch release	1	Rp17.500
38	DISCONTINUE SUB: 09160-08092-000	WASHER, clutch release	1	-
39	09266-16002-000	BEARING, PUSH, piece thrust	1	Rp109.500
40	09280-08012-000	O RING, release bolt	1	Rp23.500
