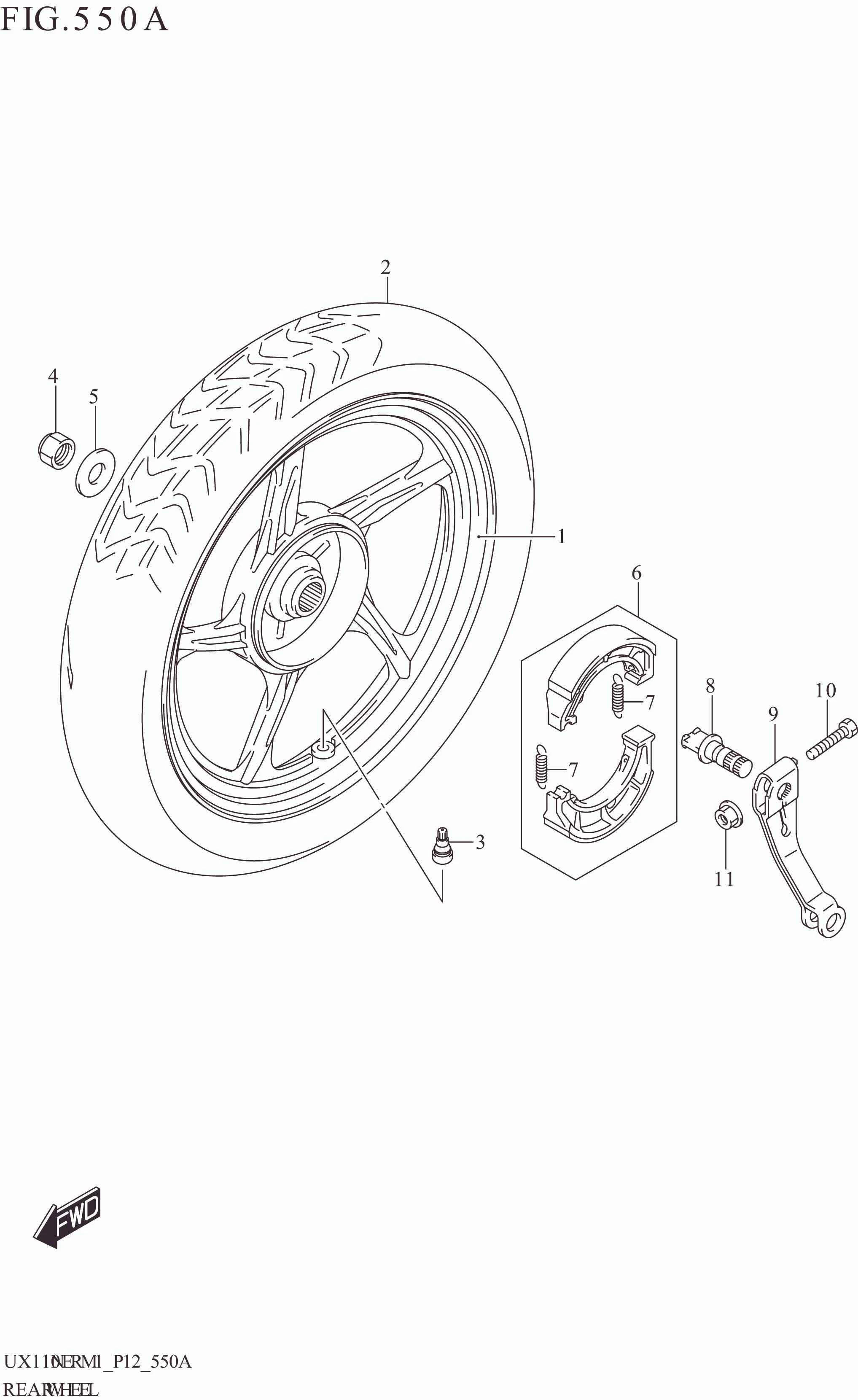

FIG. 550A REAR WHEEL

FIG. 550A REAR WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 64150-40J40-019
SUB: 64150-40J10-019		 WHEEL,REAR (14M/CXMT1.85,BLACK 1 Rp982.500
2 65110-49K00-000 TIRE,REAR 1 Rp467.000
3 43130-40J00-000 VALVE ASSY,WHEEL RIM (TR413) 1 Rp11.000
4 08319-2116A-000 NUT 1 Rp55.500
5 09160-16051-000 WASHER (16.1X36X3.8) 1 Rp27.000
6 64400-09J20-000 SHOE SET,REAR BRAKE 1 Rp76.000
7 65421-49K00-000 .SPRING,REAR BRAKE SHOE 2 Rp5.500
8 64441-09J10-000 CAM,REAR BRAKE 1 Rp28.500
9 64451-09J00-000 LEVER,REAR BRAKE CAM 1 Rp22.000
10 09100-06139-000 BOLT (6X31) 1 Rp4.000
11 08316-1006A-000 NUT 1 Rp2.000
12 08316-1006A-000 NUT 1 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
