Nex II Cross

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 352A LOCK SETFIG. 355A HANDLE SWITCHFIG. 401A FRAMEFIG. 407A STANDFIg. 417A PILLION FOOTRESTFIG. 420A FUEL TANKFIG. 432A LEG SHIELD COVERFIG. 435C FRONT LEG SHIELDFIG. 440A REAR LEG SHIELDFIG. 445A FRAME COVERFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 463A HANDLE COVERFIG. 467A HANDLE LEVERFIG. 474A REAR FENDERFIG. 478A LUGGAGE BOXFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 537A FRONT MASTER CYLINDERFIG. 545A REAR SHOCK ABSORBERFIG. 550A REAR WHEEL

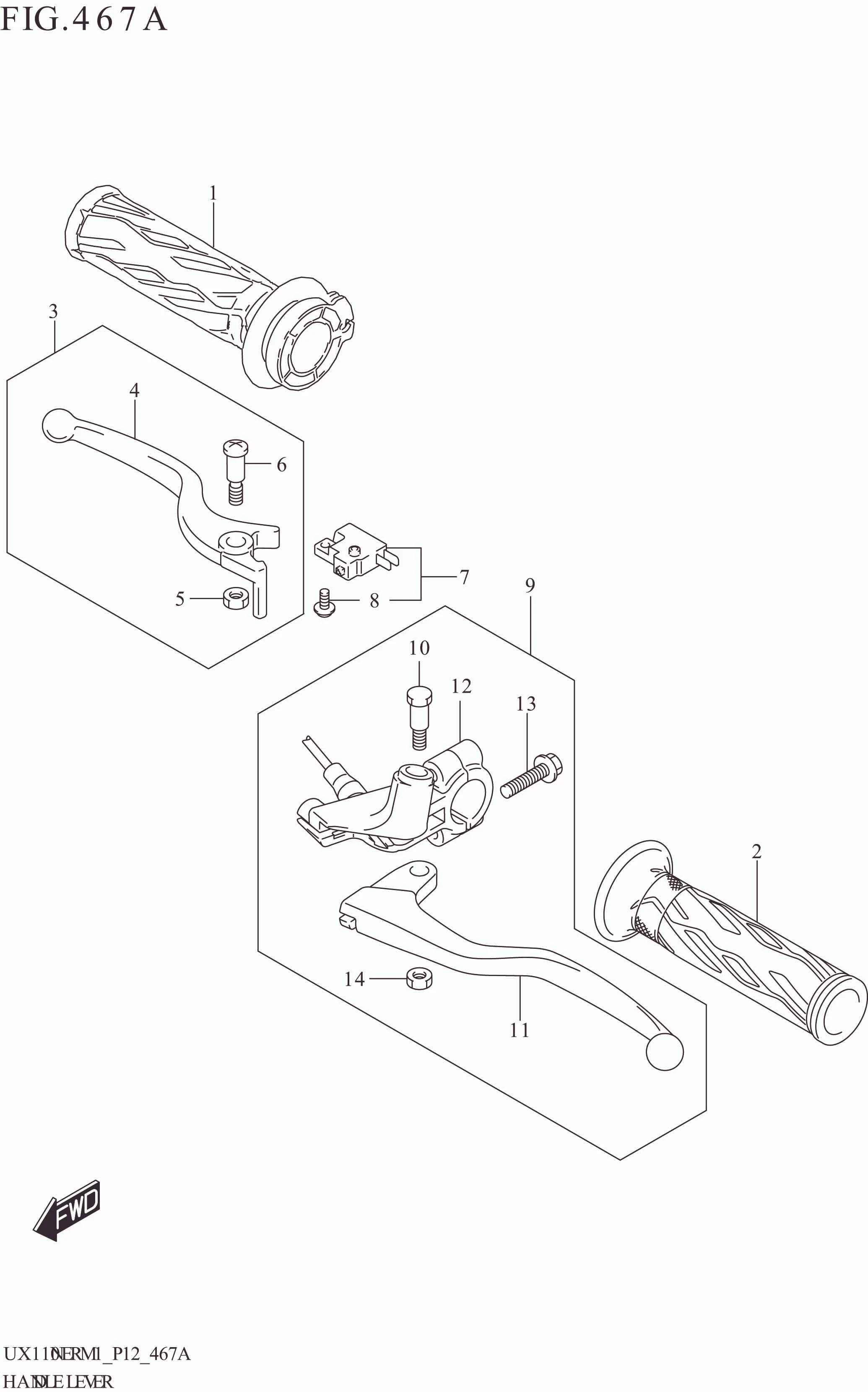

FIG. 467A HANDLE LEVER

FIG. 467A HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57110-12K01-000 GRIP,THROTTLE 1 Rp26.000
2 57211-40J01-000 GRIP LH 1 Rp18.500
3 57300-41HC0-000 LEVER ASSY,BRAKE 1 Rp55.000
4 57421-41HC0-000 .LEVER,BRAKE 1 Rp47.000
5 57433-09F00-000 .NUT,LEVER PIVOT 1 Rp3.500
6 09139-06114-000 .SCREW,6X28 (6X28) 1 Rp15.000
7 57460-41H00-000 SWITCH ASSY,STOP 1 Rp69.500
8 DISCONTINUE
SUB: 57465-17C00-000		 .SCREW 1 -
9 57500-13H90-000 LEVER ASSY,RR BRAKE & SWITCH 1 Rp149.000
10 57431-13H90-000 .BOLT,BRAKE LEVER PIVOT 1 Rp6.000
11 57621-13H90-000 .LEVER,REAR BRAKE 1 Rp44.000
12 59671-13H90-000 .HOLDER 1 Rp20.000
13 01547-0625A-000
SUB: 01547-0625B-000		 .BOLT 2 Rp6.500
14 08319-2106B-000 .NUT 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
