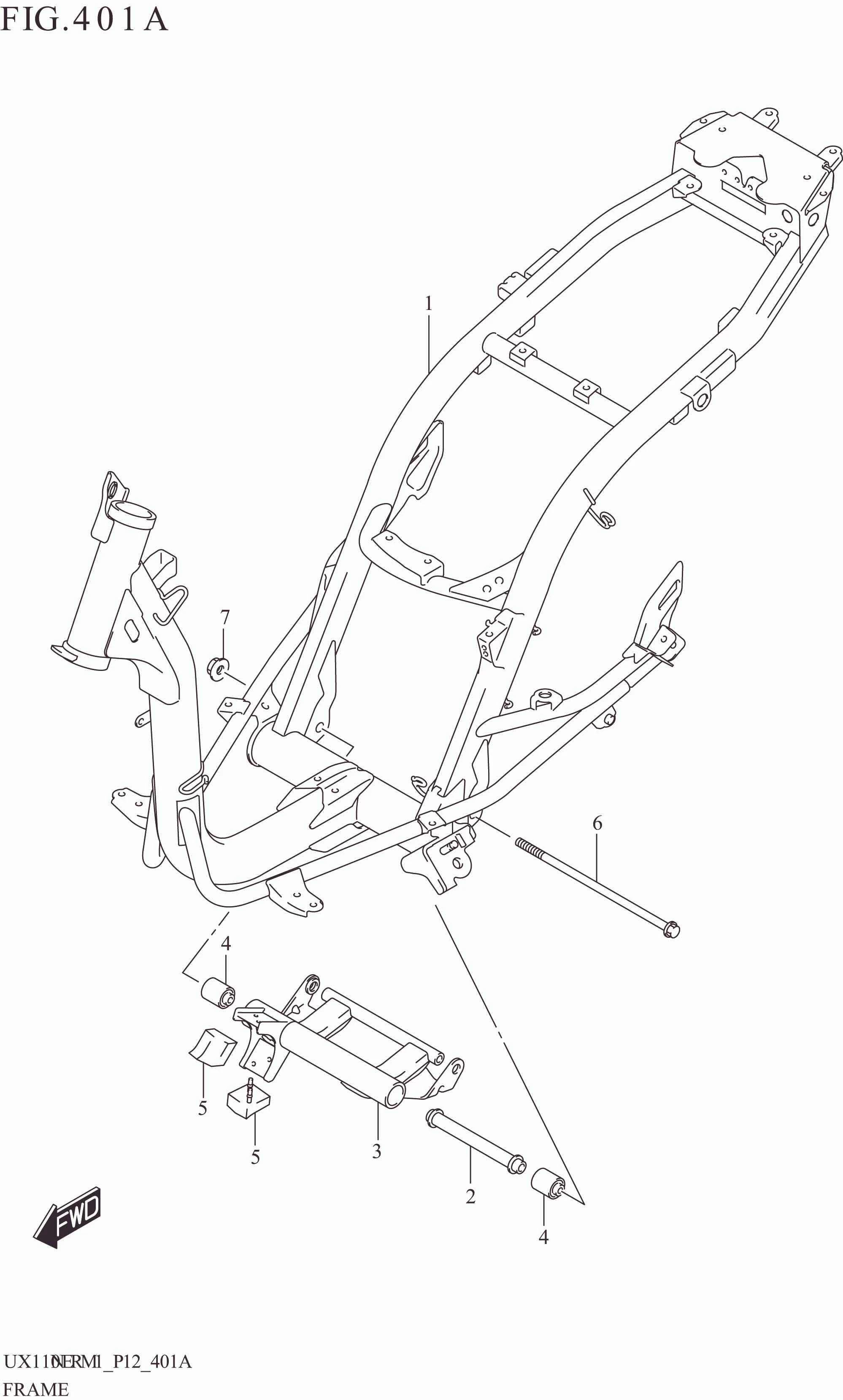

FIG. 401A FRAME

FIG. 401A FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 41100-49K00-000 FRAME 1 Rp2.110.500
2 41170-09J20-000 SPACER,CRANKCASE BRKT 1 Rp17.500
3 41180-49K00-000 BRACKET,CRANKCASE 1 Rp151.500
4 41184-49K00-000 BUSH,CRANKCASE BRKT 2 Rp42.000
5 41185-09J10-000 CUSHION 2 Rp11.500
6 09103-10449-000 BOLT (10X260) 1 Rp39.000
7 08319-3110A-000 NUT 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
