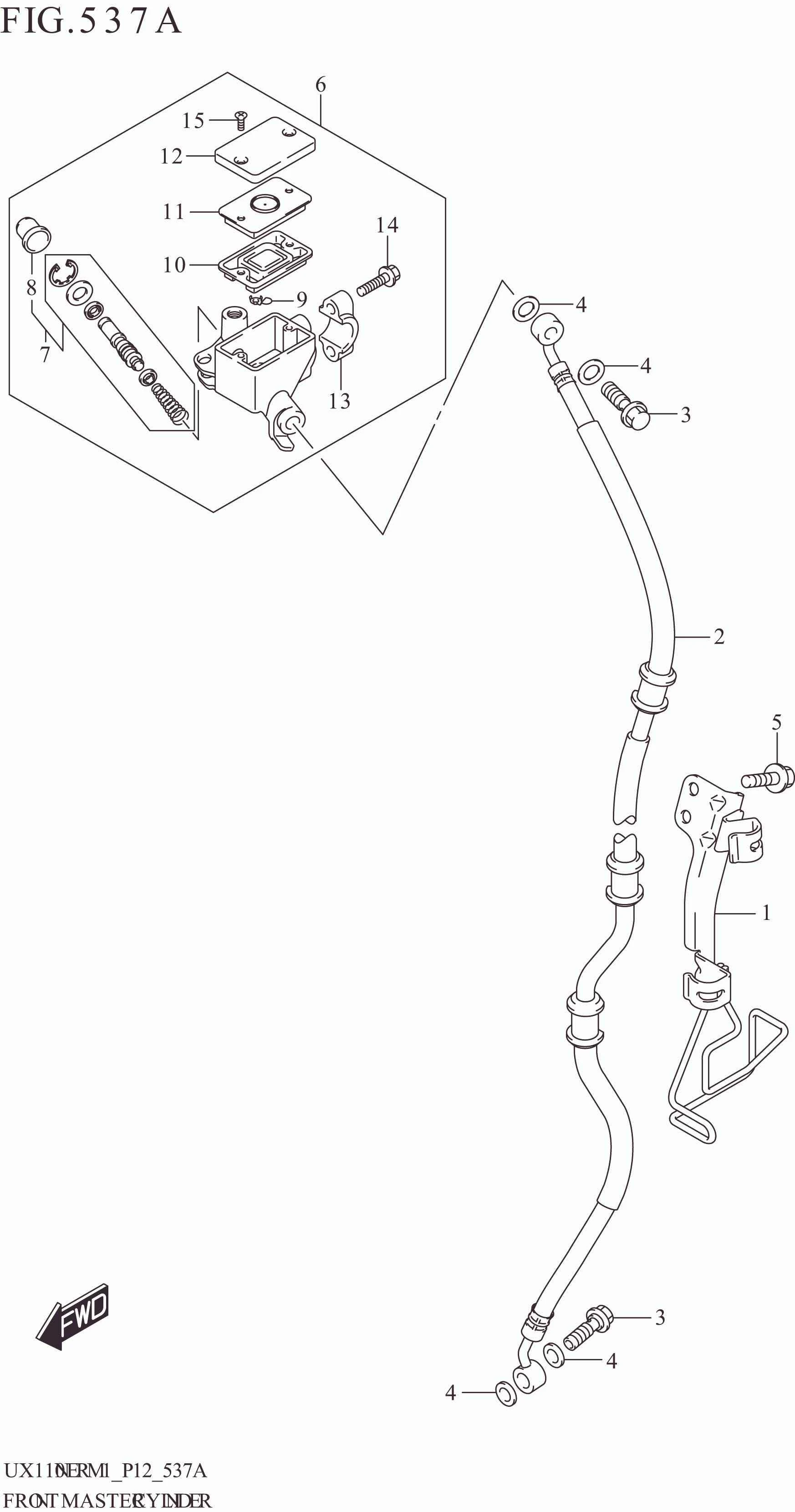

FIG. 537A FRONT MASTER CYLINDER

FIG. 537A FRONT MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 59260-09J40-000 CLAMP,FR BRAKE HOSE 1 Rp21.500
2 59480-49K10-000 HOSE,FRONT BRAKE 1 Rp109.500
3 59492-22J00-000 BOLT,BRAKE FLUID 2 Rp19.500
4 09168-10033-000 WASHER (10.2X15X1.4) 4 Rp8.500
5 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 2 Rp3.000
6 59600-41HB0-000 CYLINDER ASSY,FRONT MASTER 1 Rp897.000
7 59600-21810-000 .PISTON & CUP SET 1 Rp73.500
8 59666-44300-000 ..BOOT 1 Rp16.000
9 59664-32F00-000 .PROTECTOR 1 Rp20.500
10 59667-44B00-000 .DIAPHRAGM 1 Rp13.000
11 59668-21D20-000 .PLATE,DIAPHRAGM 1 Rp3.000
12 59669-21D20-000 .CAP 1 Rp40.000
13 59671-36500-000 .HOLDER,MASTER CYLINDER 1 Rp23.000
14 59675-02FA0-000 .BOLT (6X22) 1 Rp9.000
15 69689-49300-000 .SCREW,RESERVOIR CAP 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
