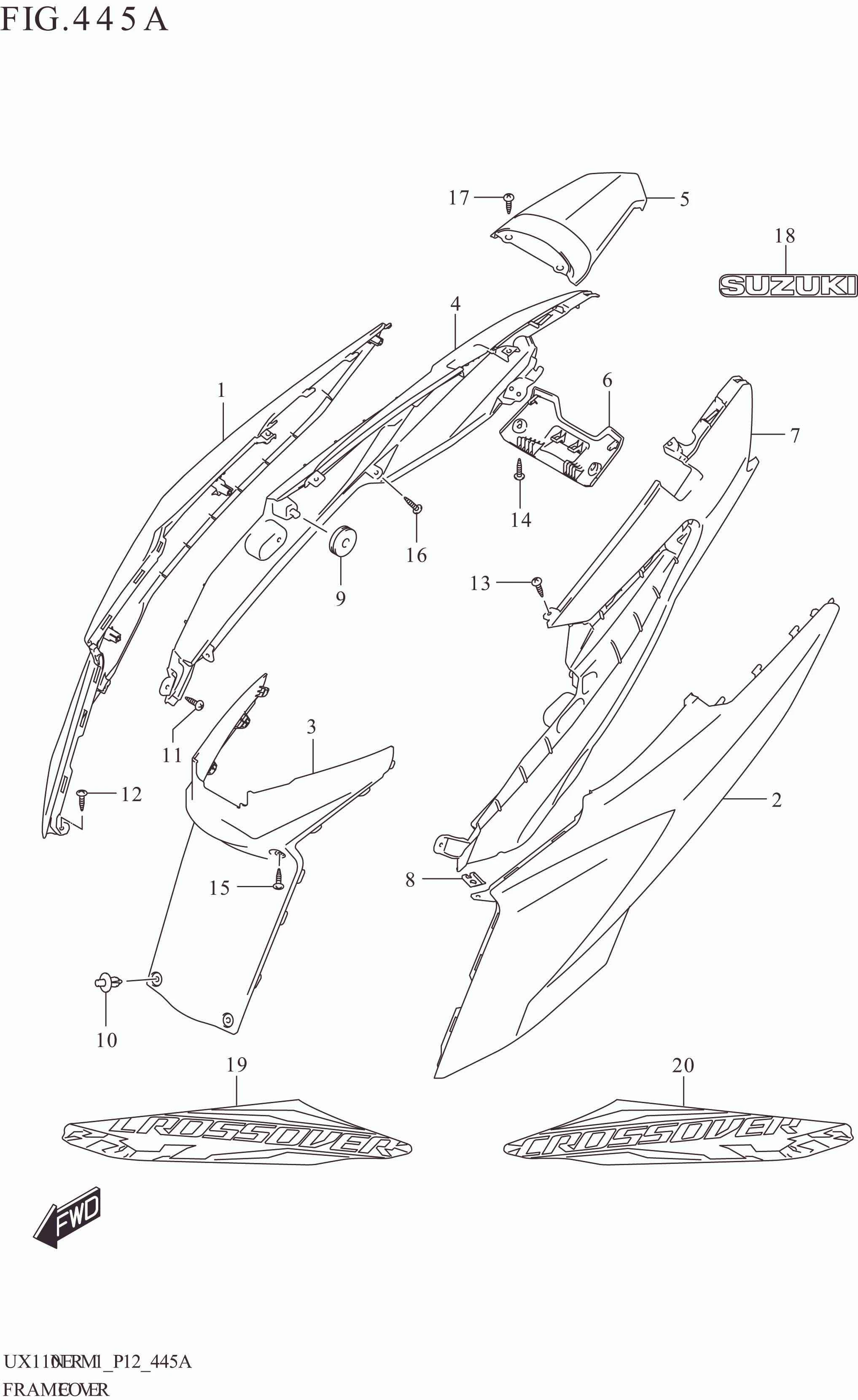

FIG. 445A FRAME COVER

FIG. 445A FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1 47111-49K00-291 COVER,FRAME,RH (BLACK) 1 Rp130.500
2 47211-49K00-291 COVER,FRAME,LH (BLACK) 1 Rp130.500
3 47131-49K00-000 COVER,FRAME FRONT 1 Rp47.500
4 47121-49K00-000 COVER,FRAME LOWER,R 1 Rp41.500
5 47141-49K00-000 COVER,FRAME CENTER 1 Rp40.500
6 47151-49K00-000 COVER,FRAME CENTER LOWER 1 Rp33.000
7 47221-49K00-000 COVER,FRAME LOWER,L 1 Rp41.500
8 09148-04019-000 NUT 8 Rp6.500
9 48169-12JA0-000
SUB: 09320-08018-000		 CUSHION (8X26X7) 2 Rp15.000
10 09409-06341-000 CLIP (5.9X20.5) 2 Rp4.000
11 03541-0416A-000 SCREW 6 Rp3.500
12 03541-0416A-000 SCREW 4 Rp3.500
13 03541-0416A-000 SCREW 2 Rp3.500
14 03541-0416B-000 SCREW 2 Rp4.500
15 03541-0416B-000 SCREW 2 Rp4.500
16 03541-0416B-000 SCREW 2 Rp4.500
17 03541-0416A-000 SCREW 2 Rp3.500
18 68171-23K20-000 EMBLEM,SUZUKI 1 Rp11.000
19-1 68132-49K50-291 TAPE,FRAME COVER,R (BLACK) 1 Rp27.500
19-2 68132-49K50-APM TAPE,FRAME COVER,R (RED,BLACK) 1 Rp27.500
20-1 68142-49K50-291 TAPE,FRAME COVER,L (BLACK) 1 Rp27.500
20-2 68142-49K50-APM TAPE,FRAME COVER,L (RED,BLACK) 1 Rp27.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
