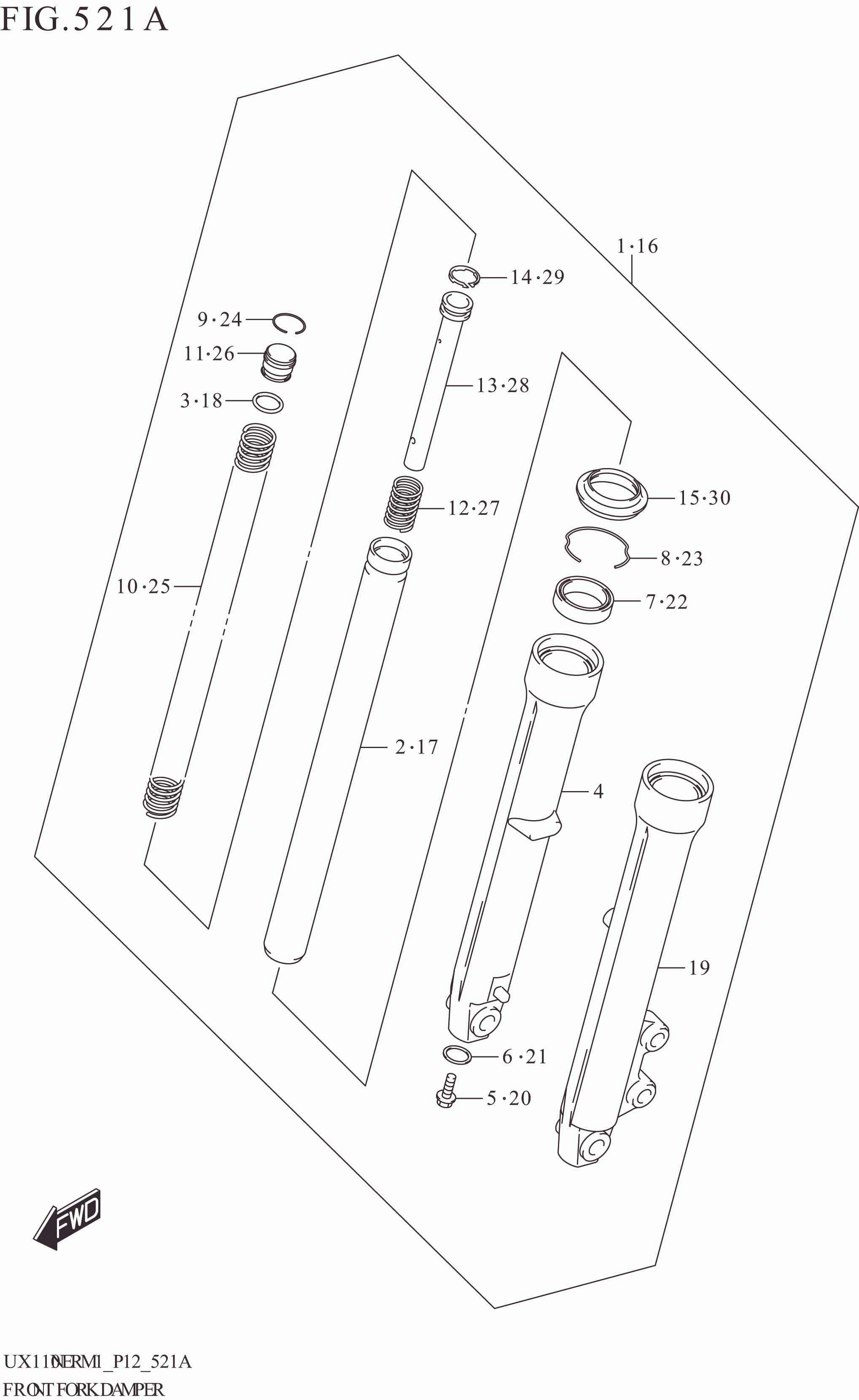

FIG. 521A FRONT FORK DAMPER

FIG. 521A FRONT FORK DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1 51103-49K00-291 DAMPER ASSY,FR FORK RH (BLACK) 1 Rp410.500
2 51110-09J00-000 .PIPE FORK 1 Rp183.500
3 51117-09G00-000 .O RING 1 Rp3.500
4 51131-09J00-291 .TUBE,OUTER,R (BLACK) 1 Rp201.000
5 51147-42AA0-000 .BOLT,CENTER (8X18) 1 Rp8.500
6 51148-31030-000 .GASKET 1 Rp4.000
7 51153-09G00-000 .SEAL,OIL 1 Rp16.500
8 51156-09G00-000 .RING,SNAP 1 Rp4.500
9 51169-09G00-000 .RING,STOPPER 1 Rp4.000
10 51171-49K00-000 .SPRING,FR 1 Rp17.500
11 51175-09G00-000 .CAP 1 Rp10.500
12 51177-47E00-000 .SPRING,REBOUND 1 Rp5.000
13 51194-49K00-000 .CYLINDER 1 Rp27.000
14 51196-16H00-000 .RING,PISTON 1 Rp7.000
15 51571-09G00-000 .SEAL,DUST 1 Rp8.000
16 51104-49K00-291 DAMPER ASSY,FR FORK LH (BLACK) 1 Rp410.500
17 51110-09J00-000 .PIPE FORK 1 Rp183.500
18 51117-09G00-000 .O RING 1 Rp3.500
19 51141-09J00-291 .TUBE,OUTER,L (BLACK) 1 Rp201.000
20 51147-42AA0-000 .BOLT,CENTER (8X18) 1 Rp8.500
21 51148-31030-000 .GASKET 1 Rp4.000
22 51153-09G00-000 .SEAL,OIL 1 Rp16.500
23 51156-09G00-000 .RING,SNAP 1 Rp4.500
24 51169-09G00-000 .RING,STOPPER 1 Rp4.000
25 51171-49K00-000 .SPRING,FR 1 Rp17.500
26 51175-09G00-000 .CAP 1 Rp10.500
27 51177-47E00-000 .SPRING,REBOUND 1 Rp5.000
28 51194-49K00-000 .CYLINDER 1 Rp27.000
29 51196-16H00-000 .RING,PISTON 1 Rp7.000
30 51571-09G00-000 .SEAL,DUST 1 Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
