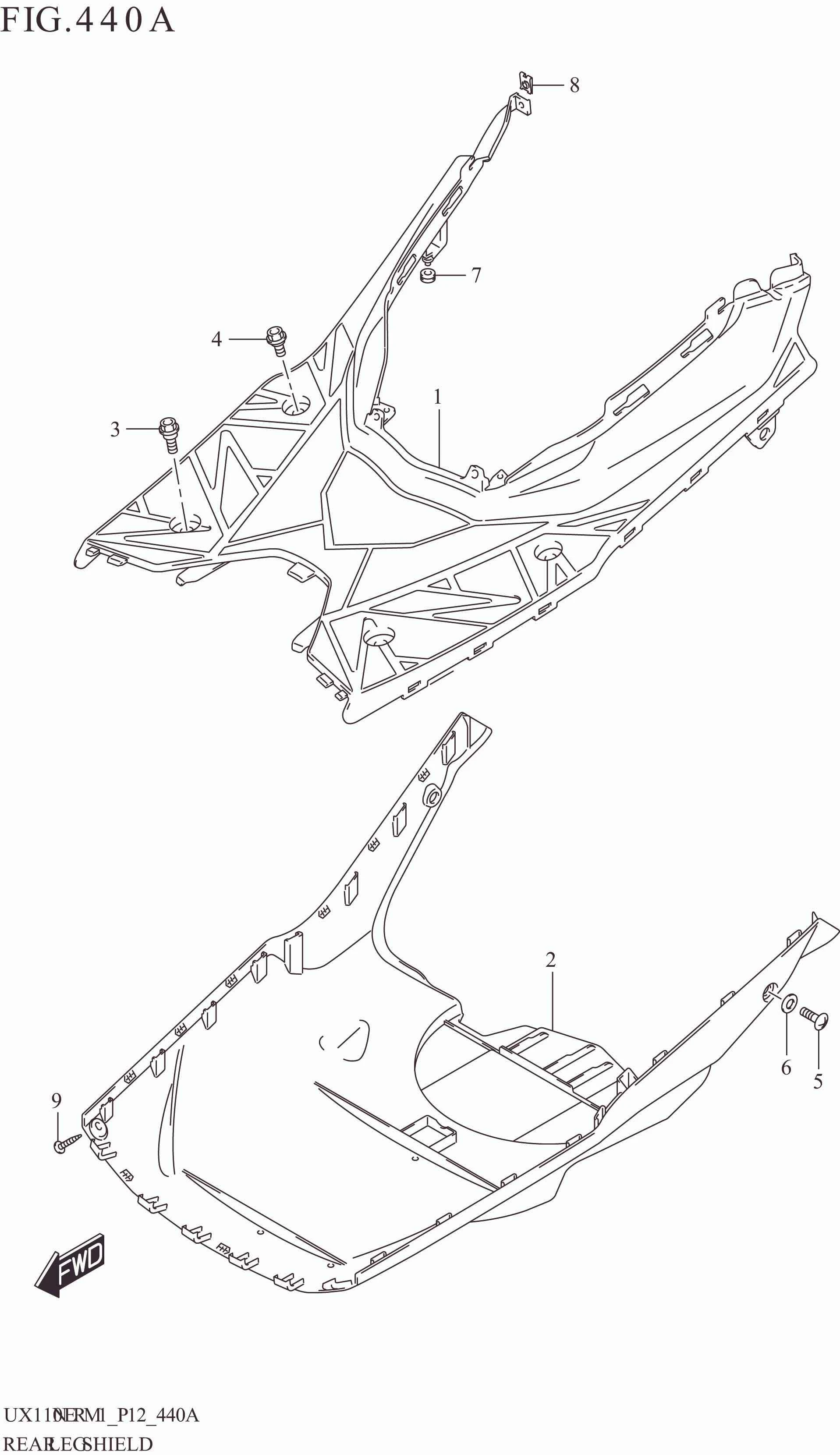

FIG. 440A REAR LEG SHIELD

FIG. 440A REAR LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 48121-49K00-000 FOOTBOARD,LEG SHIELD 1 Rp85.000
2 48131-49K00-000 COVER,UNDER 1 Rp79.500
3 09111-06072-000 BOLT (6X17.8) 2 Rp3.500
4 09111-06102-000 BOLT (6X14.8) 2 Rp3.500
5 02142-0612A-000
SUB: 02142-0612B-000		 SCREW 2 Rp4.000
6 09160-06126-000 WASHER (6.5X14X2.0) 2 Rp3.000
7 48169-12JA0-000
SUB: 09320-08018-000		 CUSHION (8X26X7) 2 Rp15.000
8 09148-04019-000 NUT 4 Rp6.500
9 03541-0416B-000 SCREW 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
