Nex II Cross

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 352A LOCK SETFIG. 355A HANDLE SWITCHFIG. 401A FRAMEFIG. 407A STANDFIg. 417A PILLION FOOTRESTFIG. 420A FUEL TANKFIG. 432A LEG SHIELD COVERFIG. 435C FRONT LEG SHIELDFIG. 440A REAR LEG SHIELDFIG. 445A FRAME COVERFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 463A HANDLE COVERFIG. 467A HANDLE LEVERFIG. 474A REAR FENDERFIG. 478A LUGGAGE BOXFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 537A FRONT MASTER CYLINDERFIG. 545A REAR SHOCK ABSORBERFIG. 550A REAR WHEEL

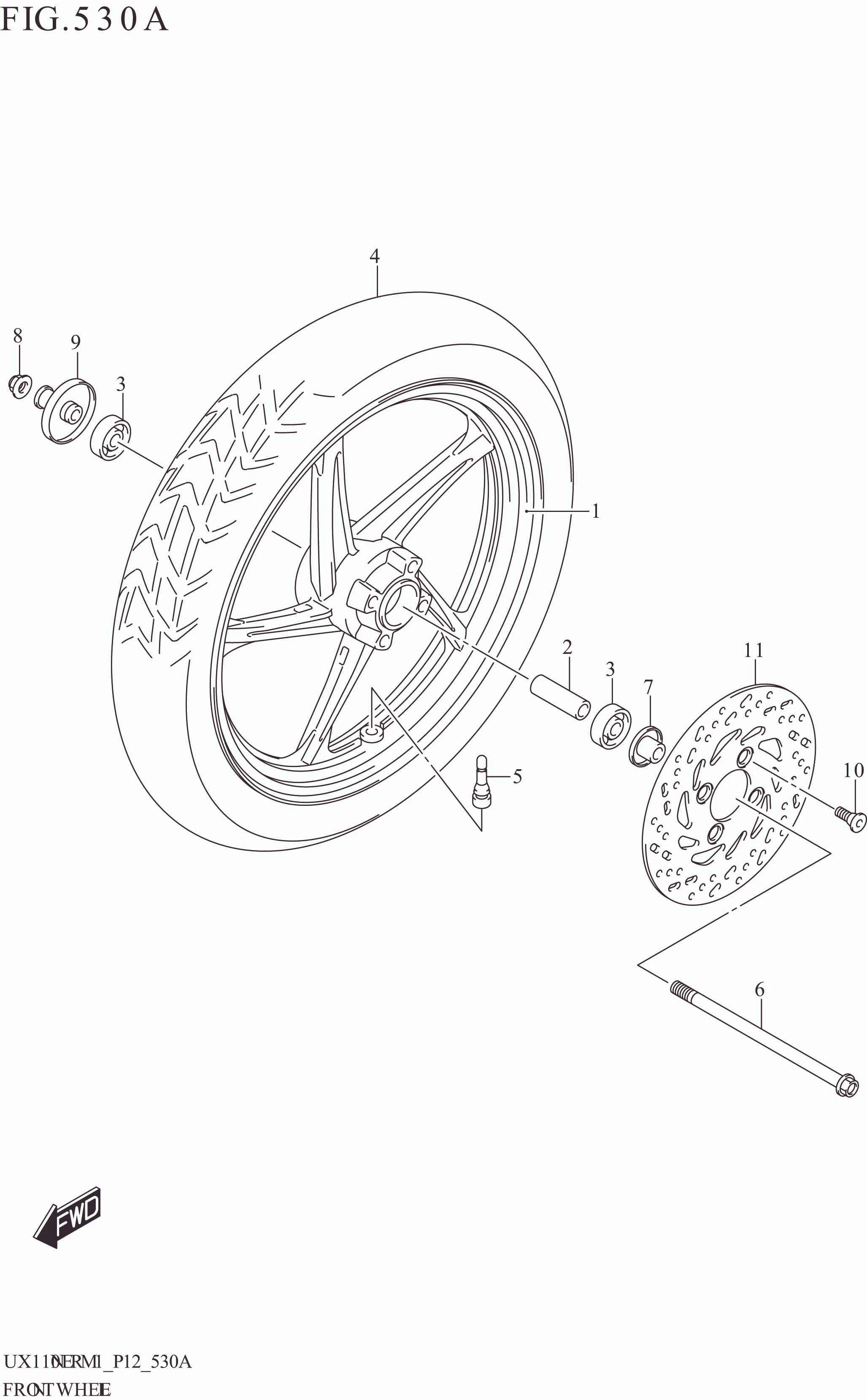

FIG. 530A FRONT WHEEL

FIG. 530A FRONT WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 54111-40J20-019
SUB: 54111-40J11-019		 WHEEL,FRONT (14M/CXMT1.85,BLACK) 1 Rp866.500
2 DISCONTINUE
SUB: 09180-10148-000		 SPACER (10.1X16X51) 1 -
3 08123-6300B-000 BEARING 2 Rp31.500
4 55110-49K00-000 TIRE,FRONT 1 Rp398.000
5 43130-40J00-000 VALVE ASSY,WHEEL RIM (TR413) 1 Rp11.000
6 54711-13H00-000 AXLE,FRONT 1 Rp13.000
7 54750-46100-000 SPACER,FR AXLE,L 1 Rp12.500
8 08319-3110A-000 NUT 1 Rp4.500
9 54740-44K00-000 SPACER,FRONT AXLE,R 1 Rp27.500
10 59218-09G10-000 BOLT,FRONT BRAKE DISC (8X21) 4 Rp7.000
11 59221-40J00-000 DISC,FR BRAKE 1 Rp117.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
