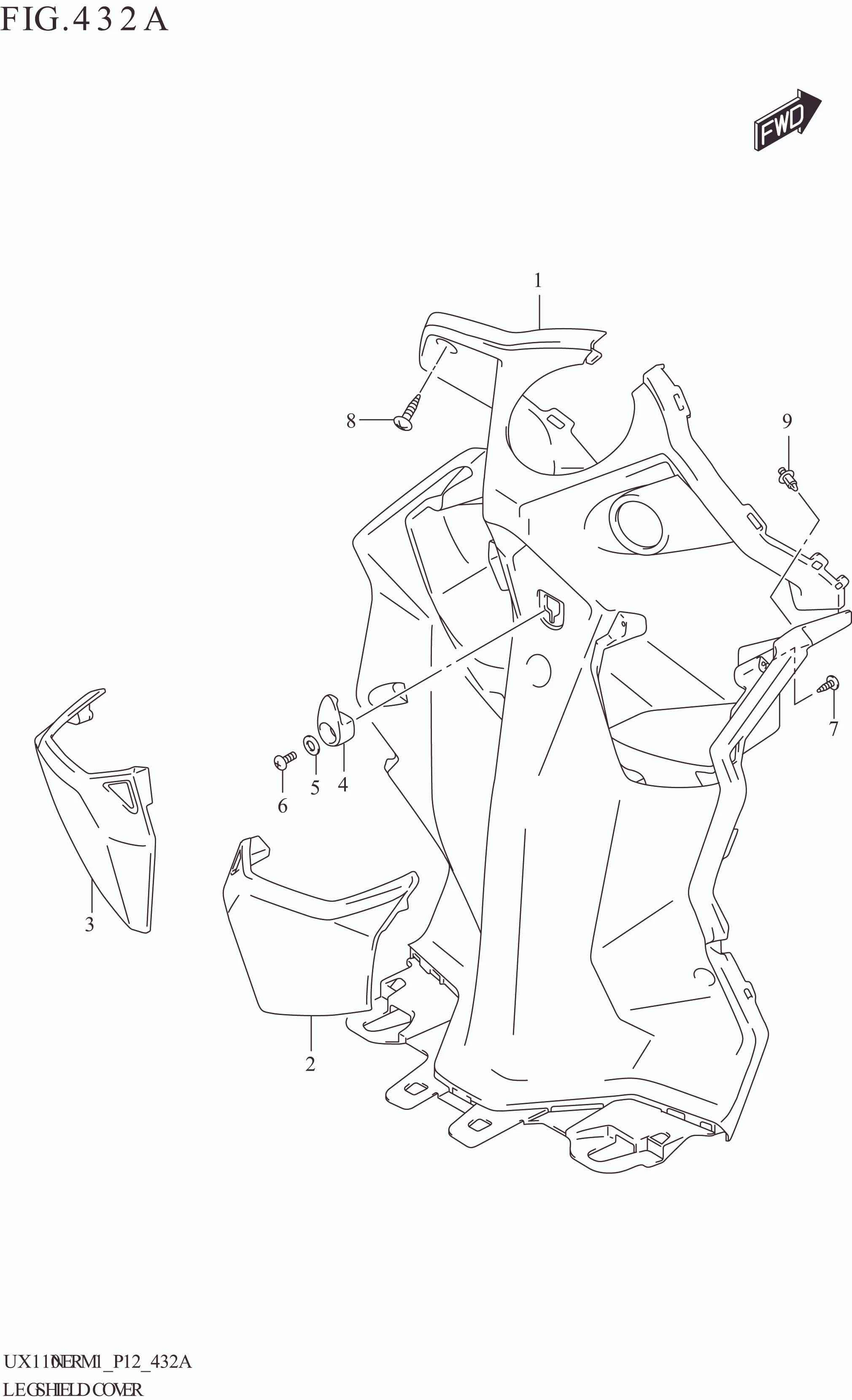

FIG. 432A LEG SHIELD COVER

FIG. 432A LEG SHIELD COVER
No No. Part Description Qty Price Per Pcs Remarks
1 92111-49K00-000 COVER,LEG SHIELD 1 Rp84.000
2 92112-49K00-000 RACK,LEG SHIELD,R 1 Rp46.000
3 92113-49K00-000 RACK,LEG SHIELD,L 1 Rp49.000
4 92171-32G00-291 HOOK,LEG SHIELD (BLACK) 1 Rp15.500
5 09160-06126-000 WASHER (6.5X14X2.0) 1 Rp3.000
6 02142-0612A-000
SUB: 02142-0612B-000		 SCREW 1 Rp4.000
7 03541-0416A-000 SCREW 8 Rp3.500
8 03541-0416B-000 SCREW 6 Rp4.500
9 09409-06341-000 CLIP (5.9X20.5) 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
