Nex II Cross

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 352A LOCK SETFIG. 355A HANDLE SWITCHFIG. 401A FRAMEFIG. 407A STANDFIg. 417A PILLION FOOTRESTFIG. 420A FUEL TANKFIG. 432A LEG SHIELD COVERFIG. 435C FRONT LEG SHIELDFIG. 440A REAR LEG SHIELDFIG. 445A FRAME COVERFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 463A HANDLE COVERFIG. 467A HANDLE LEVERFIG. 474A REAR FENDERFIG. 478A LUGGAGE BOXFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 537A FRONT MASTER CYLINDERFIG. 545A REAR SHOCK ABSORBERFIG. 550A REAR WHEEL

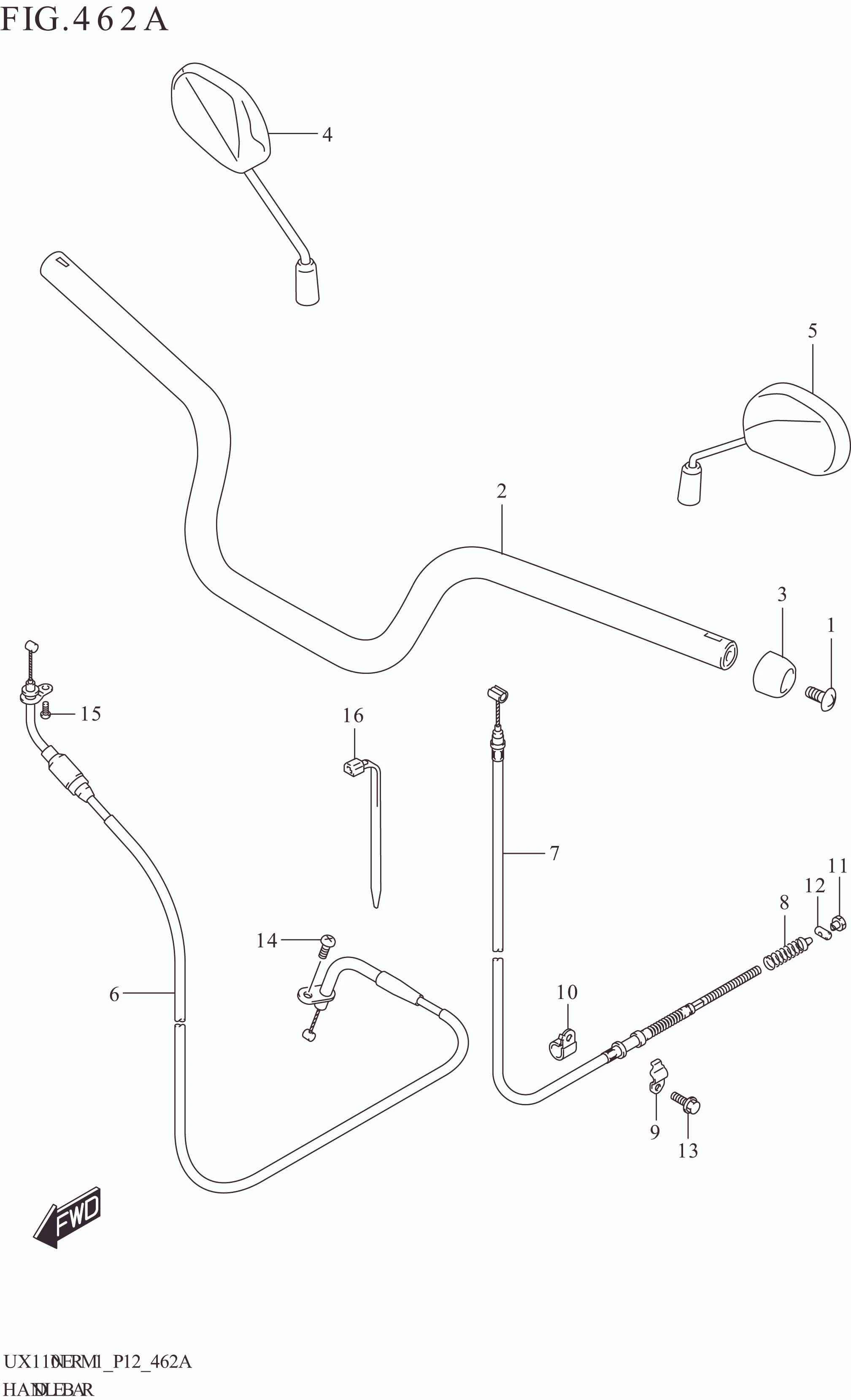

FIG. 462A HANDLEBAR

FIG. 462A HANDLEBAR
No No. Part Description Qty Price Per Pcs Remarks
1 48217-10J00-000 SCREW,LEG CENTER LOWER 2 Rp6.500
2 56110-49K00-000 HANDLEBAR 1 Rp190.500
3 57216-49K00-000 CAP,GRIP END 2 Rp6.500
4 56500-09J12-000 MIRROR ASSY, REAR VIEW RH 1 Rp82.000
5 56600-09J12-000 MIRROR ASSY, REAR VIEW LH 1 Rp82.000
6 58300-49KA0-000 CABLE ASSY,THROTTLE 1 Rp103.500
7 58510-49K00-000 CABLE,REAR BRAKE 1 Rp100.500
8 58562-09J00-000 SPRING,REAR BRAKE CABLE 1 Rp3.000
9 58575-09J00-000 PLATE,REAR BRAKE CABLE 1 Rp3.500
10 58577-46G31-000 CLAMP,RR BRAKE CABLE 1 Rp10.500
11 09150-06010-000 NUT 1 Rp4.500
12 09209-11002-000 PIN (11X18) 1 Rp7.500
13 01547-0610A-000 BOLT 1 Rp3.000
14 DISCONTINUE
SUB: 02112-0510A-000		 SCREW 1 -
15 02112-0512A-000 SCREW 1 Rp2.500
16 36990-25G20-000 CLAMP (L:165) 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
