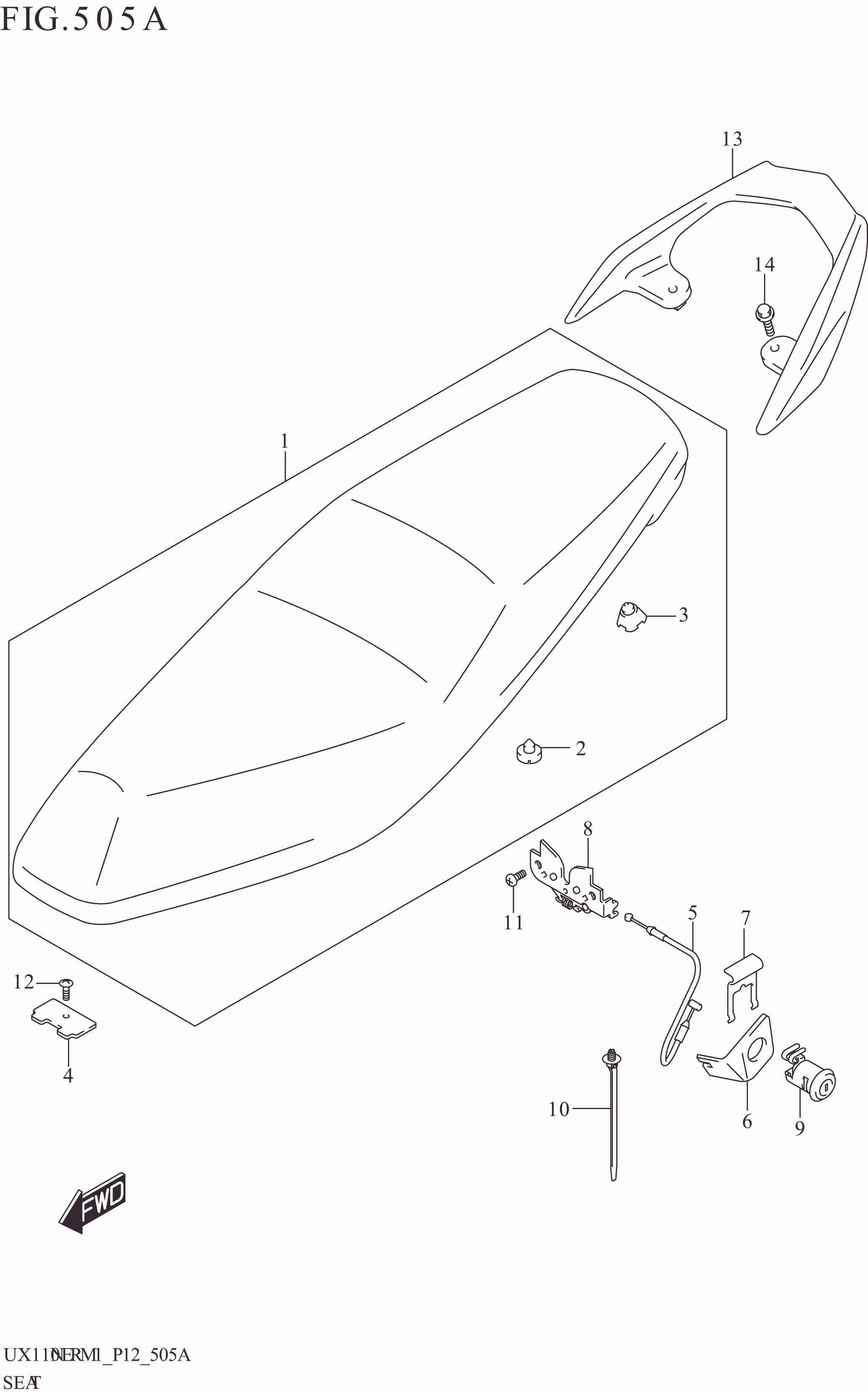

FIG. 505A SEAT

FIG. 505A SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 45100-49K50-B5K SEAT ASSY 1 Rp314.000
2 45148-13H30-000 .CUSHION,SEAT MOUNT 2 Rp14.500
3 45148-20G80-000 .CUSHION,SEAT MOUNT 2 Rp3.500
4 45271-41H00-000 PLATE,SEAT HINGE 1 Rp7.500
5 45280-49K00-000 CABLE,SEAT LOCK 1 Rp17.500
6 45288-41H00-000 GUIDE,SEAT LOCK CABLE 1 Rp7.500
7 45289-11F00-000 PLATE,SEAT LOCK ASSY 1 Rp4.000
8 45700-47G00-000 BRACKET,STRIKER SUPPORT 1 Rp31.500
9 95700-14F50-000 LOCK ASSY,SEAT 1 Rp77.000
10 09407-17403-000 CLAMP (L:154) 1 Rp3.500
11 01547-0610A-000
SUB: 02112-0610A-000		 SCREW 2 Rp3.000
12 02142-0512A-000 SCREW 1 Rp3.500
13 46211-49K00-019 HANDLE,PILLION RIDER (BLACK) 1 Rp190.500
14 01550-0825A-000 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
