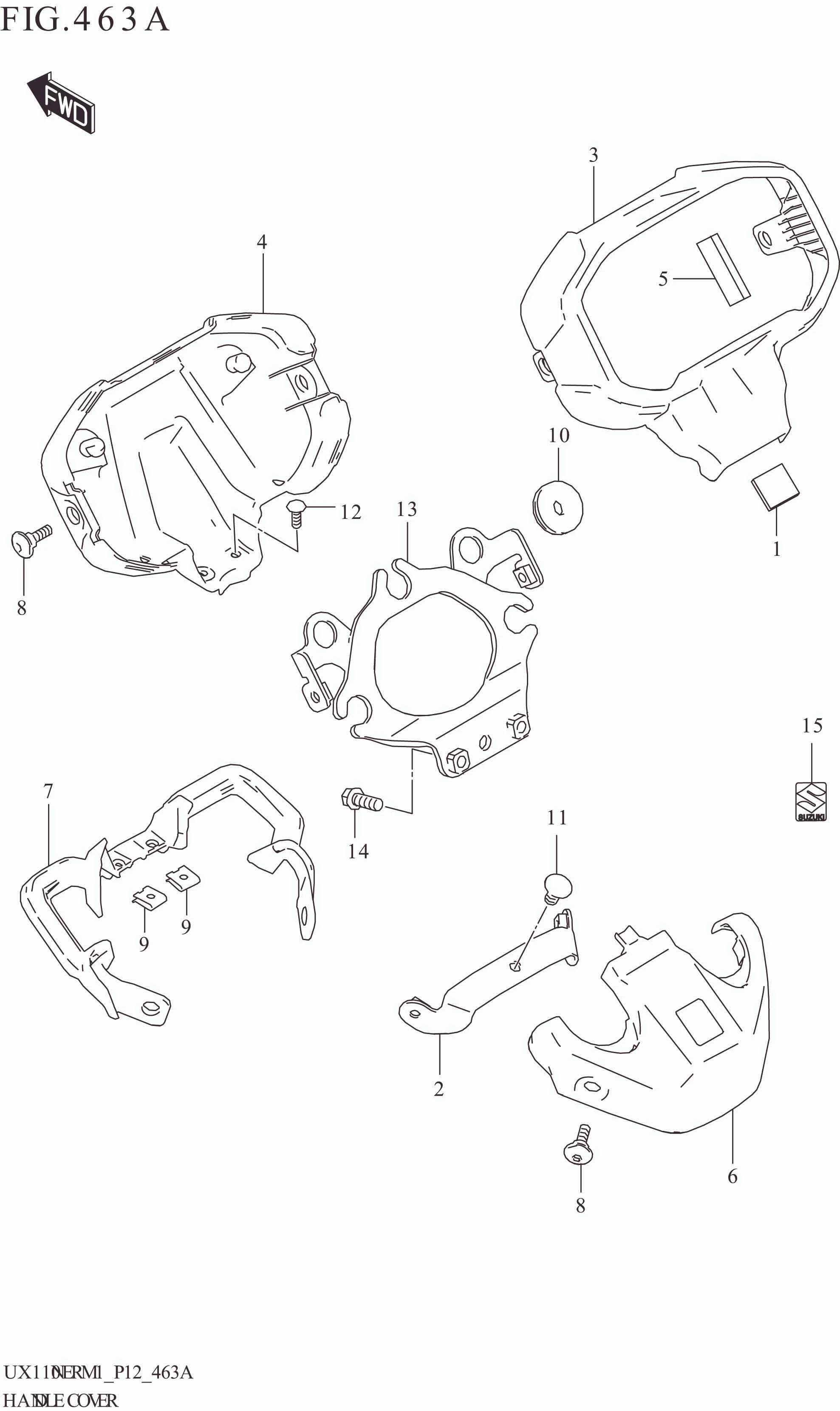

FIG. 463A HANDLE COVER

FIG. 463A HANDLE COVER
No No. Part Description Qty Price Per Pcs Remarks
1 48161-27J00-000 CUSHION (20X15X1.0) 1 Rp8.000
2 56310-49K20-000 BRACKET,HANDLE COVER 1 Rp8.000
3 56311-49K20-000 COVER,METER UPPER 1 Rp13.000
4 56312-49K20-000 COVER,METER LOWER 1 Rp14.000
5 56313-49K20-000 CUSHION,METER COVER UPPER 4 Rp3.500
6 56321-49K20-000 COVER,HANDLE REAR 1 Rp12.000
7 56322-49K20-000 GARNISH,HANDLE COVER 1 Rp10.000
8 09139-05504-000 SCREW (5X18) 4 Rp23.000
9 09148-04019-000 NUT 2 Rp6.500
10 48169-12JA0-000
SUB: 09320-08018-000		 CUSHION (8X26X7) 2 Rp15.000
11 02142-0612A-000 SCREW 1 Rp4.000
12 03541-0412A-000 SCREW 2 Rp3.500
13 51860-49K00-000 BRACKET,METER 1 Rp48.000
14 01547-0616A-000 BOLT 2 Rp6.500
15 68281-12K00-000 EMBLEM,S 1 Rp10.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
