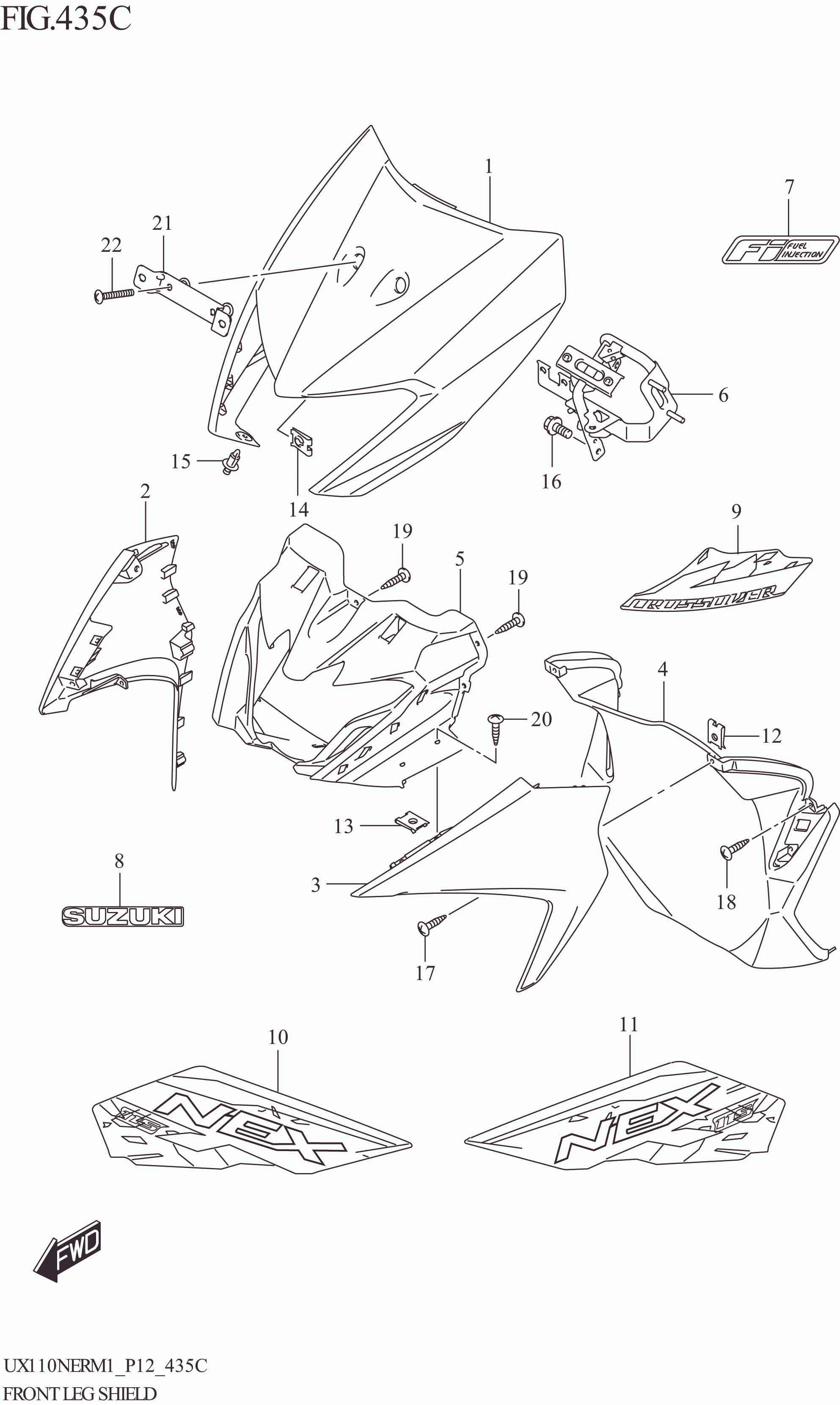

FIG. 435C FRONT LEG SHIELD

FIG. 435C FRONT LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 48111-49K00-291 SHIELD,LEG FRONT (BLACK) 1 Rp202.500
2-1 48112-49K00-291 SHIELD,LEG SIDE,RH (BLACK) 1 Rp104.500
2-2 48112-49K00-YZE SHIELD,LEG SIDE,R (RED) 1 Rp100.500
3-1 48113-49K00-291 SHIELD,LEG SIDE,LH (BLACK) 1 Rp104.500
3-2 48113-49K00-YZE SHIELD,LEG SIDE,L (RED) 1 Rp100.500
4 48114-49K00-000 SHIELD,LEG FRONT LOWER 1 Rp106.500
5 48115-49K00-000 COVER,HEADLAMP 1 Rp76.000
6 48150-49K00-000 BRACE,LEG SHIELD 1 Rp78.000
7 68281-22J01-ANN EMBLEM,FI (SILVER,GRAY) 1 Rp3.500
8 68641-49K00-BBT EMBLEM,"SUZUKI" (GRAY,BLACK) 1 Rp2.000
9-1 68645-49K30-291 TAPE,LEG FRONT UPPER (BLACK) 1 Rp7.500
9-2 68645-49K30-APM TAPE,LEG FRONT UPPER (RED,BLACK) 1 Rp7.500
10-2 68647-49K40-APM TAPE,LEG SIDE,R (RED,BLACK) 1 Rp26.000
10-1 68647-49K40-291 TAPE,LEG SIDE,R (BLACK) 1 Rp26.000
11-1 68657-49K40-291 TAPE,LEG SIDE,L (BLACK) 1 Rp26.000
11-2 68657-49K40-APM TAPE,LEG SIDE,L (RED,BLACK) 1 Rp26.000
12 09148-04019-000 NUT 4 Rp6.500
13 09148-04019-000 NUT 4 Rp6.500
14 09148-04019-000 NUT 2 Rp6.500
15 09409-06341-000 CLIP (5.9X20.5) 2 Rp4.000
16 01550-0612A-000 BOLT 2 Rp3.500
17 03541-0416A-000 SCREW 2 Rp3.500
18 03541-0416A-000 SCREW 2 Rp3.500
19 03541-0416A-000 SCREW 5 Rp3.500
20 03541-0416B-000 SCREW 4 Rp4.500
21 48190-49K00-000 PLATE,FR LICENSE 1 Rp20.500
22 02142-0635A-000 SCREW 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
