New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 072 FRONT SUSPENSIONFIG. 073 FRONT STABILIZERFIG. 074 FRONT AXLE(RHD)FIG. 075 WHEEL HUB PIPINGFIG. 076 REAR SUSPENSIONFIG. 077 AXLE HOUSING(RHD)FIG. 078 REAR AXLEFIG. 079 ROAD WHEEL/TIRE (W_ALM_WL:N/TPMS)FIG. 080 STEERING WHEEL(W/CRUISE:N/SPEED LIMITER)FIG. 081 STEERING COLUMN(RHD)FIG. 082 STEERING UNIT (RHD)FIG. 083 PEDAL/PEDAL BRACKET (RHD:5MT)FIG. 084 PEDAL/PEDAL BRACKET (RHD:4AT)FIG. 085 BRAKE MASTER CYLINDER (RHD)FIG. 086 FRONT BRAKE PIPING (RHD)FIG. 087 REAR BRAKE PIPINGFIG. 088 ANTI LOCK BRAKE SYSTEMFIG. 089 FRONT WHEEL BRAKEFIG. 090 REAR WHEEL BRAKEFIG. 091 PARKING BRAKE

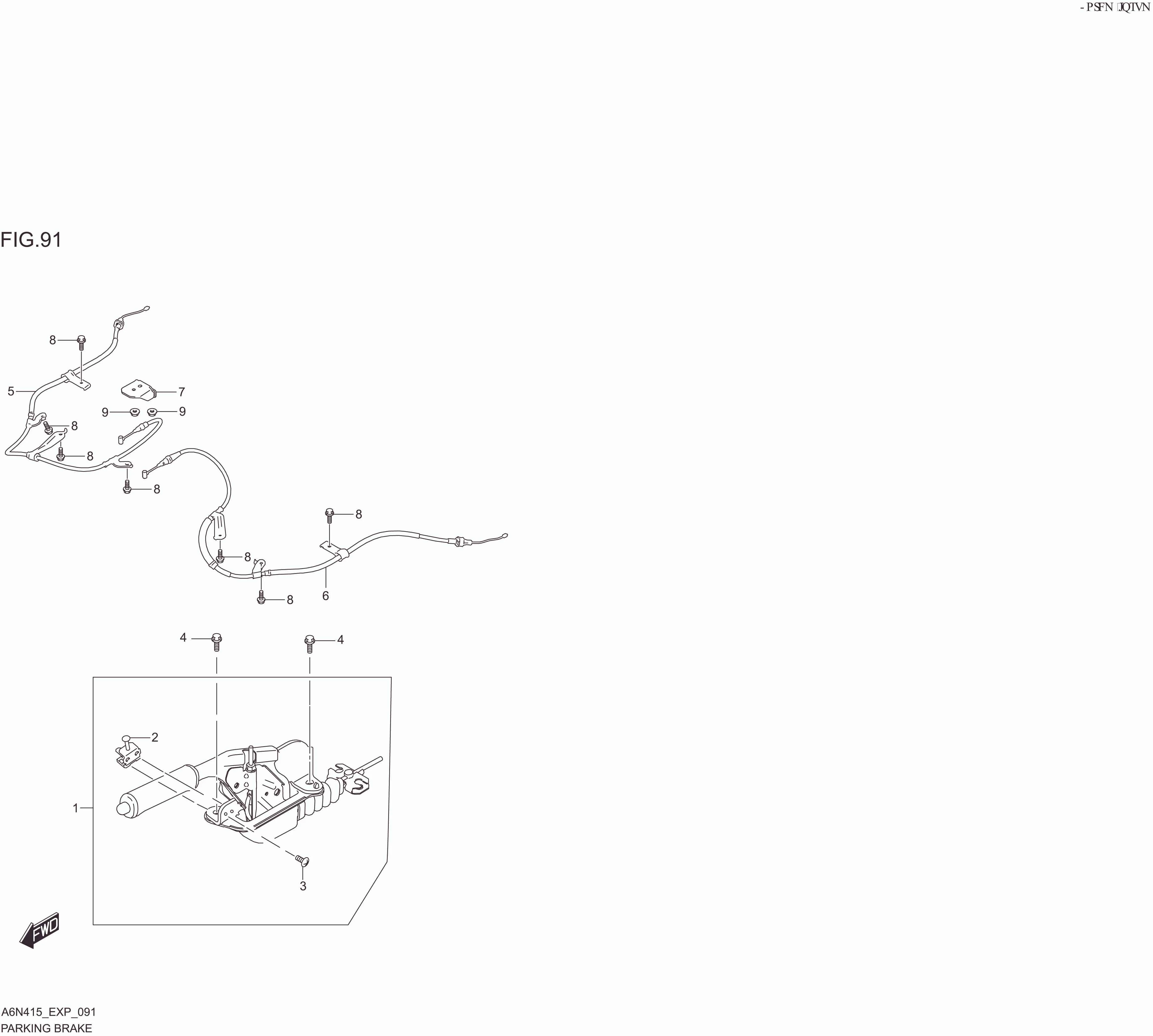

FIG. 091 PARKING BRAKE

FIG. 091 PARKING BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 54100M80T10-C48 LEVER ASSY,PARKING BRAKE (CHROME/BLACK) 1 Rp705.500
2 37940M62S00-000 .SWITCH ASSY, PARKING BRAKE 1 Rp21.500
3 54115-76G00-000 .SCREW 1 Rp16.000
4 54181-78R00-000 BOLT, PARKING BRAKE LEVER 2 Rp18.500
5 54410M80T00-000 CABLE, PARKING BRAKE RH 1 Rp343.500
6 54420M80T00-000 CABLE, PARKING BRAKE LH 1 Rp423.000
7 54495M73T00-000 BRACKET, PARKING CABLE 1 Rp41.000
8 01551-0816C-000 BOLT 7 Rp13.500
9 08316-1008A-000 NUT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
