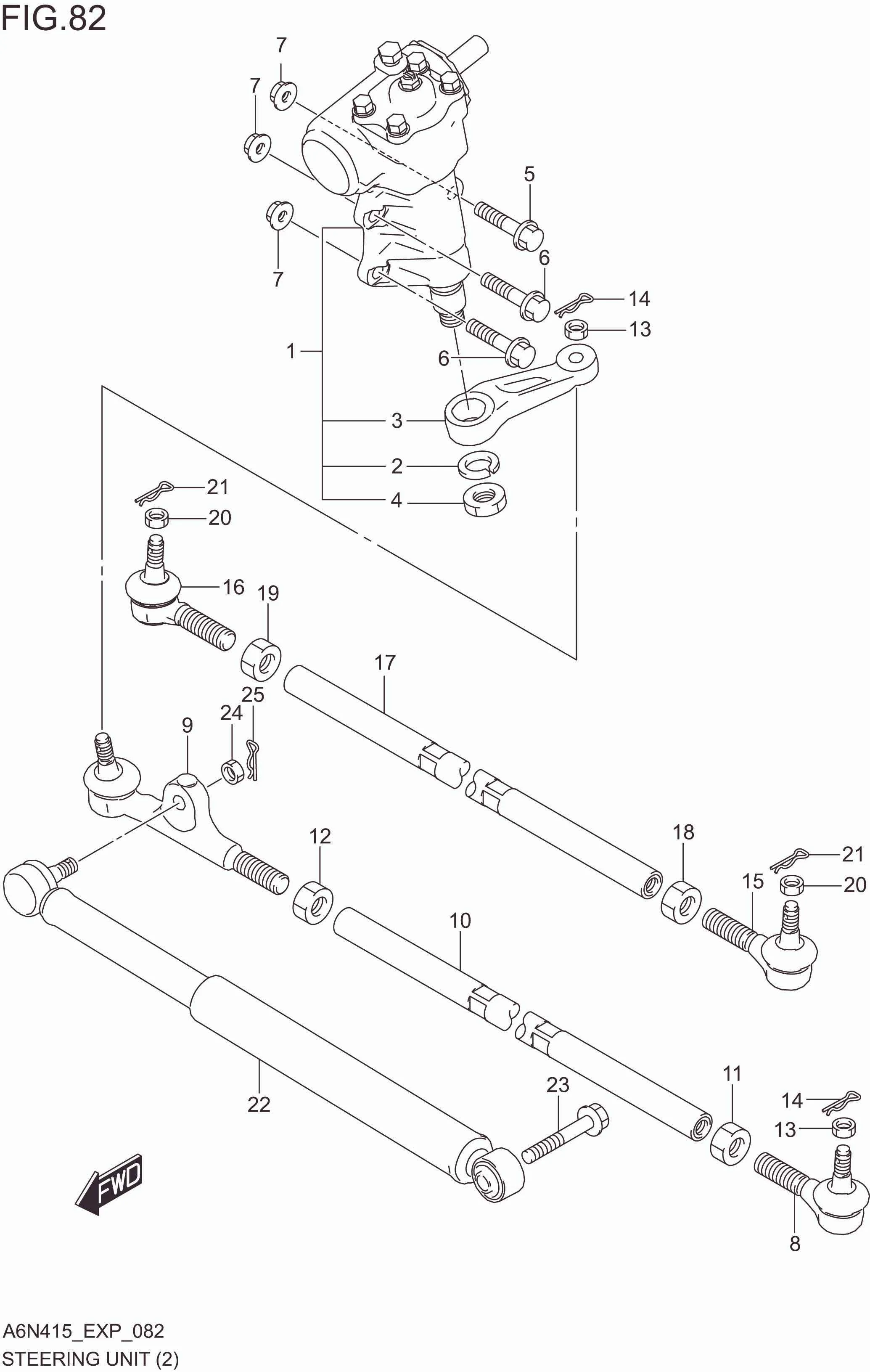

FIG. 082 STEERING UNIT (RHD)

FIG. 082 STEERING UNIT (RHD)
No No. Part Description Qty Price Per Pcs Remarks
1 48600M80T00-000 BOX ASSY,STEERING GEAR 1 Rp9.645.500
2 48644-80010-000 .WASHER,PITMAN ARM LOCK 1 Rp41.000
3 48671M80T00-000 .ARM,PITMAN 1 Rp266.000
4 48674-63240-000 .NUT 1 Rp74.500
5 09100-12128-000 BOLT,STRG GEAR BOX NO.1 1 Rp42.000
6 09100-12129-000 BOLT,STRG GEAR BOX NO.2 2 Rp48.000
7 41616M76M00-000 NUT,STRG GEAR BOX 3 Rp15.000
8 48810M80T00-000 END,ROD 1 Rp554.500
9 48820M80T10-000 END,ROD 1 Rp554.500
10 48931M80T10-000 ROD,STRG DRAG 1 Rp500.500
11 09140-16022-000 NUT 1 Rp23.500
12 09140-16023-000 NUT 1 Rp24.500
13 09140-12039-000 NUT 2 Rp6.500
14 09385-12002-000 CLIP 2 Rp4.500
15 48810M80T00-000 END ,STRG TIE-ROD 1 Rp554.500
16 48820M80T00-000 END ,STRG TIE-ROD 1 Rp309.500
17 48831M80T10-000 TIE-ROD,STEERING 1 Rp683.000
18 09140-16022-000 NUT 1 Rp23.500
19 09140-16023-000 NUT 1 Rp24.500
20 09140-12039-000 NUT,TIE-ROD END STUD 2 Rp6.500
21 09385-12002-000 CLIP,TIE-ROD END 2 Rp4.500
22 48730M80T00-000 DAMPER ASSY,STRG 1 Rp2.204.500
23 09103M12051-000 BOLT,STRG DAMPER 1 Rp10.500
24 09140-12039-000 NUT,STRG DAMPER END STUD 1 Rp6.500
25 09385-12002-000 CLIP,TIE-ROD END 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
