New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 072 FRONT SUSPENSIONFIG. 073 FRONT STABILIZERFIG. 074 FRONT AXLE(RHD)FIG. 075 WHEEL HUB PIPINGFIG. 076 REAR SUSPENSIONFIG. 077 AXLE HOUSING(RHD)FIG. 078 REAR AXLEFIG. 079 ROAD WHEEL/TIRE (W_ALM_WL:N/TPMS)FIG. 080 STEERING WHEEL(W/CRUISE:N/SPEED LIMITER)FIG. 081 STEERING COLUMN(RHD)FIG. 082 STEERING UNIT (RHD)FIG. 083 PEDAL/PEDAL BRACKET (RHD:5MT)FIG. 084 PEDAL/PEDAL BRACKET (RHD:4AT)FIG. 085 BRAKE MASTER CYLINDER (RHD)FIG. 086 FRONT BRAKE PIPING (RHD)FIG. 087 REAR BRAKE PIPINGFIG. 088 ANTI LOCK BRAKE SYSTEMFIG. 089 FRONT WHEEL BRAKEFIG. 090 REAR WHEEL BRAKEFIG. 091 PARKING BRAKE

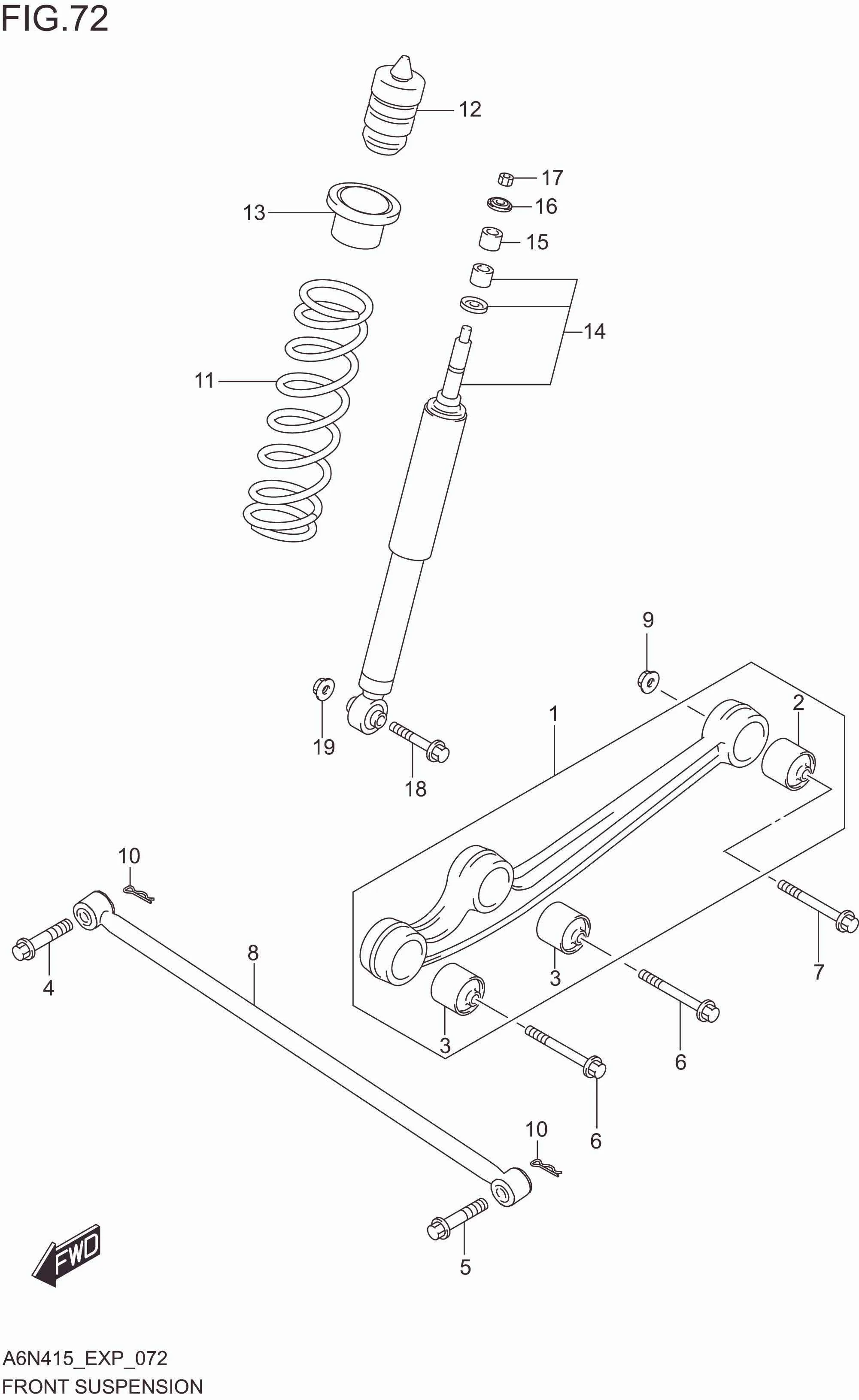

FIG. 072 FRONT SUSPENSION

FIG. 072 FRONT SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 45200M80T00-000 ARM ASSY,FR LEADING 2 Rp576.500
2 46213M80T00-000 .BUSHING,TRAILING ARM BODYSIDE 2 Rp134.000
3 46283M80T00-000 .BUSHING,LEADING ARM AXLE SIDE 4 Rp114.000
4 45215-77R01-000 BOLT,FR LATERAL ROD 1 Rp151.000
5 45214-77R01-000 BOLT,FR LATERAL ROD BODY SIDE 1 Rp250.500
6 45216-77R01-000 BOLT,ARM AXLE SIDE 4 Rp95.000
7 45217-77R01-000 BOLT,ARM BODY SIDE 2 Rp86.000
8 45300M80T00-000 ROD ASSY,FR LATERAL 1 Rp460.000
9 41616M76M00-000 NUT (M12) 2 Rp15.000
10 09385-12002-000 PIN,SNAP 2 Rp4.500
11 41111M80T00-000 SPRING,FR COIL 2 Rp439.000
12 42111M80T00-000 STOPPER,FR BUMP 2 Rp102.500
13 41341-66H00-000 SEAT,RR SPRING UPR 2 Rp118.500
14 41600M80T00-000 ABSORBER,FR SHOCK 2 Rp924.500
15 41611-77R00-000 BUSHING,SHOCK ABSORBER RUBBER 2 Rp102.000
16 41613M80T00-000 WASHER,SHOCK ABSORBER 2 Rp11.500
17 41814M80T00-000 NUT,RR SHOCK ABSORBER UPR 2 Rp8.000
18 09103M12059-000 BOLT (12X50) 2 Rp41.000
19 41616M76M00-000 NUT (M12) 2 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
