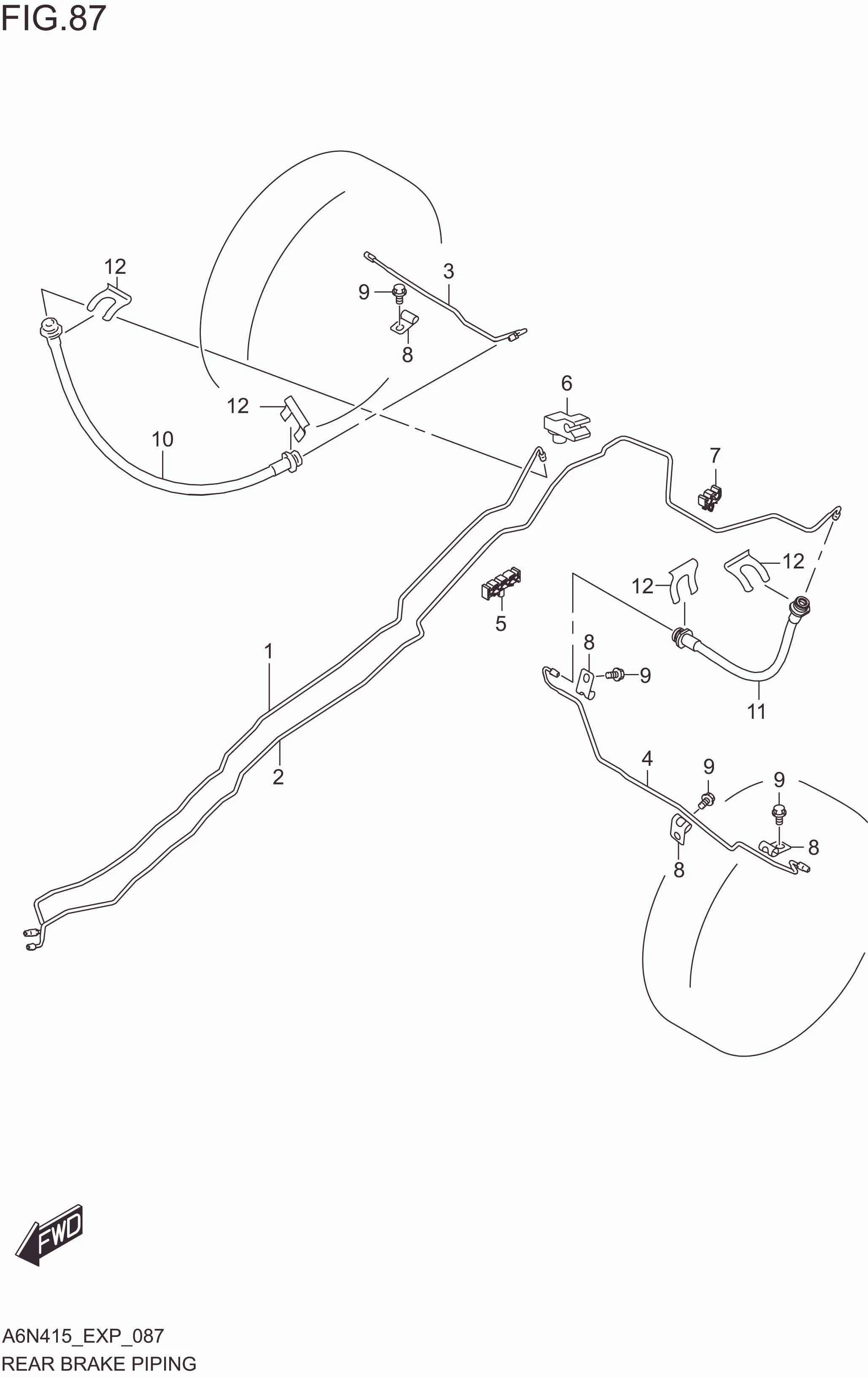

FIG. 087 REAR BRAKE PIPING

FIG. 087 REAR BRAKE PIPING
No No. Part Description Qty Price Per Pcs Remarks
1 51470M80T00-000 PIPE,BODY HOSE TO RR BK HOSE RH 1 Rp200.000
2 51480M80T00-000 PIPE,BODY HOSE TO RR BK HOSE LH 1 Rp239.000
3 51510M73T00-000 PIPE,RR BK HOSE TO RR W/C RH 1 Rp61.000
4 51520M73T00-000 PIPE,RR BK HOSE TO RR W/C LH 1 Rp87.000
5 51761M80T00-000 CLAMP,BK PIPE DASH 4 1 Rp4.000
6 51761M73T10-000 CLAMP,BK PIPE FRAME SINGLE 1 Rp4.500
7 51761M73T20-000 CLAMP,BK PIPE FRAME DOUBLE 1 Rp3.500
8 51754M80T00-000 CLAMP (ID:8) 4 Rp5.500
9 02162-0616A-000 SCREW (6X16) 4 Rp3.000
10 51560M73T00-000 HOSE,RR BRAKE FLEXIBLE RH 1 Rp130.500
11 51570M73T00-000 HOSE,RR BRAKE FLEXIBLE LH 1 Rp100.000
12 09383M13005-000 E-RING 4 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
