New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 072 FRONT SUSPENSIONFIG. 073 FRONT STABILIZERFIG. 074 FRONT AXLE(RHD)FIG. 075 WHEEL HUB PIPINGFIG. 076 REAR SUSPENSIONFIG. 077 AXLE HOUSING(RHD)FIG. 078 REAR AXLEFIG. 079 ROAD WHEEL/TIRE (W_ALM_WL:N/TPMS)FIG. 080 STEERING WHEEL(W/CRUISE:N/SPEED LIMITER)FIG. 081 STEERING COLUMN(RHD)FIG. 082 STEERING UNIT (RHD)FIG. 083 PEDAL/PEDAL BRACKET (RHD:5MT)FIG. 084 PEDAL/PEDAL BRACKET (RHD:4AT)FIG. 085 BRAKE MASTER CYLINDER (RHD)FIG. 086 FRONT BRAKE PIPING (RHD)FIG. 087 REAR BRAKE PIPINGFIG. 088 ANTI LOCK BRAKE SYSTEMFIG. 089 FRONT WHEEL BRAKEFIG. 090 REAR WHEEL BRAKEFIG. 091 PARKING BRAKE

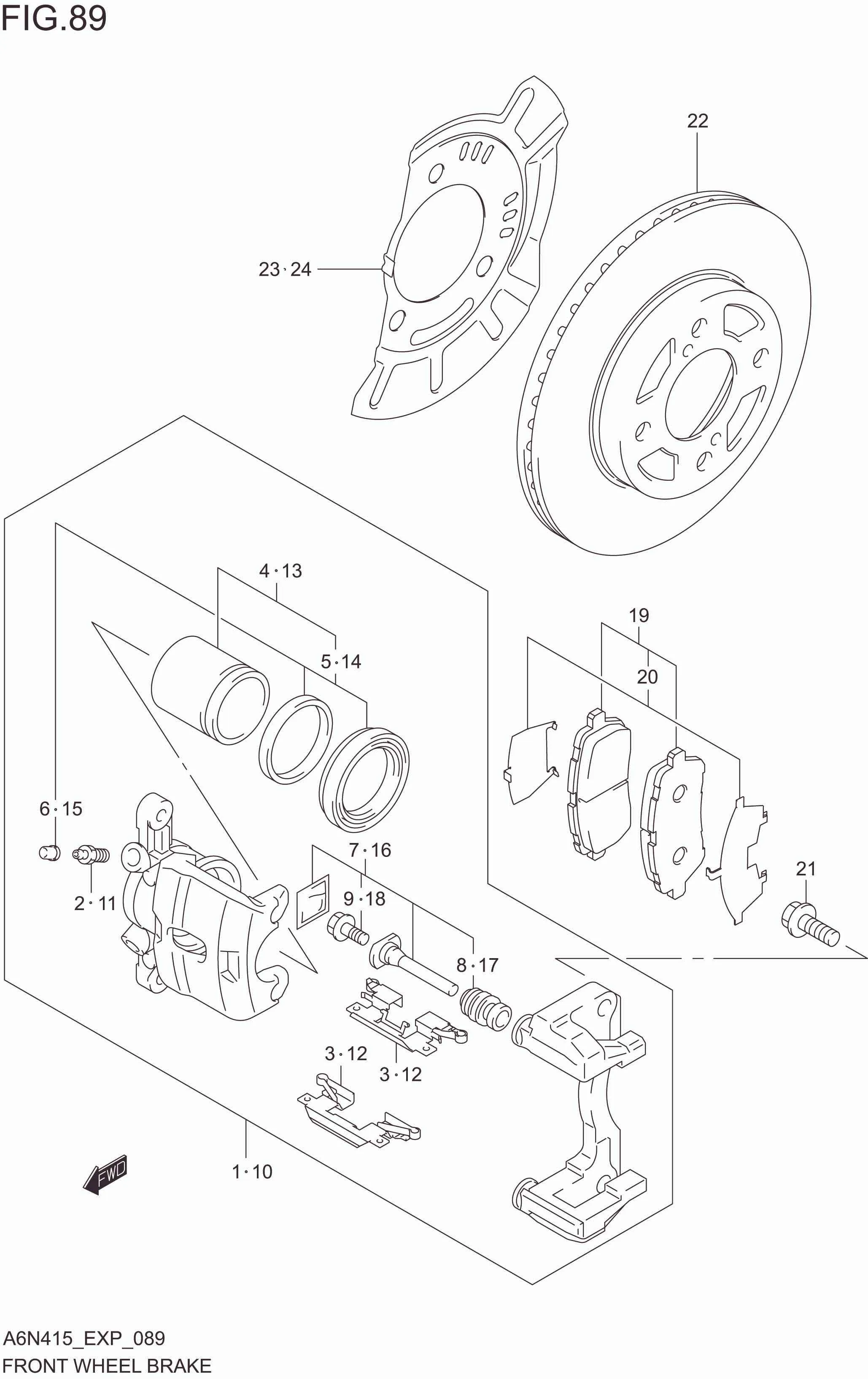

FIG. 089 FRONT WHEEL BRAKE

FIG. 089 FRONT WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 55101M80T00-000 CALIPER ASSY, FRONT BRAKE RH 1 Rp3.058.000
2 55151M55K00-000 .PLUG, BLEEDER 1 Rp11.500
3 55234M80T00-000 .CLIP 2 Rp72.500
4 55830M80T00-000 .PISTON/SEAL SET 1 Rp143.500
5 55840M80T00-000 ..SEAL SET 1 Rp61.000
6 55156M66310-000 ...CAP, BLEEDER PLUG 1 Rp23.500
7 55850M80T00-000 .PIN/BOOT, SLIDING 1 Rp139.000
8 55201M60M00-000 ..BOOT, PIN 2 Rp23.000
9 55206M76G00-000 ..BOLT, PIN 2 Rp21.000
10 55102M80T00-000 CALIPER ASSY, FRONT BRAKE LH 1 Rp3.058.000
11 55151M55K00-000 .PLUG, BLEEDER 1 Rp11.500
12 55234M80T00-000 .CLIP 2 Rp72.500
13 55830M80T00-000 .PISTON/SEAL SET 1 Rp143.500
14 55840M80T00-000 ..SEAL SET 1 Rp61.000
15 55156M66310-000 ...CAP, BLEEDER PLUG 1 Rp23.500
16 55850M80T00-000 .PIN SET, SLIDING 1 Rp139.000
17 55201M60M00-000 ..BOOT, PIN 2 Rp23.000
18 55206M76G00-000 ..BOLT, PIN 2 Rp21.000
19 55810M80T00-000 PAD SET 1 Rp1.255.500
20 55820M80T00-000 .SIM SET 1 Rp148.000
21 55164M74L00-000 BOLT, BRAKE CALIPER 4 Rp17.000
22 55211M80T00-000 DISC, FRONT BRAKE 2 Rp851.000
23 55301M73T00-000 COVER, BRAKE DISC DUST RH 1 Rp83.500
24 55302M73T00-000 COVER, BRAKE DISC DUST LH 1 Rp83.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
