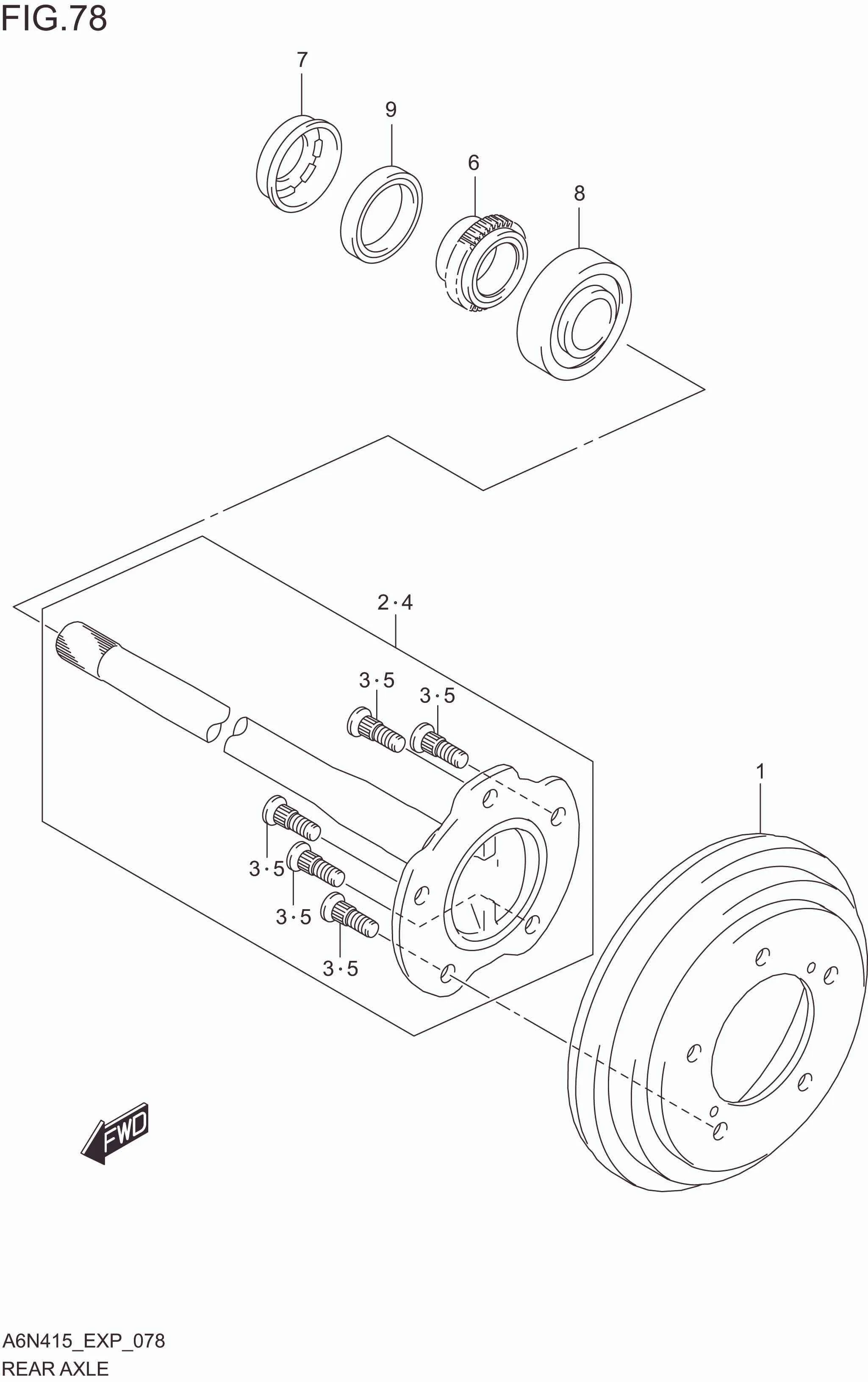

FIG. 078 REAR AXLE

FIG. 078 REAR AXLE
No No. Part Description Qty Price Per Pcs Remarks
1 43511M73T00-000 DRUM,BRAKE RR 2 Rp921.500
2 44029M80T01-000 SHAFT SET,RR AXLE,RH 1 Rp1.634.000
3 43423M62S00-000 .BOLT (12X38) 5 Rp19.000
4 44028M80T01-000 SHAFT SET,RR AXLE,LH 1 Rp1.634.000
5 43423M62S00-000 .BOLT (12X38) 5 Rp19.000
6 43485-76J00-000 RING,RR WHEEL BEARING RETAINER 2 Rp479.000
7 43588M78L00-000 PROTECTOR,OIL SEAL 2 Rp5.500
8 09269-35009-000 BEARING (35X72X22) 2 Rp573.500
9 43491M82M00-000 SEAL,REAR SHAFT OIL 2 Rp106.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
