New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 072 FRONT SUSPENSIONFIG. 073 FRONT STABILIZERFIG. 074 FRONT AXLE(RHD)FIG. 075 WHEEL HUB PIPINGFIG. 076 REAR SUSPENSIONFIG. 077 AXLE HOUSING(RHD)FIG. 078 REAR AXLEFIG. 079 ROAD WHEEL/TIRE (W_ALM_WL:N/TPMS)FIG. 080 STEERING WHEEL(W/CRUISE:N/SPEED LIMITER)FIG. 081 STEERING COLUMN(RHD)FIG. 082 STEERING UNIT (RHD)FIG. 083 PEDAL/PEDAL BRACKET (RHD:5MT)FIG. 084 PEDAL/PEDAL BRACKET (RHD:4AT)FIG. 085 BRAKE MASTER CYLINDER (RHD)FIG. 086 FRONT BRAKE PIPING (RHD)FIG. 087 REAR BRAKE PIPINGFIG. 088 ANTI LOCK BRAKE SYSTEMFIG. 089 FRONT WHEEL BRAKEFIG. 090 REAR WHEEL BRAKEFIG. 091 PARKING BRAKE

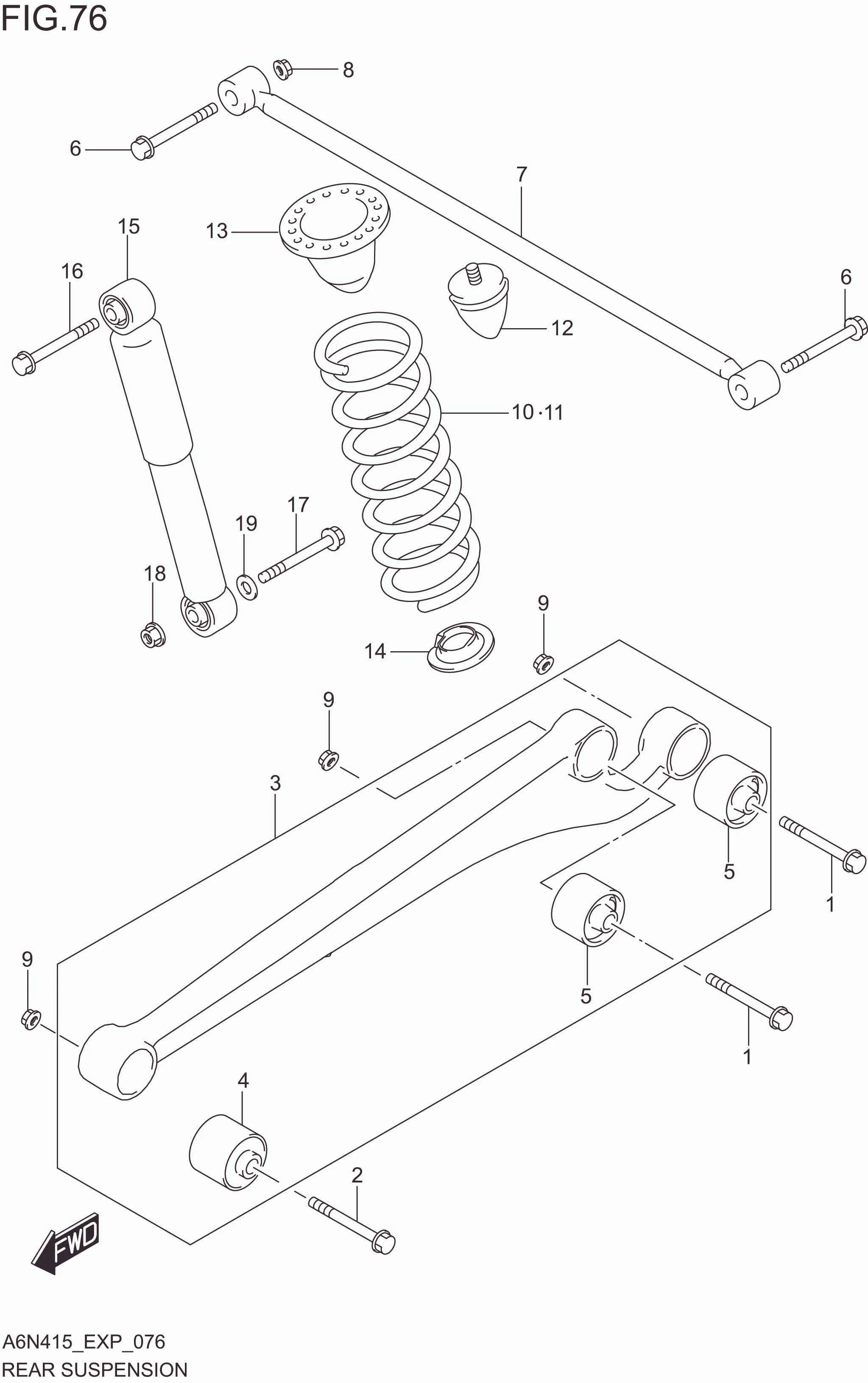

FIG. 076 REAR SUSPENSION

FIG. 076 REAR SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 45216-77R01-000 BOLT,ARM AXLE SIDE 4 Rp95.000
2 45217-77R01-000 BOLT,ARM BODY SIDE 2 Rp86.000
3 46200M80T00-000 ARM ASSY,RR TRAILING 2 Rp840.000
4 46213M80T00-000 .BUSHING,TRAILING ARM BODYSIDE 2 Rp134.000
5 46282M80T00-000 .BUSHING,TRAILING ARM AXLESIDE 4 Rp114.000
6 46215-77R01-000 BOLT,RR LATERAL ROD 2 Rp122.500
7 47300M80T00-000 ROD ASSY,RR LATERAL 1 Rp405.000
8 08316-1012A-000 NUT (M12) 1 Rp6.500
9 08316-1012A-000 NUT (M12) 6 Rp6.500
10 41311M80T40-000 SPRING,RR COIL,LH 1 Rp380.500
11 41311M80T20-000 SPRING,RR COIL,RH 1 Rp380.500
12 42110-60A10-000 STOPPER,BUMP 2 Rp266.000
13 41211-82CB0-000 SEAT,RR COIL SPRING 2 Rp187.500
14 41312-64P00-000 SEAT,RR SPRING LWR 2 Rp79.000
15 41700M80T00-000 ABSORBER ASSY,RR SHOCK 2 Rp1.237.500
16 41841M67L00-000 BOLT 2 Rp26.500
17 09103-12137-000 BOLT 2 Rp65.500
18 41616M76M00-000 NUT (M12) 2 Rp15.000
19 09164-12033-000 WASHER,REAR SHK ABS LOWER 2 Rp47.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
