New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 072 FRONT SUSPENSIONFIG. 073 FRONT STABILIZERFIG. 074 FRONT AXLE(RHD)FIG. 075 WHEEL HUB PIPINGFIG. 076 REAR SUSPENSIONFIG. 077 AXLE HOUSING(RHD)FIG. 078 REAR AXLEFIG. 079 ROAD WHEEL/TIRE (W_ALM_WL:N/TPMS)FIG. 080 STEERING WHEEL(W/CRUISE:N/SPEED LIMITER)FIG. 081 STEERING COLUMN(RHD)FIG. 082 STEERING UNIT (RHD)FIG. 083 PEDAL/PEDAL BRACKET (RHD:5MT)FIG. 084 PEDAL/PEDAL BRACKET (RHD:4AT)FIG. 085 BRAKE MASTER CYLINDER (RHD)FIG. 086 FRONT BRAKE PIPING (RHD)FIG. 087 REAR BRAKE PIPINGFIG. 088 ANTI LOCK BRAKE SYSTEMFIG. 089 FRONT WHEEL BRAKEFIG. 090 REAR WHEEL BRAKEFIG. 091 PARKING BRAKE

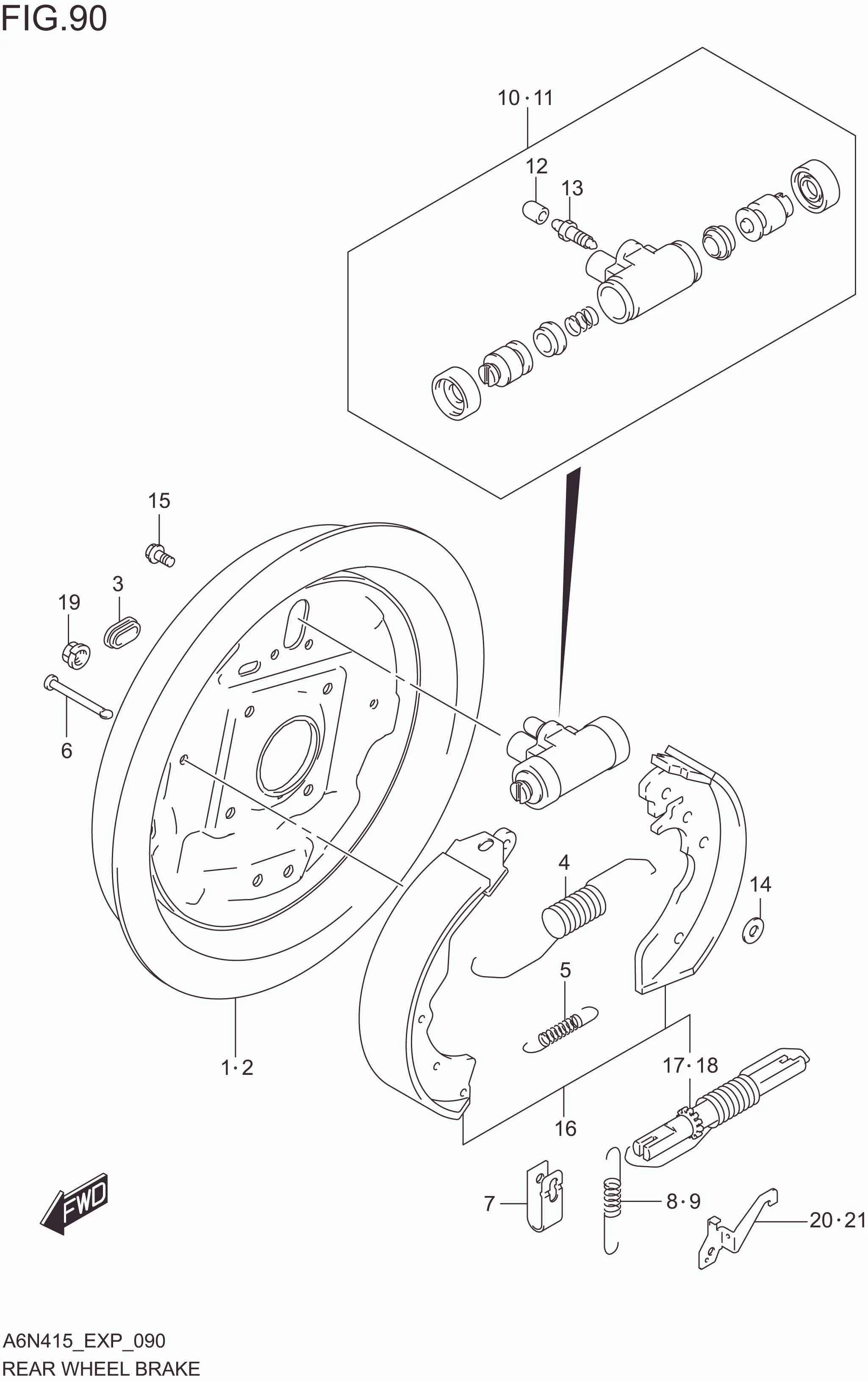

FIG. 090 REAR WHEEL BRAKE

FIG. 090 REAR WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 53101M73T00-000 PLATE, RR BRAKE RH 1 Rp836.500
2 53102M73T00-000 PLATE, RR BRAKE LH 1 Rp836.500
3 53141-70A00-000 PLUG 1 Rp6.500
4 53231M75J00-000 SPRING, SHOE RETURN UPR 2 Rp11.500
5 53231M78L00-000 SPRING, SHOE RETURN LWR 2 Rp7.000
6 53241M78L00-000 PIN 4 Rp6.000
7 52243-70AA0-000 SHOE SET SPRING 4 Rp38.000
8 53792M78L00-000 ADJUSTER LEVER SPRING LH 4 Rp8.000
9 53791M78L00-000 ADJUSTER LEVER SPRING RH 2 Rp8.000
10 53401M73T00-000 CYLINDER ASSY, REAR WHEEL RH 1 Rp387.000
11 53402M73T00-000 CYLINDER ASSY, REAR WHEEL LH 1 Rp387.000
12 55156M73T00-000 .CAP, BLEEDER 2 Rp3.000
13 55473M73T00-000 .BLEEDER 2 Rp16.000
14 DISCONTINUE
SUB: 08321B0106BN000		 WASHER 4 -
15 52476M68K00-000 SCREW, MOUNTING 2 Rp10.500
16 53200M73T00-000 SHOE SET 1 Rp681.500
17 53860M78L00-000 .SPRING/ROD ASSY, LH 1 Rp207.000
18 53810M78L00-000 .SPRING/ROD ASSY, RH 1 Rp207.000
19 09159-08075-000 NUT,REAR BRAKE 8 Rp14.000
20 53781M78L00-000 ADJUSTER, LEVER RH 1 Rp24.500
21 53782M78L00-000 ADJUSTER, LEVER LH 1 Rp24.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
