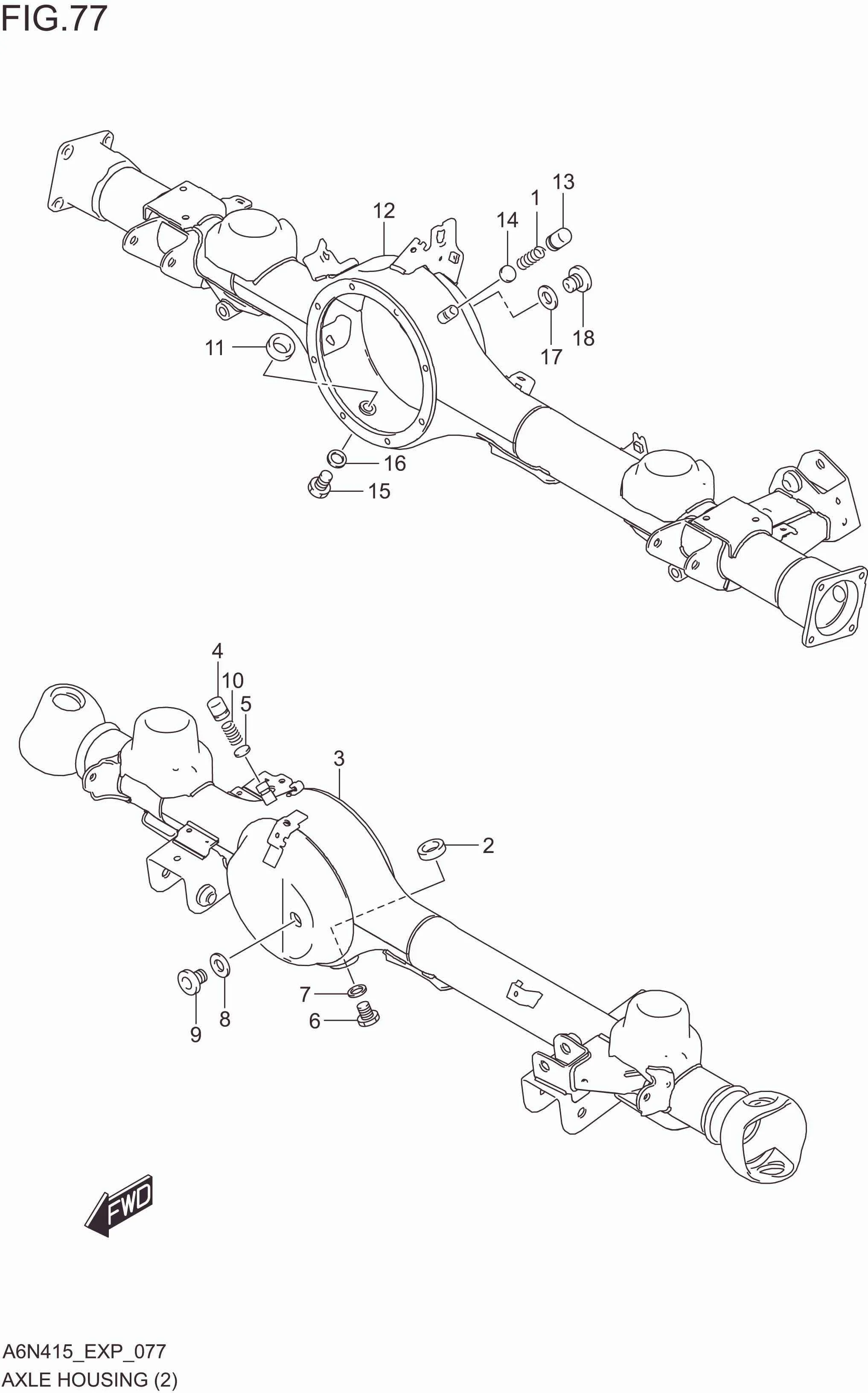

FIG. 077 AXLE HOUSING(RHD)

FIG. 077 AXLE HOUSING(RHD)
No No. Part Description Qty Price Per Pcs Remarks
1 09440-12004-000 SPRING (L:22) 1 Rp14.000
2 24861M76M00-000 MAGNET 1 Rp31.000
3 45500M80T00-000 HOUSING,FR AXLE 1 Rp5.696.500
4 46541-52002-000 CAP,BREATHER 1 Rp32.000
5 46542-52001-000 VALVE,RR AXLE HOUSING BREATHER 1 Rp15.000
6 46543-81P50-000 PLUG,RR AXLE HOUSING DRAIN 1 Rp39.500
7 09168-12002-000 GASKET (12.1X16.2X3.7) 1 Rp10.000
8 09168-20002-000 GASKET (20.5X30X1.5) 1 Rp17.000
9 46543M80T00-000 PLUG (M20) 1 Rp32.500
10 09440-12004-000 SPRING (L:22) 1 Rp14.000
11 24861M76M00-000 MAGNET 1 Rp31.000
12 46510M80T00-000 HOUSING,RR AXLE 1 Rp5.696.500
13 46541-52002-000 CAP,BREATHER 1 Rp32.000
14 46542-52001-000 VALVE,RR AXLE HOUSING BREATHER 1 Rp15.000
15 46543-81P50-000 PLUG,RR AXLE HOUSING DRAIN 1 Rp39.500
16 09168-12002-000 GASKET (12.1X16.2X3.7) 1 Rp10.000
17 09168-20002-000 GASKET (20.5X30X1.5) 1 Rp17.000
18 46543M80T00-000 PLUG (M20) 1 Rp32.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
